nVent VSC1VV8C ERICO MOLD,CABLE TO VERT STL,45 DEG TAP DOWN VSC1VV8C

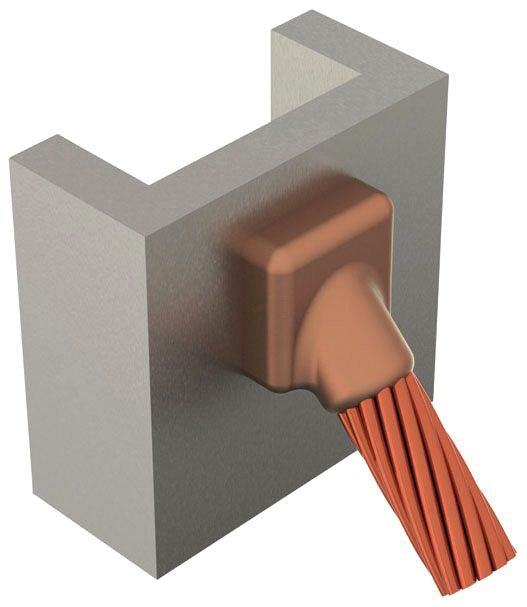

nVent ERICO CADWELD Weld Metal Mold, Type VS, is designed for connecting a two AWG concentric conductor to a steel pipe. This mold supports applications in facility electrical protection. It utilizes a graphite material to create a strong and lasting connection. The product features specifications for a pipe diameter between six inches to ten inches, accommodating a nominal conductor diameter of zero point two nine two inches.

• Forms a permanent, low resistance connection
• Provides a molecular bond
• Rated with the same current capacity as the conductor

The nVent ERICO CADWELD mold enables efficient installations without requiring external power sources. It is portable and easy to use, making it suitable for quick training of installers while ensuring all connections can be visually inspected.

• Manufacturer: nVent
• Manufacturer Part Number: VSC1VV8C

• Application: Facility Electrical Protection Applications
• Conductor Size: 2 AWG Concentric
• Connection Type: Cable to Steel Pipe
• Dimensions: 6-5/8 to 10-3/4 in OD
• Handle Clamp: B158/B160V/L160
• Material: Graphite
• Mold Price Key: C
• Specifications: 6 to 10 in Pipe, 0.292 in OD Nominal Conductor, 45 deg Vertical Tap Down
• Standards/Approvals: UL File No. KDER.E220029 | cUL File No. KDER7.E220029
• Type: Type VS
