nVent VBC2GW ERICO MOLD, CABLE TO VERT STL, VERT TAP DOWN

Product Description

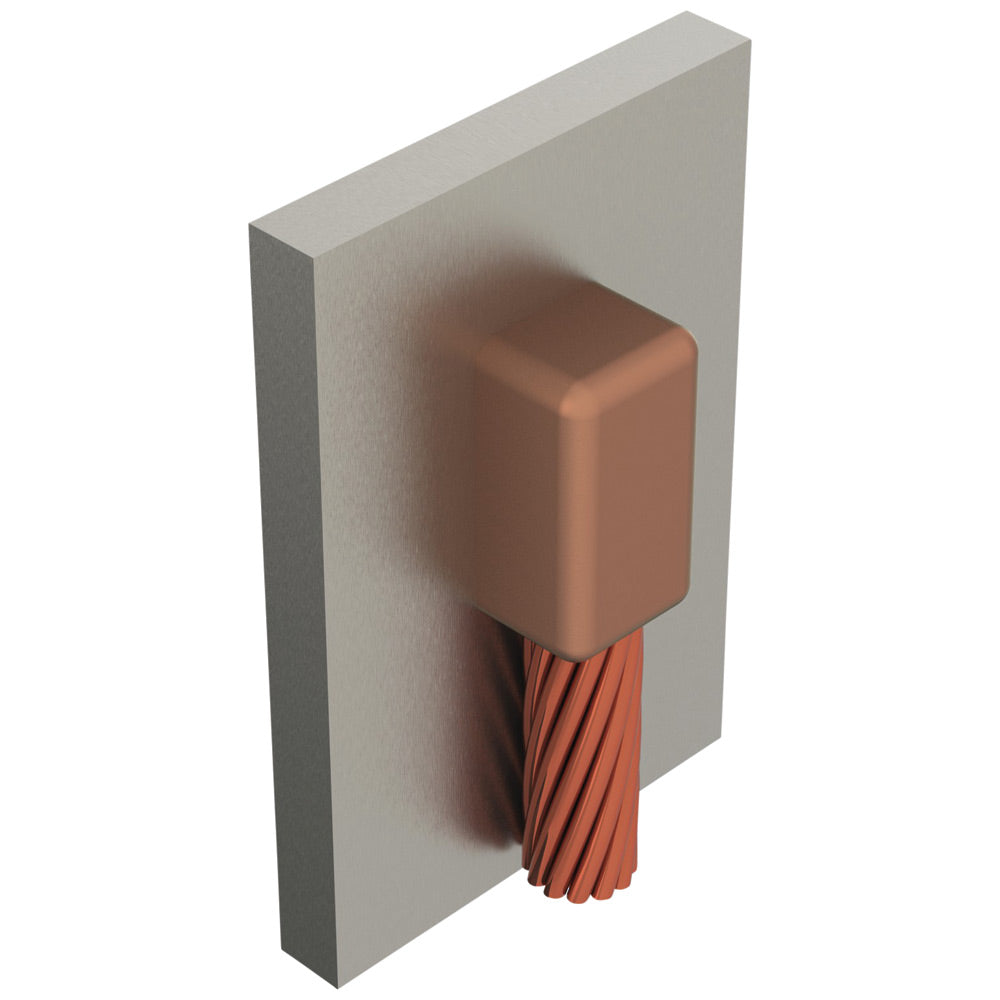

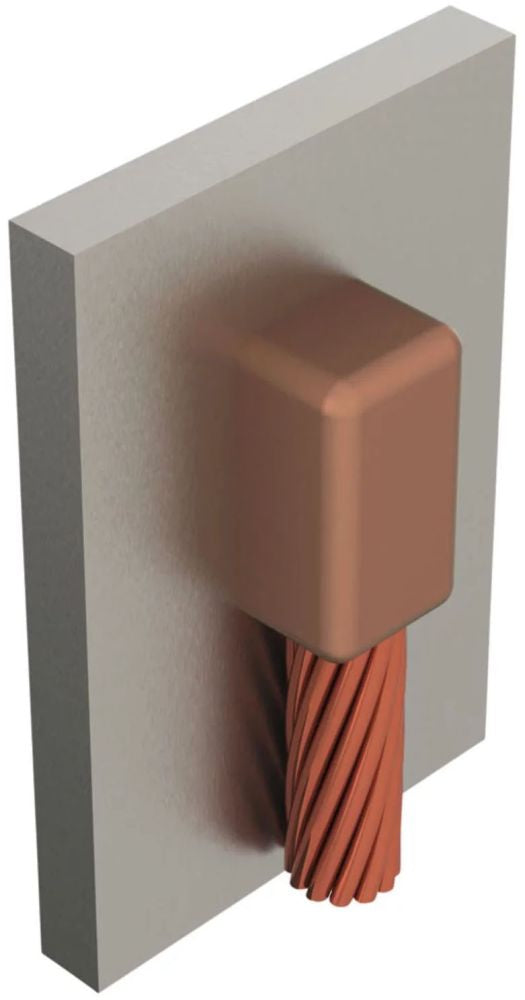

The nVent VBC2GW is a Weld Metal Mold designed for use with 2/0 AWG concentric conductors. It enables a cable connection to steel pipes or flat surfaces, forming a strong and permanent bond.

• Forms a permanent, low resistance connection
• Suitable for facility electrical protection applications
• Portable installation equipment requires no external power

Product Highlights

This mold allows for efficient installation and is easy to train installers. The connections made can be visually inspected for quality assurance.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: VBC2GW

Technical Specifications

• Application: Facility Electrical Protection Applications
• Conductor Size: 2/0 AWG Concentric
• Connection Type: Cable to Steel Pipe/Flat Surface
• Dimensions: 24 in OD
• Handle Clamp: B396/L160
• Material: Graphite
• Mold Price Key: C
• Specifications: 24 in Minimum Pipe, 0.418 in OD Nominal Conductor, Vertical Tap Down
• Standards/Approvals: UL File No. KDER.E220029|cUL File No. KDER7.E220029
• Type: Type VB
