Nvent tsgb1624 Telescoping Box Bracket Steel

Product Description

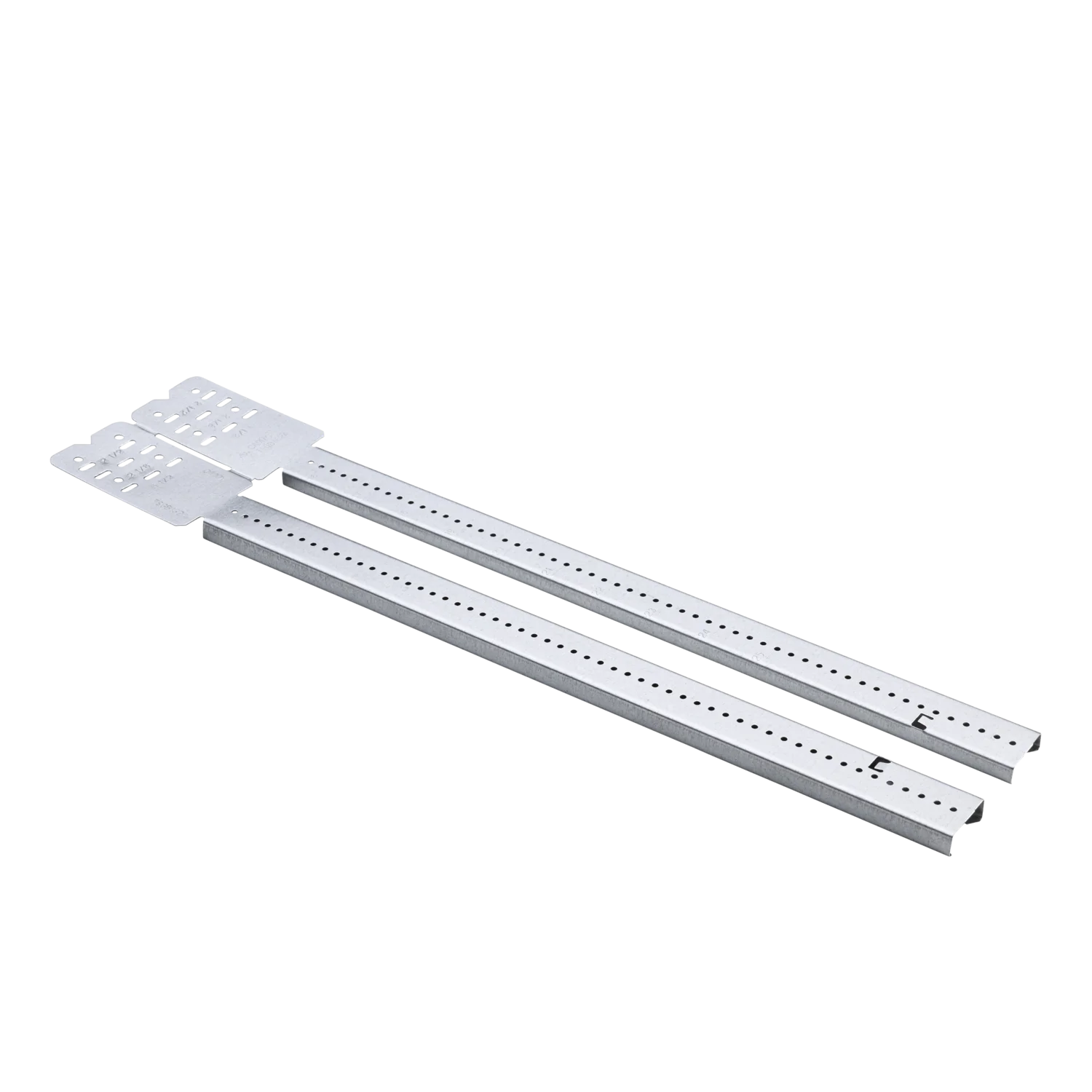

The NVENT tsgb1624 is a telescoping screw gun box bracket designed for mounting electrical boxes within stud wall framing. Constructed from pregalvanized steel, it adjusts to fit stud spacing from 15.75 inches to 25 inches, making it usable in both standard and non-standard framing layouts. The bracket supports electrical box depths of 1.5 inches, 2.125 inches, and 2.5 inches. It is suited for both new construction rough-in work and retrofit installations where existing drywall or wall finish is already in place. Licensed electricians and electrical contractors are the primary installers.

This bracket is appropriate for residential and light commercial stud wall applications. Its telescoping design removes the need for multiple fixed-size brackets across varying bay widths. The adjustable span and multi-depth compatibility make it a practical stock item for jobsites where framing dimensions vary or where retrofit box mounting is required without opening finished walls completely.

Key Features

• Telescoping design adjusts from 15.75 inches to 25 inches to fit varying stud spacing
• Compatible with electrical box depths of 1.5 inches, 2.125 inches, and 2.5 inches
• Pregalvanized steel construction for corrosion resistance in typical wall cavity environments
• Supports both new construction and retrofit installation methods
• Screw gun compatible for faster installation without manual fastening

Compatibility

Designed for use with standard electrical boxes at depths of 1.5 inches, 2.125 inches, and 2.5 inches, within stud wall applications where stud spacing falls between 15.75 inches and 25 inches.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements. De-energize all circuits in the work area before mounting any electrical box or bracket. The telescoping arms should be fully seated and secured before the electrical box is attached. Do not exceed the box weight rating for the specific box being mounted.

Technical Specifications

• Material: Steel
• Finish: Pregalvanized
• Stud Spacing Range: 15.75 inches to 25 inches
• Compatible Box Depths: 1.5 inches, 2.125 inches, 2.5 inches
• Standard Packaging Quantity: 50
• UPC: 782856679677

Standard Information

• Brand: NVENT
• Manufacturer Part Number: tsgb1624
