Nvent TSGB16 Telescoping Screw Gun Box Bracket

Product Description

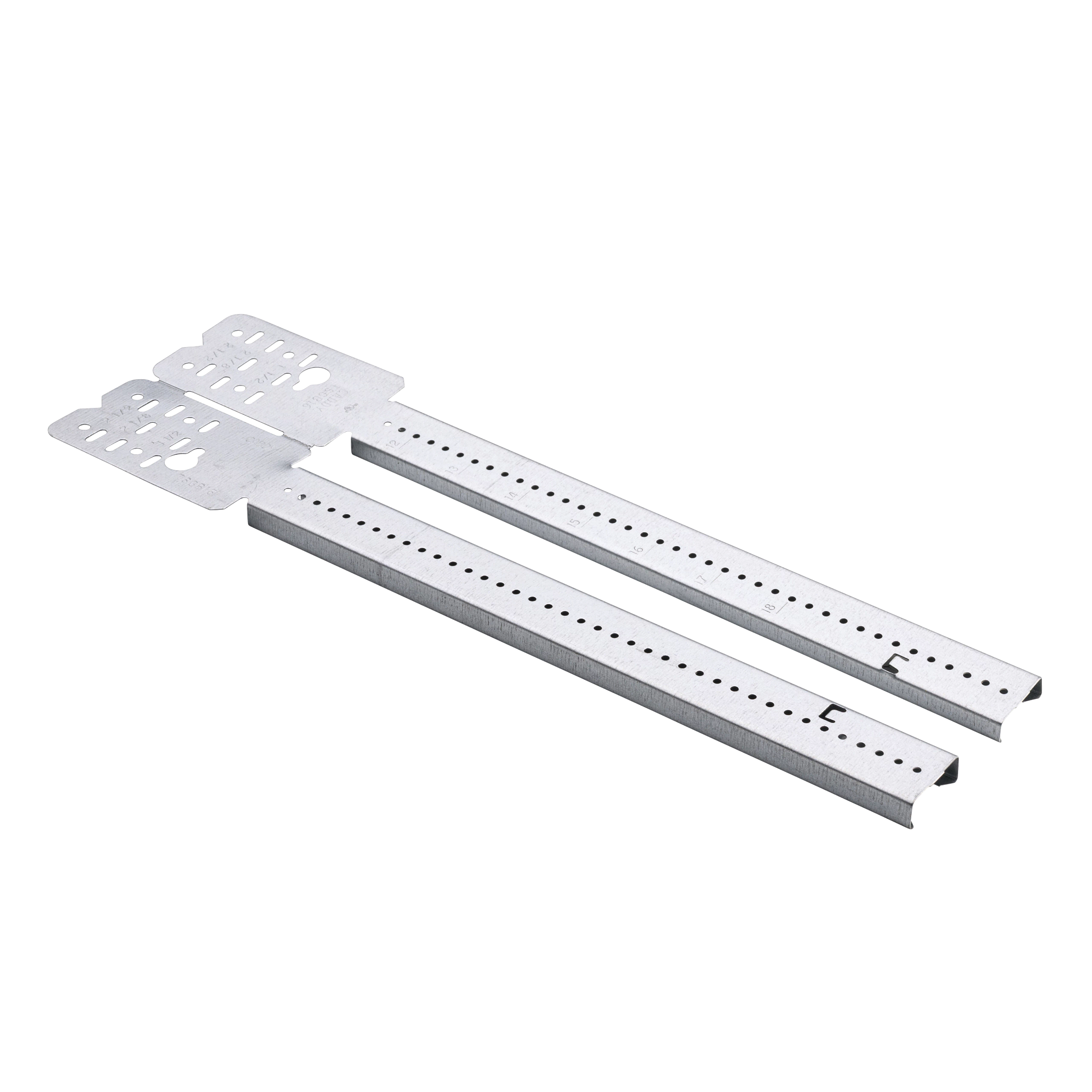

The NVENT TSGB16 is a telescoping screw gun box bracket designed for mounting electrical boxes and conduit between wall studs. Stamped inch markings and pilot holes allow fast, accurate positioning without additional measuring. The bracket adjusts from 11 inches to 18 inches to accommodate non-standard stud spacing. It also supports multiple box or conduit installations on a single bracket. Electricians and low-voltage installers use this bracket during rough-in to speed up box placement and maintain consistent depth alignment. The screw gun-compatible design reduces installation time compared to traditional nail-on brackets.

This bracket is suited for residential and light commercial framing applications where stud spacing falls outside the standard 16-inch on-center layout. It is particularly useful in retrofit work, remodels, or any framing condition where irregular spacing requires an adjustable solution. The 1-1/2 inch to 2-1/8 inch box depth range accommodates standard single-gang and multi-gang electrical boxes. Installation is handled by licensed electricians during the rough-in phase of construction or remodel.

Key Features

• Adjustable span from 11 inches to 18 inches for non-standard stud spacing
• Stamped inch markings for fast, precise box and conduit positioning
• Pilot holes allow direct screw gun installation without pre-drilling
• Supports mounting of multiple boxes or conduits on a single bracket
• Compatible with box depths from 1-1/2 inches to 2-1/8 inches

Compatibility

Designed as an OEM-style replacement telescoping bracket for residential and light commercial electrical rough-in applications requiring adjustable stud-span box mounting.

Installation Notes

Installation is performed by a licensed electrician during the rough-in phase. De-energize the circuit and verify the work area is safe before mounting boxes. Secure the bracket ends firmly to each stud face before driving box-mounting screws. Follow applicable NEC requirements for box fill, support spacing, and device mounting depth.

Technical Specifications

• Adjustable Span: 11 to 18 inches (280 mm to 458 mm)
• Box Depth Range: 1-1/2 inches to 2-1/8 inches
• UPC: 782856476160

Standard Information

• Brand: NVENT
• Manufacturer Part Number: TSGB16
