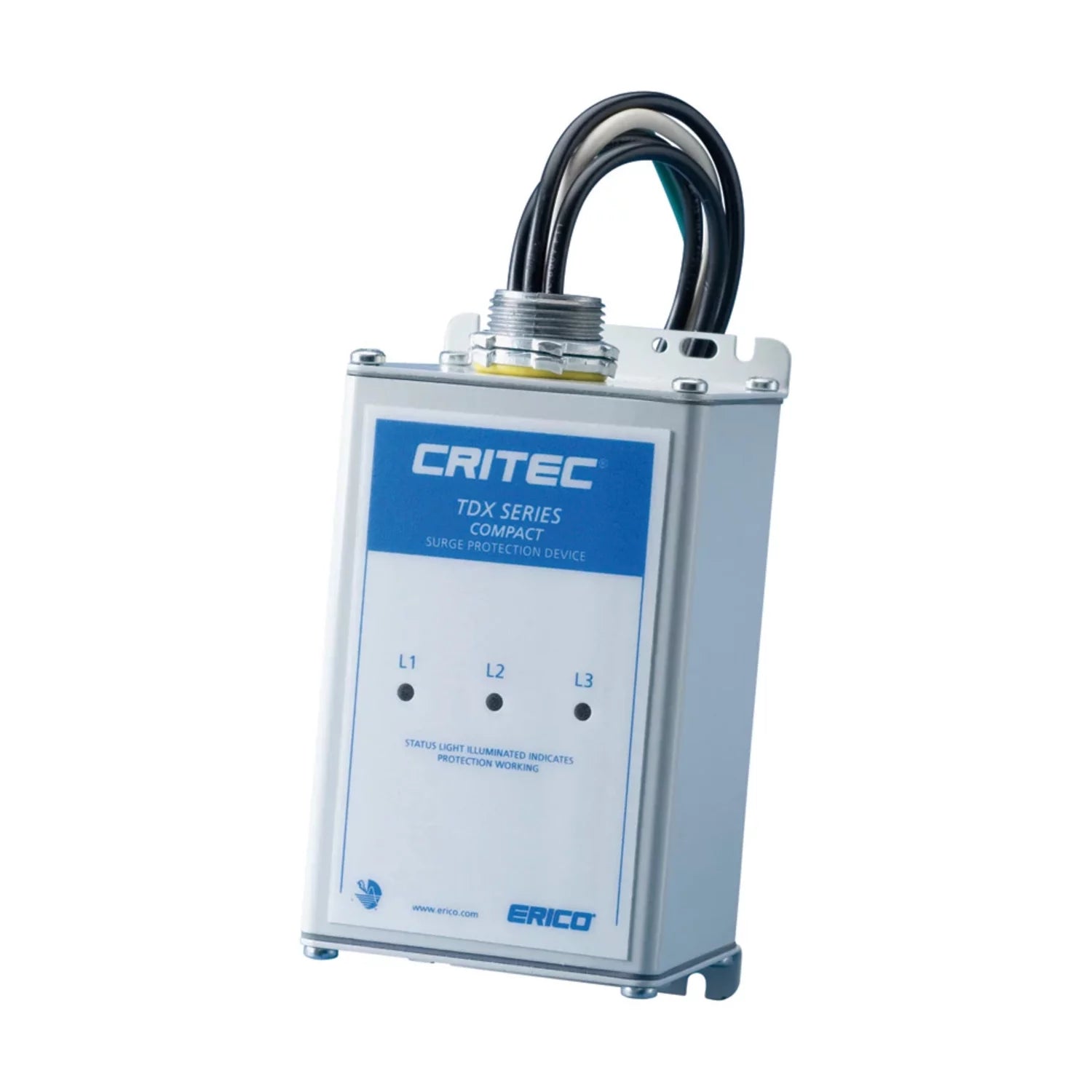

Nvent TDX50C120 Compact TDX Panel Protector 50 kA

Product Description

The Nvent TDX50C120 is a compact TDX panel protector designed for reliable surge protection. With a maximum surge rating of fifty kA, it is suitable for use with sub-distribution panels. This model incorporates transient discriminating technology for enhanced performance.

• Transient discriminating technology for accurate surge protection.
• Thermal protection and short circuit fusing included.
• LED status indicators for easy monitoring.

Product Highlights

Compact design with NEMA-4 enclosure allows for flush mounting and remote status monitoring.

Product Information

Standard Information

• Nominal System Voltage (Un): 120/240 V
• Distribution System: 1Ph 3W+G

Technical Specifications

• Max Continuous Operating Voltage (Uc): 170/276 VAC
• Stand-off Voltage: 240/480 VAC
• Frequency: 50 - 60 Hz
• Short Circuit Current Rating (SCCR): 200 kA
• Nominal Discharge Current (In), IEC: 40 kA 8/20 µs
• Nominal Discharge Current (In), UL: 10 kA 8/20 µs
• Max Discharge Current (Imax), Per Phase: 50 kA 8/20 µs
• Voltage Protection Rating (VPR), L-N: 600 V @ 3 kA; 1200 V @ 20 kA
• Protection Modes: L-N; L-PE; N-PE
• Remote Contacts: Yes
• Status Indication: LED
• Technology: Over-current fusing; TD technology with thermal disconnect
• Lead Size Imperial: #10
• Ground Lead Length: 36 inches
• Temperature Range: -40 to 176 °F
• Enclosure Material: Metal
• Enclosure Rating: IP 65; NEMA-4
• Mounting Type: 3/4 straight nipple
• Dimensions: Depth 3.07 inches, Height 6.02 inches, Width 3.31 inches
• Weight: 1.54 lb
• Certifications: UL 1449 Edition 5 Type 1/2, 10 kA Mode
