nVent T1F130LP HOFFMAN TYPE 1 VENTED ENCL 2x4 IN FAN 78351017371

Product Description

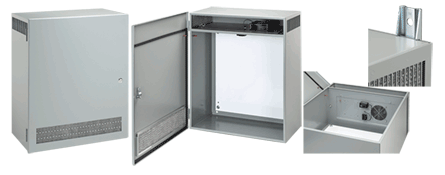

The nVent T1F130LP is a vented enclosure designed for HVAC and industrial environments. This enclosure measures thirty-four inches in length, twenty-four inches in width, and twelve and three-fourths inches in depth. It features NEMA 1/IP20 rating, providing basic protection against dust and water. The enclosure has a hinged cover and includes a thermostatically controlled forced-air ventilation system to efficiently remove heat produced by electrical components.

• Terminal block power connection for fan
• Washable expanded metal filter
• Lift-off hinged door

Product Highlights

This enclosure is ideal for control systems with heat-sensitive electronics. It is suitable for use with variable frequency drives, inverters, and programmable logic controllers.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351017371

Technical Specifications

• Application: For control systems in HVAC or industrial environments
• Color: Gray
• Cover Type: Hinged
• Depth: 12-3/4 inches
• Electrical Ratings: 115 VAC, 130 cfm, 20 hp
• Finish: Polyester Powder Painted
• Length: 34 inches
• Lock: Quarter Turn Slotted Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 1/IP20
• Panel Size: 21 inches W x 27 inches H
• Series: A1DR
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 | IEC 60529 | UL 508A File No. E61997
• Width: 24 inches
