nVent SP58 ERICO Clamp Grounding Rod 1/2 to 5/8 in Rod

Product Description

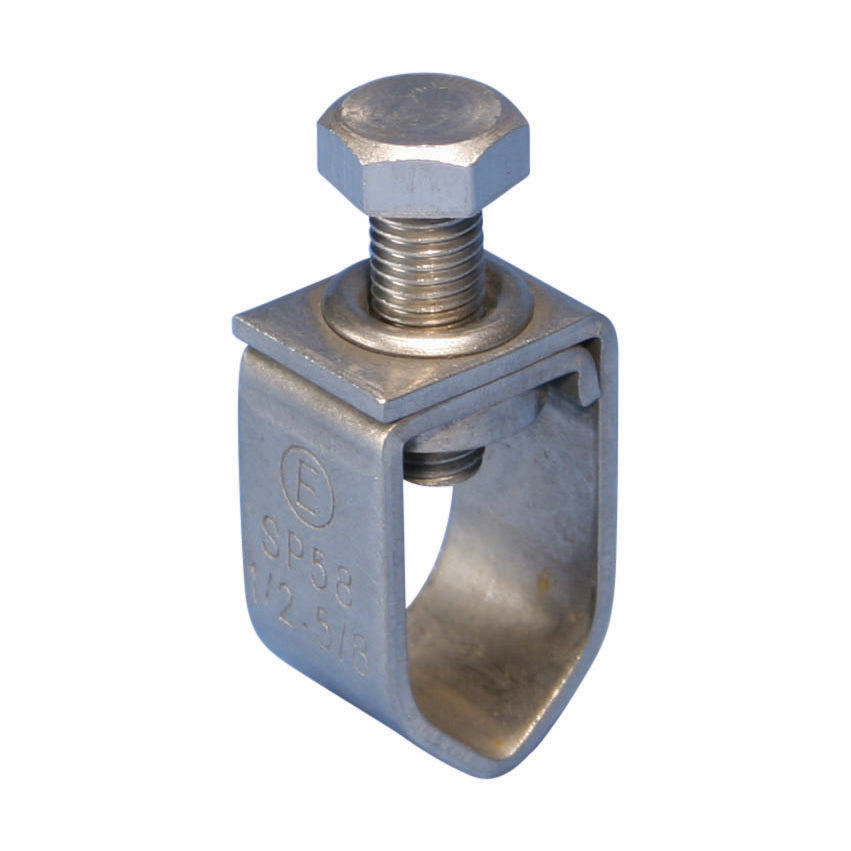

The nVent ERICO SP58 is a clamp designed for grounding rods sized one-half to five-eighths inches. It connects stranded conductors ranging from ten to two American Wire Gauge and six to twenty-five square millimeters. This product features a robust construction made from 304 stainless steel, ensuring durability.

• Clamp accommodates 1/2 to 5/8 inch rods.
• Works with 10 to 2 AWG stranded conductors.
• Constructed from corrosion-resistant 304 stainless steel.

Product Highlights

The SP58 clamp provides reliable connections for grounding applications. It helps ensure safety by grounding electrical systems effectively.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78285660651

Technical Specifications

• Conductor Size: 10 to 2 AWG Stranded, 6 to 25 sq-mm Stranded
• Conductor Type: Stranded
• Connection Type: Rod to Conductor
• Manufacturer Part Number: SP58
• Material: 304 Stainless Steel
• Rod Size: 1/2 to 5/8 in
• Standards/Approvals: EN 1.4301, cULus Listed, Qualifoudre Approved
