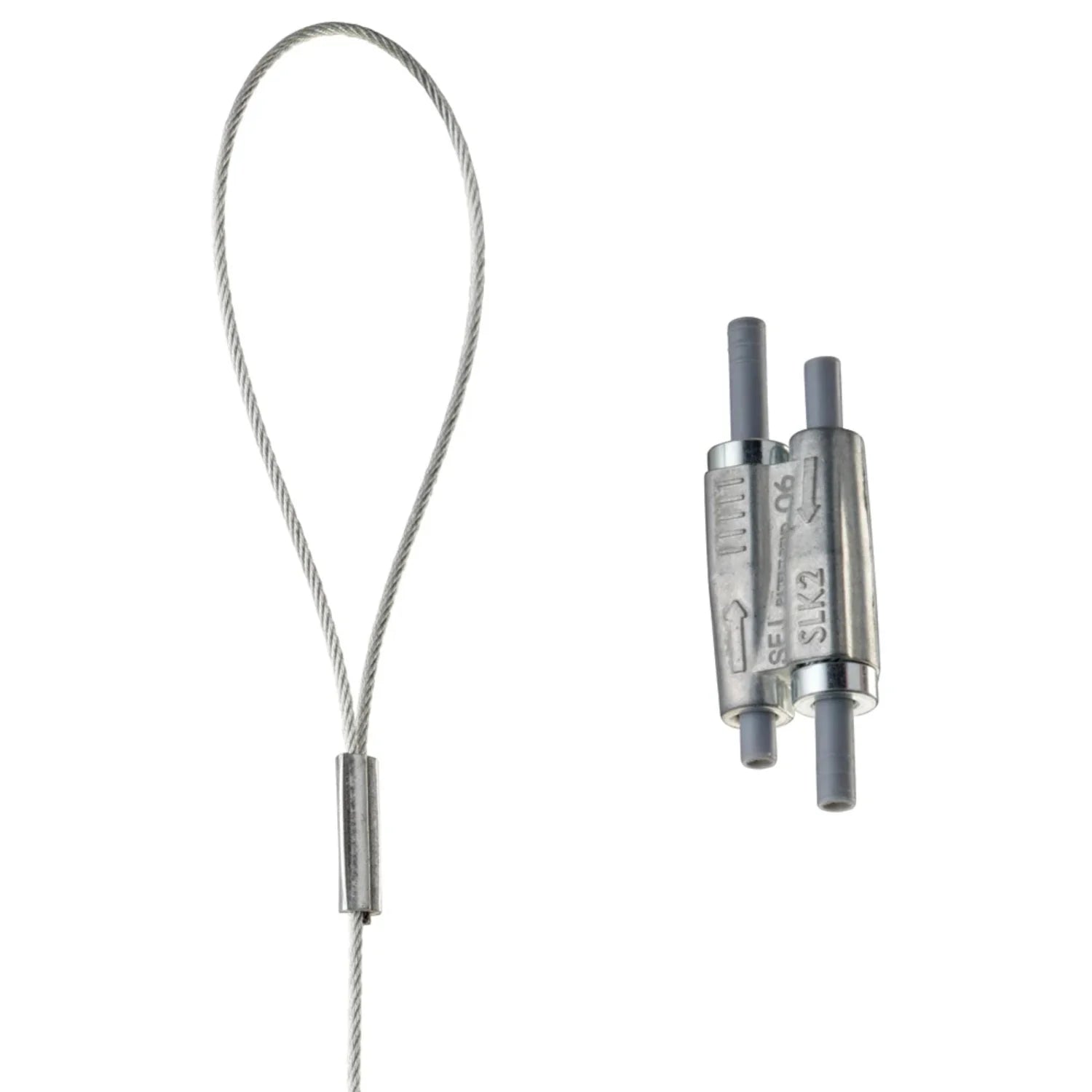

Nvent SLK3L3LP Speed Link SLK with Loop 3 mm Wire 9.9 feet Length

Product Description

The NVENT SLK3L3LP is a CADDY Speed Link SLK system designed for attaching to building structures. This complete system includes wire, a locking device, and a pre-assembled loop end fitting, offering an easy and flexible solution for installations. It features a 3 mm wire rope diameter and a 5:1 static load safety factor, capable of handling a static load of 200 lbf. The system is ideal for purlins, beams, and other structural members, especially in tight spaces.

• Complete system includes wire, locking device and pre-assembled loop end fitting
• Easy and flexible solution attaches to building structures
• Wire rope wraps around structure and through loop for quick installation

Product Highlights

Versatile CADDY Speed Link system for secure attachment to various building structures, featuring a 3 mm wire and 200 lbf static load capacity.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: SLK3L3LP

Technical Specifications

• Material: Steel;Polypropylene;Zinc Alloy
• Finish: Electrogalvanized
• Static Load Safety Factor: 5:1
• Wire Rope Diameter: 3 mm
• Complies With: SMACNA HVAC-DCS
• Angle: 90 ° Max
• Static Load: 200lbf
• Wire Rope Length: 9.9 feet
• Length: 4 inches
• Height: 2.5 inches
• Width: 0.9 inches
• Thickness: 0.6 inches
