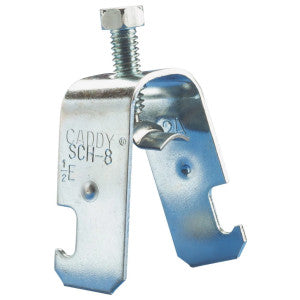

Nvent SCH12B Single Piece Strut Clamp for Cable/Conduit, 0.57 inches-0.92 inches OD, 3/4 inches EMT 1/2 inches Rigid

Product Description

The NVENT SCH12B is a single-piece strut clamp designed for cable and conduit applications. This clamp fits into the open side of a strut channel and requires only a screwdriver or nutdriver for installation. It is used for 3/4" EMT and 1/2" rigid conduit.

• One-piece cable/conduit clamp with protective boot
• No screws or bolts to drop
• Requires only a screwdriver or nutdriver for installation

Product Highlights

The SCH12B strut clamp provides a secure and easy way to fasten cable or conduit to strut, with no loose hardware.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: SCH12B
• Country of Origin: US - United States

Technical Specifications

• Material: Steel
• Finish: Electrogalvanized
• Outer Diameter (OD): 0.570" - 0.92"
• EMT Conduit Size: 3/4"
• Rigid Conduit/Pipe Size: 1/2"
• Static Load 1 (F1): 200lb
• Ultimate Static Load 2 (F2): 75lb
• Ultimate Static Load 3 (F3): 50lb
• Load Capacity: 200 lb
• Conduit Size: 1/2 in, 3/4 in
• Type: One-Piece
• Series: SCH2
• Mounting Type: Channel
• Suitable For Use With: EMT and Rigid Conduit
• Applications: Datacom and Low Voltage, Electrical, HVAC, Plumbing and Refrigeration
• Standard: CULus
• Trade Size: 3/4, 1/2 Inch
• Brand: nVent Caddy
• Sub Brand: CADDY
• Size: 1/2"
• Use With: 0.57 to 0.92 in. O.D. Cable, 3/4 in. EMT or 1/2 in. Rigid Conduit
