Nvent RBS24 Rigid Box Support 1-1/2 in and 2-1/8 in D 4 in 4-11/16 in Square Box 24 Inch Stud Spacing

Product Description

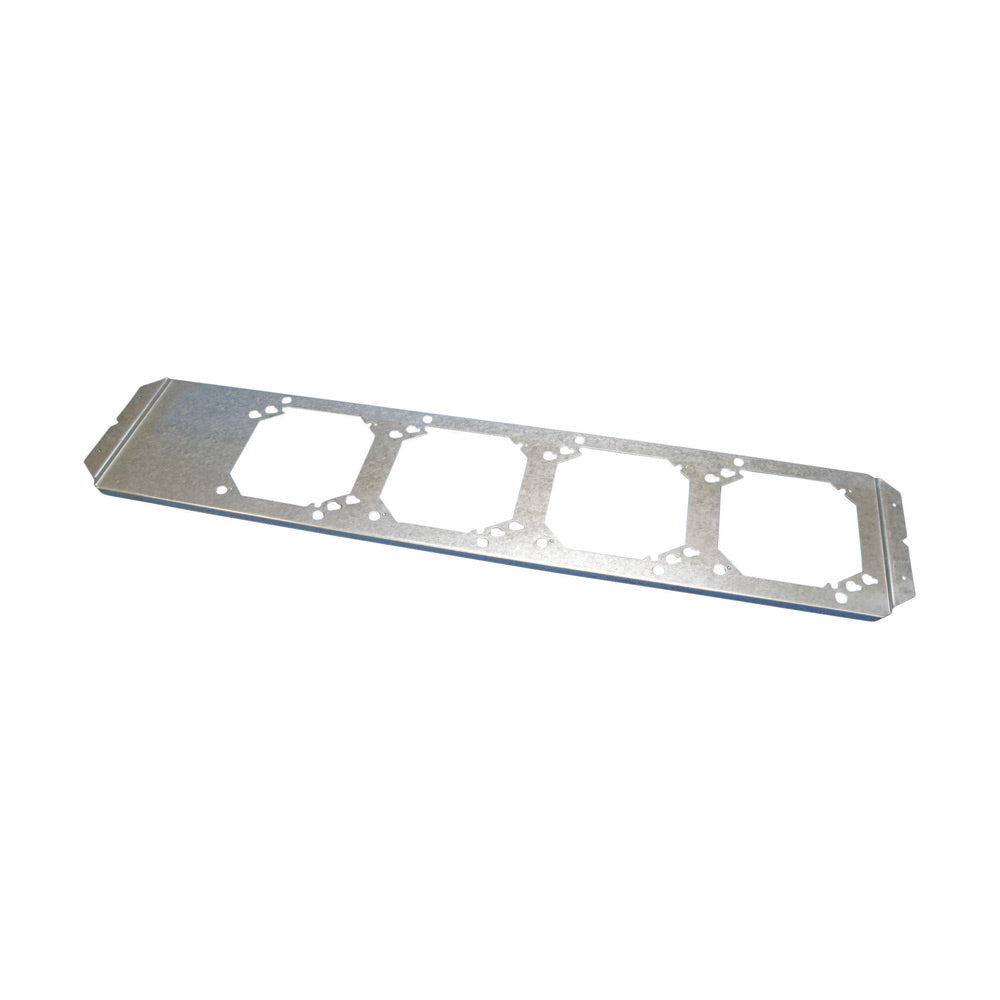

The nVent RBS24 is a rigid box support designed for electrical fixing, fastening, data communication, and low voltage applications. It is constructed from pre-galvanized steel and features bracket/stud mounting. This support is suitable for use with adjustable far side boxes and accommodates up to four 4-inch or 4-11/16-inch square boxes or plaster rings, with a 24-inch stud spacing.

• Eliminates the need for an electrical box on low voltage applications.
• Supports electrical boxes, plaster rings, or low voltage devices from one bracket.
• Accommodates up to four 4-inch or 4-11/16-inch boxes or plaster rings.

Product Highlights

Rigid box support for square electrical boxes and low voltage devices, designed for 24-inch stud spacing.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: RBS24

Technical Specifications

• Application: Electrical Fixing, Fastening, Data Communication and Low Voltage Applications
• Box Type: Square
• Finish: Pre-Galvanized
• Material: Steel
• Mounting Type: Bracket/Stud
• Stud Spacing: 24 in
• Standards/Approvals: UL Recognized|cUL Recognized|cULus Listed|cULus Recognized|cUL QCRV7.E165702|CAN/CSA C22.2 No. 18.1-04|UL QCRV.E165702|ANSI/UL 514A
• Suitable For Use With: Adjustable Far Side Box
• Type: Rigid
• Box Depth: 1-1/2 or 2-1/8 in
• Box Diameter: 4 in, 4-11/16 in
