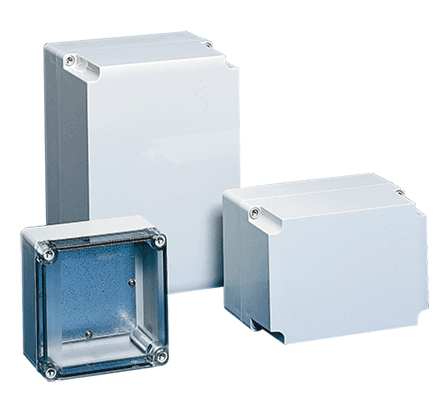

nVent Q251815PCECC Junction Box QLINE 250 mm H x 175 mm W x 149 mm D

Product Description

The nVent QLINE Junction Box, MPN Q251815PCECC, is designed for use in harsh environments. This junction box offers a secure and reliable option for protecting electrical connections. It is built to withstand occasional submersion and provides a watertight and dust-tight seal.

• Impact-resistant polycarbonate construction
• NEMA 4X/IP67 rating for environmental protection
• Clear screw cover design for easy access

Product Highlights

The QLINE Junction Box is ideal for various electrical applications, particularly where moisture and dust are concerns.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: Q251815PCECC

Technical Specifications

• Application: Used in corrosive environments and capable of withstanding occasional submersion
• Color: Light Gray
• Cover Type: Clear Screw
• Depth: 149 mm
• Height: 250 mm
• Material: Polycarbonate
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP67
• Panel Size: 8.78 x 5.83 in
• Series: Q41
• Standards/Approvals: RoHS Compliant, cUL Listed, CSA File No. 42184, IEC 60529, UL 508A
• Width: 175 mm
