nVent Q251810ABE HOF Enclosure 250mm x 175mm x 99mm

Product Description

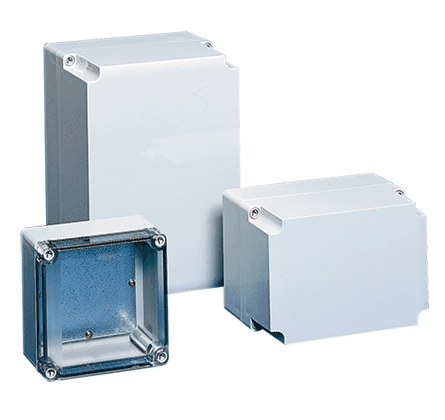

The nVent Q251810ABE is a junction box designed for use in corrosive environments. Its dimensions are two hundred fifty millimeters in height, one hundred seventy-five millimeters in width, and ninety-nine millimeters in depth. This junction box meets the NEMA 4X and IP67 ratings, providing protection against dust and water.

• Constructed from ABS material
• Opaque screw cover for secure closure
• Compatible with wall mounting

Product Highlights

The nVent Q251810ABE junction box is suitable for housing larger controls, providing flexibility in mounting options.

Product Information

Standard Information

• Manufacturer: nVent
• Product Number: Q251810ABE

Technical Specifications

• Application: Suitable for corrosive environments and can withstand occasional submersion
• Color: Light Gray
• Cover Type: Opaque/Screw
• Depth: 99 mm
• Height: 250 mm
• Material: ABS
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP67
• Panel Size: 8.78 x 5.83 in
• Series: Q41
• Standards/Approvals: RoHS Compliant, cUL Listed per CSA C22.2 File No. 94, CSA File No. 42184, IEC 60529, UL 508A
• Width: 175 mm
