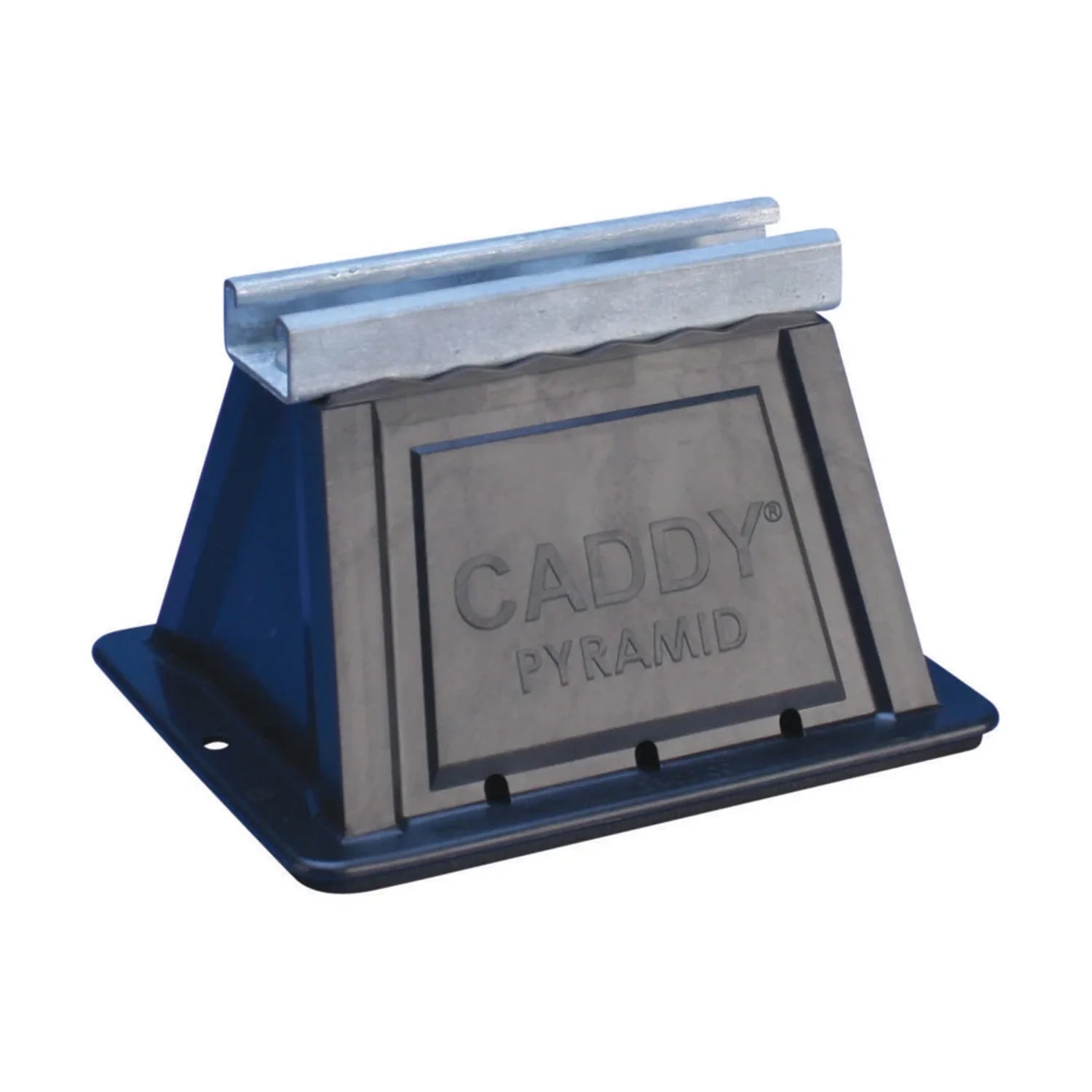

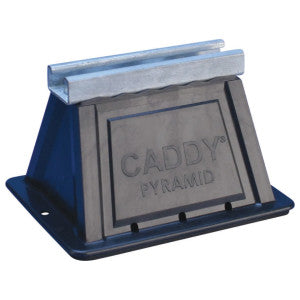

Nvent PSF6C CADDY Pyramid ST Fixed Strut Support 6 inches x 4.8 inches

Product Description

The NVENT PSF6C CADDY Pyramid ST Fixed Strut Support offers a simple solution for mounting electrical and mechanical services on commercial rooftops. Engineered to evenly distribute weight across the base, ensuring optimal load management. Constructed with UV-stabilized base materials and hot-dip galvanized strut profiles for exceptional corrosion resistance.

• Effective load distribution across uneven surfaces
• Compatible with roof surfaces including single ply, bituminous, metal and spray foam
• Ready to use out-of-the-box, saving installation time and improving productivity

Product Highlights

The NVENT CADDY Pyramid ST Fixed Strut Support provides a simple and adaptable solution for rooftop mounting, offering superior load capacity and corrosion protection.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: PSF6C
• Country of Origin: US - United States

Technical Specifications

• Material: Polyethylene;Polypropylene;Steel
• Finish: Hot-Dip Galvanized
• Temperature: -50 to 150 °F
• Static Load Safety Factor: 3:1
• Length 1 (L1): 6"
• Length 2 (L2): 8"
• Height (H): 4.8"
• Width (W): 6"
• Surface Area: 41in²
• Unit Weight: 1 lb
• Static Load (F): 300lb
• UPC: 782856842996
• EAN: 8711893138832
• Standard Packaging Quantity: 20
• Packing Quantity: 1
• Trade Size: 6IN
• Application: Electrical Fixing and Fastening, Rooftop, HVAC, Plumbing, Refrigeration, Datacom and Low Voltage Applications
• Product Name: Rooftop System Fixed Strut Support
• Standard: RoHS Compliant
• Thickness: 4.8 in
• Type: Fixed
• Height: 4.8 Inch
• Length: 8 Inch
• ECCN: EAR99
• UNSPSC: 30241504
• Accommodates: Mountin.g Platform With 6, 10, or 16 in. of Usable Strut Length
• UNSPSC Code: 30101800
• Load Capacity: 300 lb
