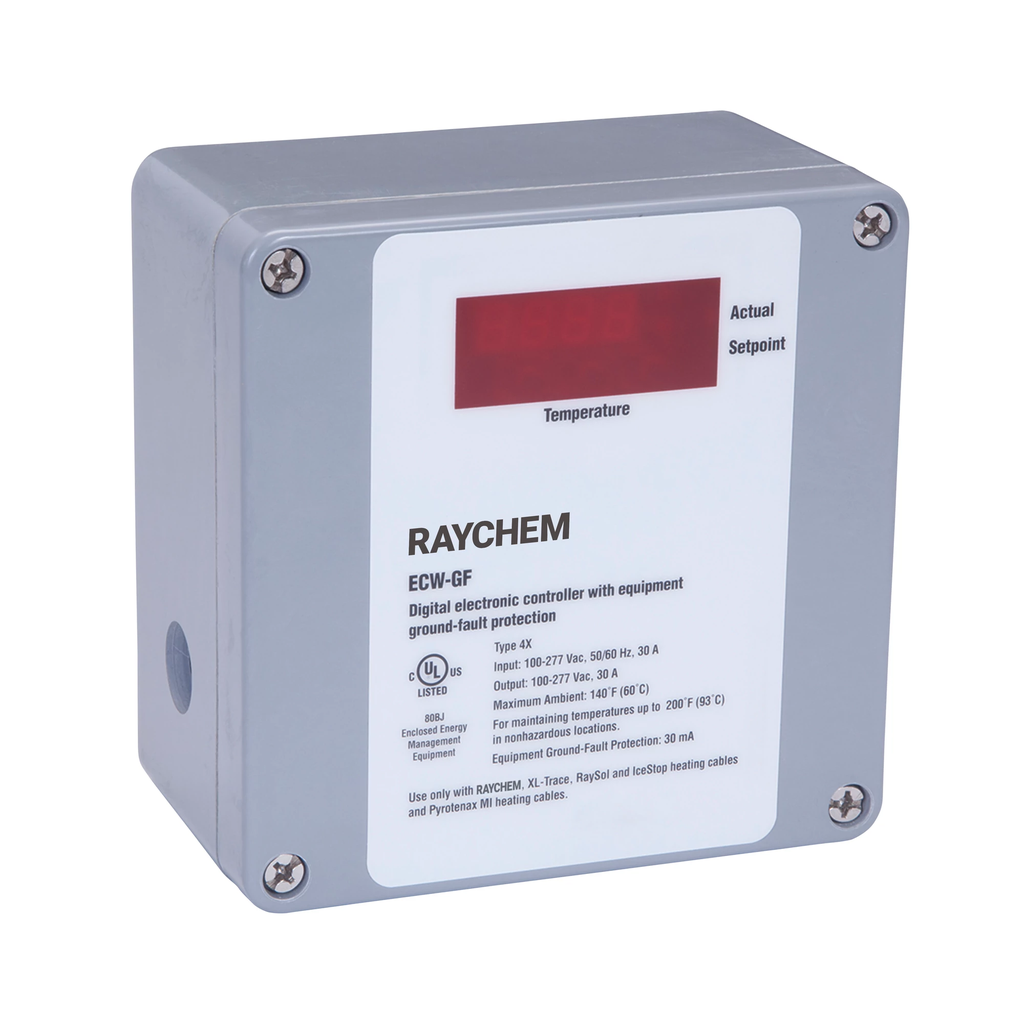

nVent P000000925 RAY-NUH ECW-GF Wall Mounted Digital Electronic Controller W/ GFI And 25-FT Thermistor

Product Description

The nVent P000000925 RAY-NUH ECW-GF is a wall-mounted digital electronic controller designed for temperature control in applications such as pipe freeze protection and flow maintenance. This energy-saving thermostat operates in line-sensing or ambient modes and is adjustable from thirty-two degrees Fahrenheit to two hundred degrees Fahrenheit. It supports a voltage range from 100 to 277 volts.

• Directly switches heating cables with maximum current of thirty amps and a voltage of 277 VAC.
• Easy to install in a NEMA 4X rated enclosure, it can be mounted on walls or pipes with an optional pipe stand kit.
• Features a digital display that shows current temperature, set point, and alarm conditions.

Product Highlights

Designed for reliability and longevity, the P000000925 includes a two-year warranty and is maintenance-free.

Product Information

Standard Information

• Brand: nVent
• Manufacturer: Raychem

Technical Specifications

• Type: Freeze-Protection, 2-Pole, Programmable
• Voltage: 100-277 VAC
• Amperage: 30 Amp
• Accuracy: +/- 3 F
• Wire Size: 18-6 AWG
• Sensor Type: Thermistor
• Housing Material: Fiberglass Reinforced Polyester Plastic
• Environmental Conditions: 0 - 90% RH
• Applications: Pipe Freeze Protection, Flow Maintenance, Freezer Frost Heave, Floor Heating, Snow Melting
