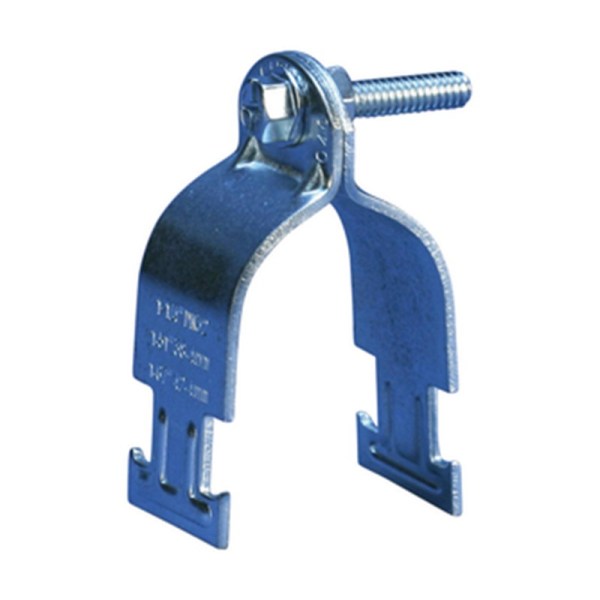

Nvent Nvent-USC058EG universal strut clamp for pipe/conduit 2.25in OD

Product Description

The NVENT NVENT-USC058EG Universal Strut Clamp is designed for securing pipe and conduit with an outer diameter between 2.200 and 2.250 inches. Constructed from steel with an electrogalvanized finish, this clamp provides a static load capacity of 850 lb. It is suitable for 2-inch EMT conduit and features a 1.25-inch width and 12 GA thickness, ensuring secure mounting within strut channels.

• Consists of two clamps, nut and bolt for complete assembly.
• Designed to fit securely into the open side of a strut channel.
• Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 59) standards.

Product Highlights

Steel electrogalvanized strut clamp for 2.25-inch OD pipe/conduit, 850 lb static load, MSS SP-58 compliant.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-USC058EG

Technical Specifications

• Brand: nVent Caddy
• Part Number: USC058EG
• Material: Steel
• Finish: Electrogalvanized
• Outer Diameter: 2.200 - 2.250 inches
• EMT Conduit Size: 2 inches
• Width: 1.25 inches
• Thickness: 12 GA
• Static Load: 850 lb
