Nvent NVENT-USC054BR Universal Strut Clamp 2.17 Inch Od

Product Description

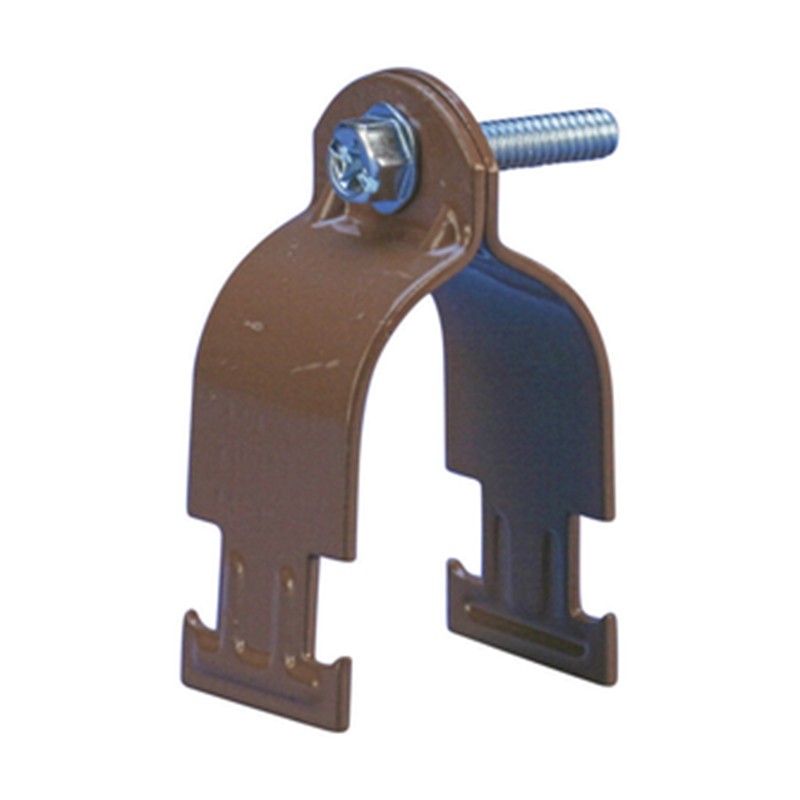

The NVENT NVENT-USC054BR is a universal strut clamp designed to secure 2-inch copper tube to standard strut channel in mechanical, plumbing, and HVAC piping systems. Built from 12-gauge steel with a polyester finish for corrosion resistance, this clamp accommodates outer diameters from 2.120 inches to 2.170 inches and carries a static load rating of 850 pounds. It is intended for use by licensed plumbers, pipefitters, and mechanical contractors working on overhead or wall-mounted pipe support applications.

This clamp is suited for residential and commercial installations where 2-inch copper piping must be supported from unistrut or equivalent strut channel. Common applications include hydronic heating lines, refrigerant piping, domestic water supply mains, and HVAC chilled or condenser water piping. Its universal strut compatibility makes it straightforward to install in new construction and retrofit projects alike.

Key Features

• Fits copper tube with outer diameters from 2.120 inches to 2.170 inches
• 12-gauge steel construction provides structural rigidity and durability
• Polyester finish offers protection against corrosion in mechanical room environments
• Static load rating of 850 pounds supports heavy pipe runs and system pressures
• 1.25-inch width profile sized for standard strut channel mounting
• Universal strut design compatible with commonly available strut hardware

Compatibility

Designed as an OEM-style strut clamp for 2-inch copper tube, intended for use with standard strut channel systems in mechanical and plumbing piping support applications.

Installation Notes

Installation is typically performed by a licensed plumber or mechanical contractor following applicable IPC or IFGC support spacing requirements for copper piping. Ensure the strut channel is properly anchored to structural members before loading the clamp. Inspect the clamp seating and hardware torque per the project engineer or authority having jurisdiction specifications. Do not exceed the rated static load of 850 pounds.

Technical Specifications

• Material: Steel
• Finish: Polyester
• Copper Tube Size: 2 inches
• Outer Diameter Range: 2.120 inches to 2.170 inches
• Width: 1.25 inches
• Thickness: 12 GA
• Static Load: 850 pounds

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-USC054BR
