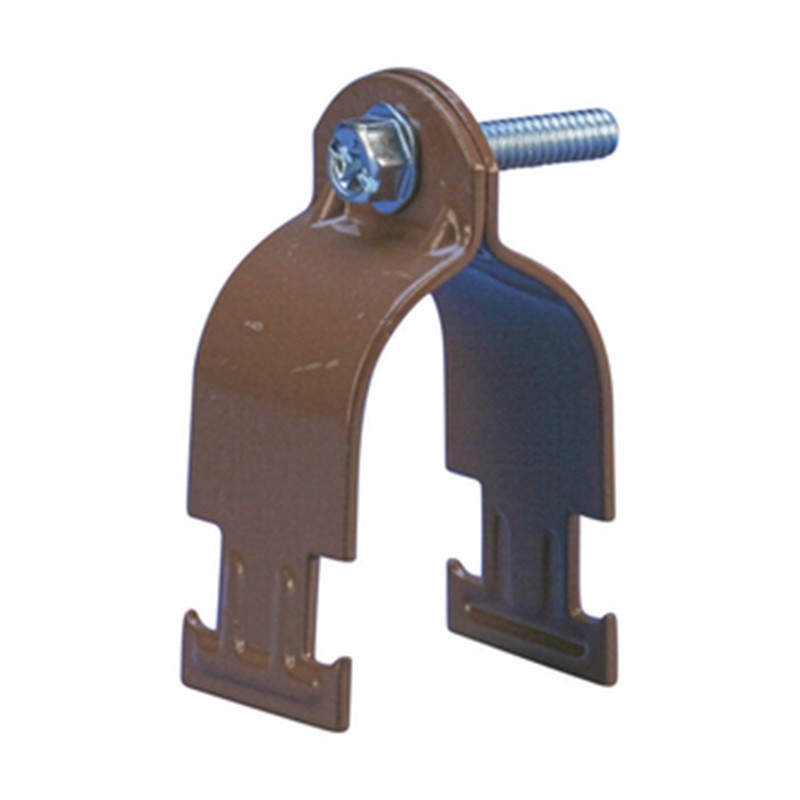

Nvent NVENT-USC042BR Universal Strut Clamp Copper Tube 1.5in

Product Description

The NVENT NVENT-USC042BR is a universal strut clamp engineered for securing copper tube to standard strut channel. Fabricated from 14-gauge steel with a polyester finish, this clamp accepts copper tube with an outer diameter range of 1.630 inches to 1.670 inches, corresponding to a 1.5-inch nominal copper tube size. It is designed for use in mechanical, plumbing, and HVAC piping support applications where rigid, code-compliant tube-to-strut connections are required. The clamp carries a static load rating of 600 pounds, making it suitable for overhead and vertical run support in commercial and light industrial installations. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers.

This clamp is suited for residential and commercial mechanical systems where copper water, refrigerant, or hydronic piping must be supported from strut channel framing. It is commonly used in new construction and retrofit projects involving suspended ceiling grids, equipment rooms, and mechanical chases. The 1.25-inch width and 14-gauge construction provide a secure fit on standard 1-5/8-inch strut channel without requiring additional hardware beyond standard strut nuts and bolts.

Key Features

• Accepts copper tube OD range of 1.630 inches to 1.670 inches, fitting 1.5-inch nominal copper tube
• 14-gauge steel construction for rigid, durable support
• Polyester finish provides corrosion resistance in typical mechanical environments
• 600-pound static load rating supports heavy piping runs and system loads
• 1.25-inch clamp width for stable contact and load distribution on strut channel

Compatibility

Designed for use with standard strut channel systems supporting 1.5-inch nominal copper tube with an outer diameter between 1.630 inches and 1.670 inches.

Installation Notes

Installation is typically performed by licensed plumbers or mechanical contractors following applicable IPC and IFGC support spacing requirements. De-energize or isolate any adjacent systems before working in confined mechanical spaces. Secure the clamp to strut channel using appropriate strut nuts and hardware rated for the intended load. Do not exceed the rated 600-pound static load capacity for the support assembly.

Technical Specifications

• Material: Steel
• Finish: Polyester
• Copper Tube Size (Nominal): 1.5 inches
• Outer Diameter Range: 1.630 inches to 1.670 inches
• Clamp Width: 1.25 inches
• Gauge: 14 GA
• Static Load Rating: 600 pounds

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-USC042BR
