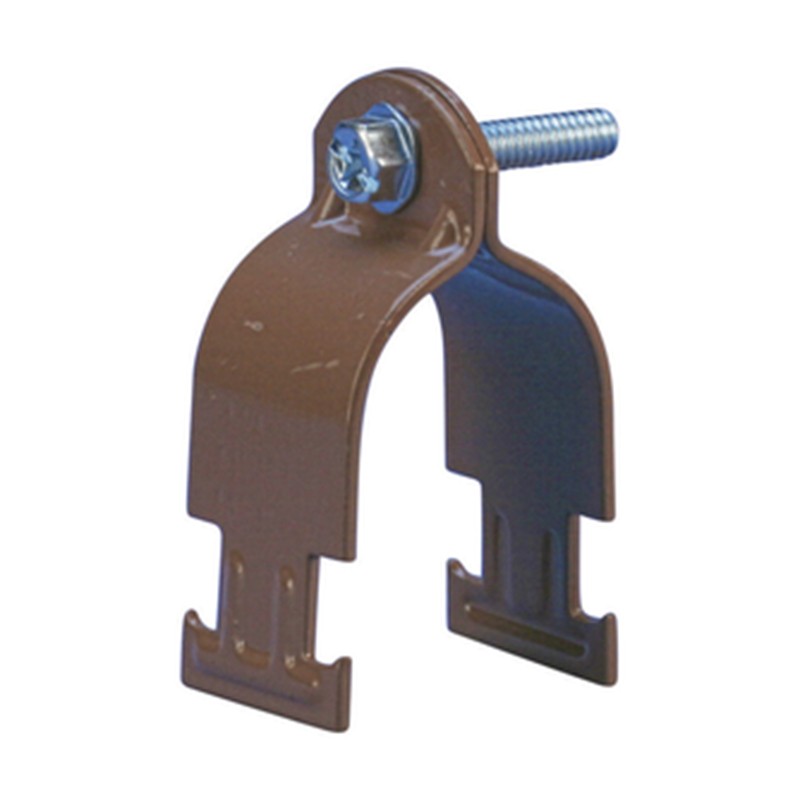

Nvent NVENT-USC036BR Universal Strut Clamp 1.5in Od

Product Description

The NVENT NVENT-USC036BR is a universal strut clamp engineered for securing copper tube with a 1.5-inch outer diameter to standard strut channel. Constructed from 14-gauge steel with a polyester finish, this clamp delivers reliable holding strength in mechanical, plumbing, and HVAC piping applications. It supports a static load rating of 600 pounds, making it well suited for overhead and wall-mounted installations where long-term pipe support is critical. Licensed plumbers, pipefitters, and mechanical contractors install this type of hardware as part of suspended piping systems in both new construction and retrofit work.

This clamp is designed for use with 1-1/4-inch copper tube, accommodating outer diameters from 1.330 inches to 1.500 inches. It fits directly onto standard strut channel and is commonly installed in commercial and residential mechanical rooms, utility spaces, and plenum areas where copper piping systems require secure, vibration-resistant support. The 1-1/4-inch width keeps the clamp compact within tight strut layouts.

Key Features

• Fits copper tube OD range of 1.330 inches to 1.500 inches
• 14-gauge steel construction for structural rigidity
• Polyester finish provides corrosion resistance in damp mechanical environments
• 600-pound static load rating for dependable overhead pipe support
• Universal strut channel compatibility simplifies integration into existing strut layouts
• 1-1/4-inch clamp width suits standard strut slot spacing

Compatibility

Designed as an OEM-style replacement and new-installation strut clamp for 1-1/4-inch copper tube systems mounted to standard strut channel.

Installation Notes

Installation is typically performed by licensed plumbers or mechanical contractors following applicable IPC and IFGC support-spacing requirements. Shut off and depressurize the piping system before making any adjustments to existing pipe supports. Secure the clamp hardware to strut channel with appropriate nuts and bolts torqued to the strut manufacturer's specification. Do not exceed the rated 600-pound static load for this clamp size.

Technical Specifications

• Material: Steel
• Finish: Polyester
• Copper Tube Size: 1-1/4 inches
• Outer Diameter Range: 1.330 inches to 1.500 inches
• Width: 1-1/4 inches
• Thickness: 14 GA
• Static Load Rating: 600 pounds

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-USC036BR
