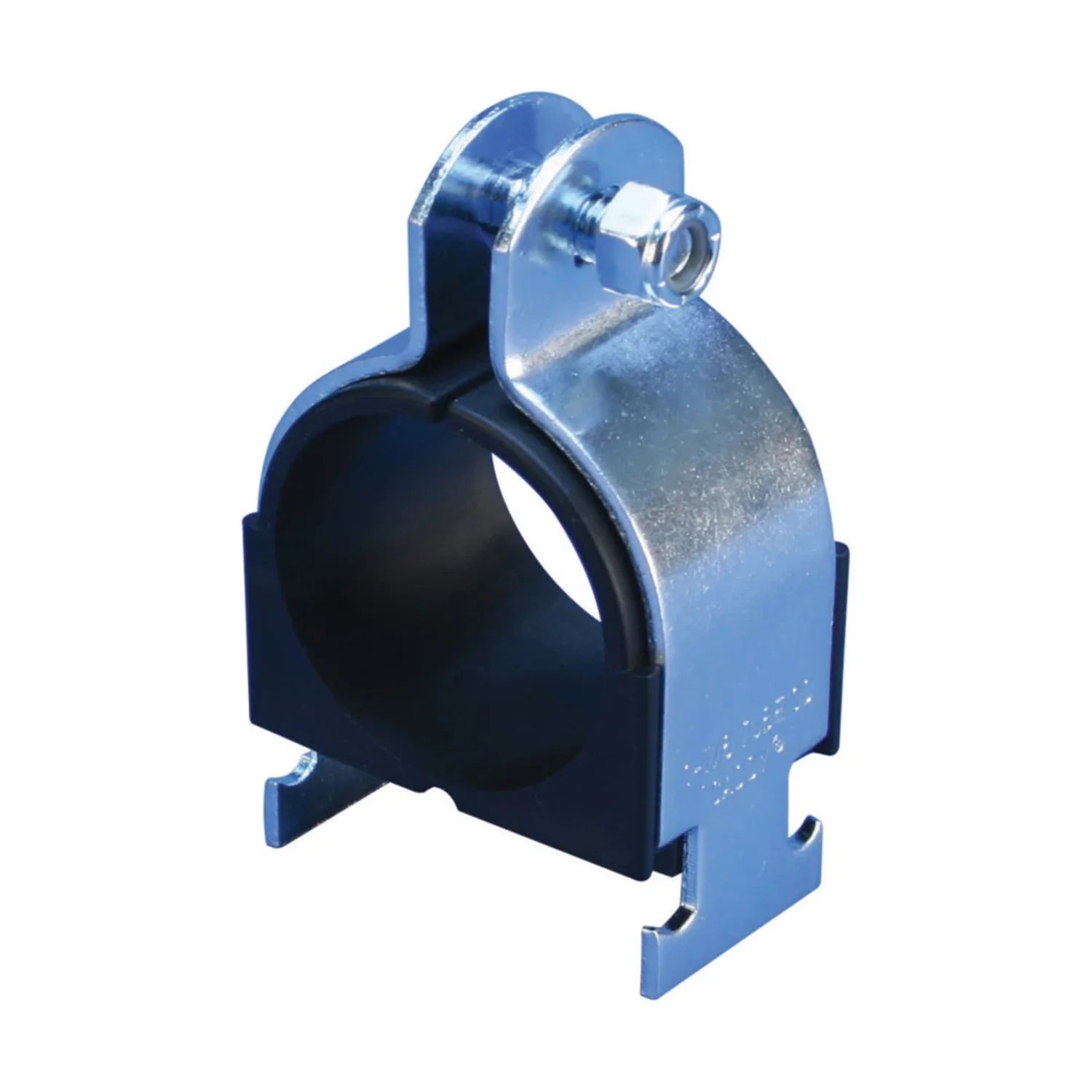

Nvent NVENT-CCC0050 Insulated Strut Clamp 1/2 in Od

Product Description

The NVENT NVENT-CCC0050 is an insulated cushion clamp designed to secure pipe and tube to strut channel in mechanical, plumbing, and HVAC piping systems. The cushion lining isolates the pipe from the steel clamp body, reducing vibration transmission and protecting the pipe surface from abrasion. This clamp is sized for 0.5-inch OD tubing, which corresponds to 3/8-inch copper tube and 1/4-inch nominal pipe. It is typically installed by plumbers, pipefitters, and HVAC technicians as part of a strut-based pipe support system.

This clamp is suited for residential and light commercial applications where insulated pipe support is required on strut channel. Common install scenarios include refrigerant line sets, domestic water lines, and small-diameter gas or compressed-air piping routed along strut unistrut systems. The 0.5-inch OD sizing makes it a direct fit for 3/8-inch ACR copper tube and 1/4-inch IPS pipe runs.

Key Features

• Cushion lining isolates pipe from clamp body to dampen vibration and prevent abrasion
• Fits 0.5-inch OD tubing, including 3/8-inch copper tube and 1/4-inch nominal pipe
• Designed for use with standard strut channel systems
• Insulated construction helps prevent galvanic contact between dissimilar metals

Compatibility

Designed as an OEM-style replacement and standard fitment for strut channel pipe support systems accommodating 0.5-inch OD pipe or tube, including 3/8-inch copper ACR tube and 1/4-inch nominal pipe.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC technicians. Shut off fluid flow and depressurize the line before repositioning or replacing clamps on active systems. Ensure the strut channel is properly anchored to structural members per applicable building and mechanical codes before loading clamps. Do not overtighten the clamp fastener to the point of compressing the cushion lining beyond its designed range, as this can reduce vibration isolation effectiveness.

Technical Specifications

• OD Pipe/Tube Size: 0.5 inches
• Compatible Copper Tube Size: 3/8 inches
• Compatible Nominal Pipe Size: 1/4 inches
• Clamp Type: Insulated Cushion Clamp
• Mounting Style: Strut Channel

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-CCC0050
