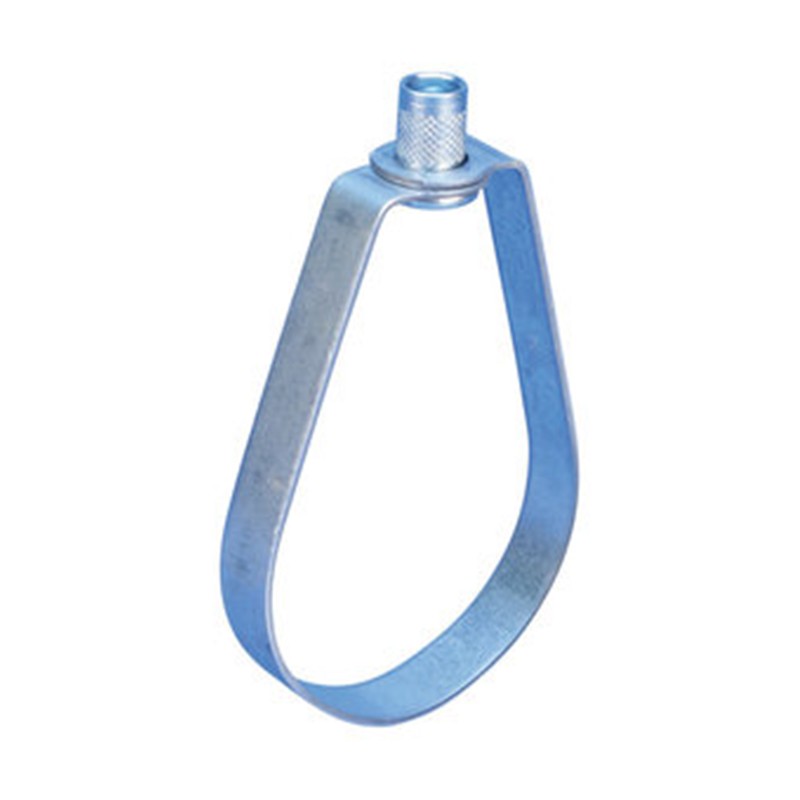

Nvent NVENT-1000600EG Heavy Duty Loop Hanger 6in Pipe

Product Description

The NVENT NVENT-1000600EG is a heavy duty loop hanger designed to support 6-inch pipe in mechanical, plumbing, and HVAC piping systems. Built from pregalvanized steel, this hanger delivers corrosion resistance suited for both indoor and light commercial environments. It accepts a 3/4-inch threaded rod and is rated for a static load of 1,250 pounds, making it appropriate for large-diameter, high-weight piping runs. Plumbers, pipefitters, and mechanical contractors install this style of hanger where rigid, load-rated pipe support is required by code or engineering specification.

This loop hanger is used in residential and commercial mechanical rooms, utility spaces, and equipment rooms where 6-inch pipe must be suspended from structural ceilings or overhead framing. Typical applications include large-diameter plumbing drain lines, HVAC hydronic piping, and process piping runs. The pregalvanized finish makes it suitable for installations where moderate corrosion resistance is needed without the cost of stainless hardware.

Key Features

• Rated for a 1,250-pound static load for heavy piping applications
• Fits 6-inch pipe with a 6 5/8-inch outer diameter
• Accepts 3/4-inch threaded suspension rod
• Pregalvanized steel construction for corrosion resistance
• Dimension A: 10 5/8 inches, Dimension B: 5 3/16 inches, Dimension C: 2 3/8 inches

Compatibility

Designed as an OEM-style replacement or new-installation loop hanger for 6-inch pipe with a 6 5/8-inch outer diameter, suspended on 3/4-inch threaded rod.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors. Shut down and depressurize the piping system before repositioning or replacing hangers. Hanger rod anchoring to overhead structure must comply with applicable building codes and engineering load requirements. Do not exceed the rated static load of 1,250 pounds.

Technical Specifications

• Pipe Size: 6 inches
• Outer Diameter: 6 5/8 inches
• Rod Size: 3/4 inch
• Static Load Rating: 1,250 pounds
• Dimension A: 10 5/8 inches
• Dimension B: 5 3/16 inches
• Dimension C: 2 3/8 inches
• Material: Steel
• Finish: Pregalvanized

Standard Information

• Brand: NVENT
• Manufacturer Part Number: NVENT-1000600EG
