nVent Nuheat FG0800 Numheat Membrane - 120/208/240 Volt (39 x 39) Replacement MPN

Product Description

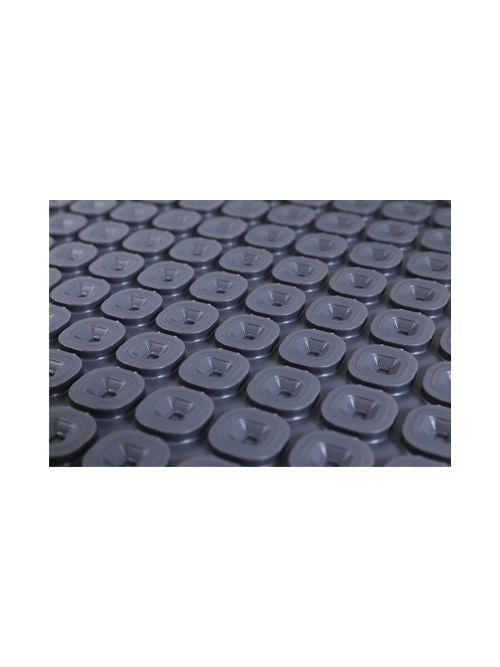

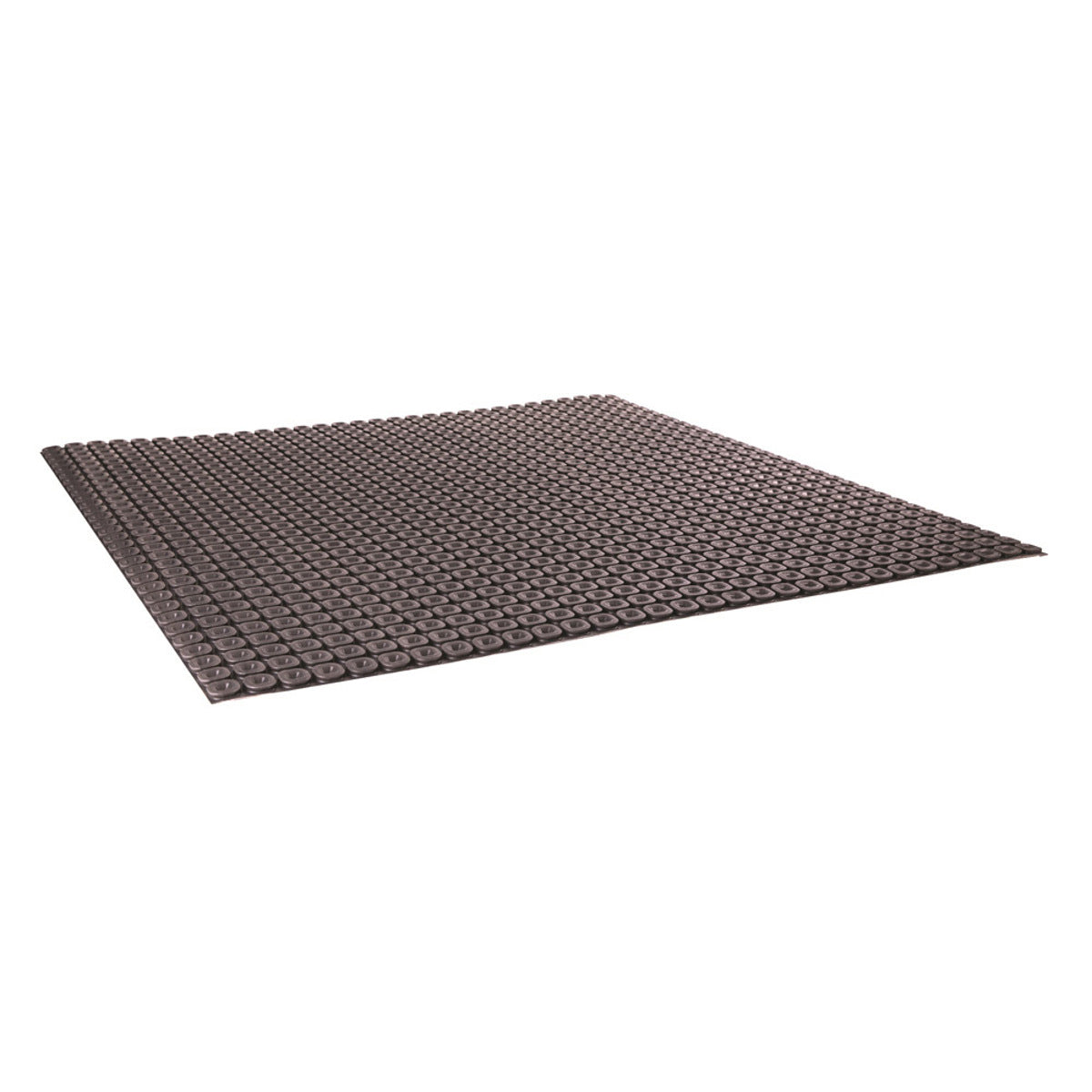

The nVent Nuheat FG0800 membrane is a tile underlayment system designed for flooring applications. This membrane can be installed directly on the subfloor, creating a barrier for uncoupling, crack isolation, and waterproofing. It eliminates the need for additional layers like plywood or concrete backer boards in tile installations. The membrane is made from a polypropylene layer with square columns that form channels intended to support the Nuheat Cable Floor Heating System.

• Tile underlayment for uncoupling and waterproofing
• Eliminates need for extra plywood or concrete backer board
• Features channels for embedding Nuheat Cable Floor Heating System

Product Highlights

This membrane promotes moisture escape from the substrate during curing through its innovative design. The polypropylene is heat-welded to a non-woven fabric for enhanced adhesion. Suitable for various flooring applications, this underlayment helps to reduce the risk of tile cracks.

Product Information

Standard Information

• Brand: nVent Nuheat
• Manufacturer: Raychem

Technical Specifications

• Type: 2-Wire, Grounded
• Width: 39 inches
• Length: 39 inches
• Voltage: 120/208/240 Volt
• Wattage: 10 - 15 Watt
• Coverage: 10.6 ft
• Material: Polypropylene
• Cord Size: 16-18 AWG
• Thickness: 0.22 inches
• Cord Length: 10 ft
• Temperature Rating: 194 degrees F
• Application: Floor Heating
