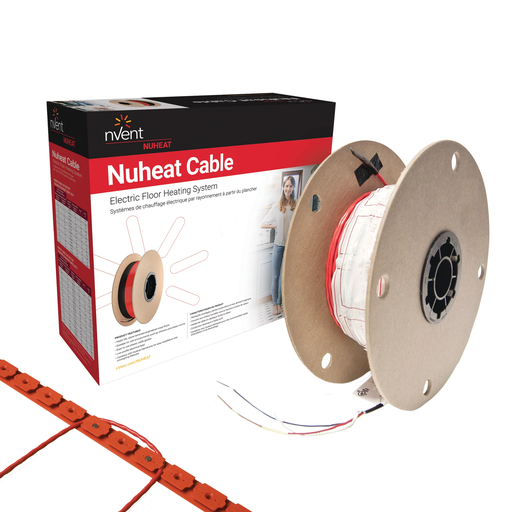

nVent Nuheat FG0623 Nuheat Cable Kit 240V 334ft Length RAYCHEM

Product Description

The nVent Nuheat FG0623 is a floor heating cable kit designed for effective heating in residential or commercial spaces. This cable kit operates at 240 volts and provides a maximum wattage of 1032 watts. It covers an area up to eighty-five square feet, making it suitable for various room sizes. The cable length is three hundred thirty-four feet, allowing for on-site adjustments to meet specific heating requirements.

• Installation flexibility with configurable cable layout
• Compatible with multiple flooring types including tile and wood
• Insulation and jacket materials ensure durability and safety

Product Highlights

This cable kit includes redesigned cable guides for easy installation and minimal maintenance. It supports a heat output of twelve to fifteen watts per foot, which ensures efficient heating performance.

Product Information

Standard Information

• Catalog Number: FG0623
• Manufacturer: nVent

Technical Specifications

• Voltage Rating: 240VAC
• Wattage: 1032 watts
• Amperage: 4.3 amps
• Material: Copper
• Temperature Rating: 105 Degrees Celsius
• Jacket Material: PVC
• Conductor Size: 2 Conductor 20-30 AWG
• Resistance: 56 ohm
