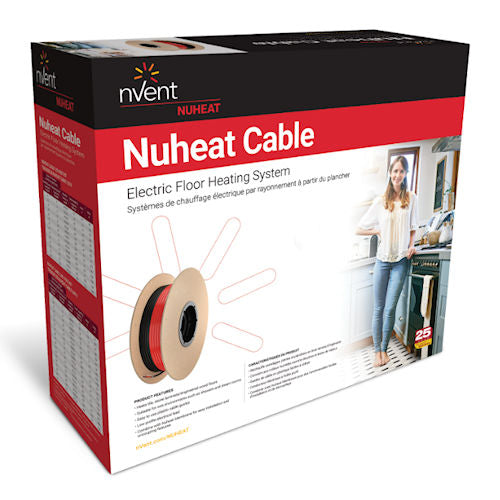

nVent Nuheat FG0606 Nuheat N1C040 120V 3.7A 442W Floor Heating Cable Kit 148ft Length

Product Description

The nVent Nuheat FG0606 is a floor heating cable kit designed for electric floor warming applications. This kit includes a 148-foot cable that can cover an area of forty square feet. It operates at one hundred twenty volts with a maximum output of four hundred fifty-seven watts and three point seven amps. The low-profile cold lead enables easier installation and on-site adjustments to heating coverage to meet specific layout requirements.

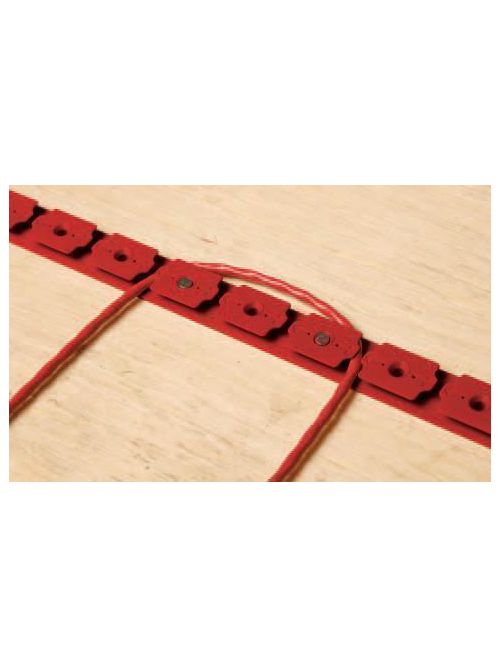

• Includes redesigned cable guides for simplified installation.
• Flexible installation options suitable for renovations or new construction.
• Designed for surface heating applications.

Product Highlights

This product offers versatile solutions for providing warmth under flooring materials, enhancing comfort in residential and commercial spaces.

Product Information

Standard Information

• Brand: nVent Nuheat
• MPN: FG0606

Technical Specifications

• Length: 148 foot
• Voltage: 120 volt
• Wattage: 457 watt
• Amperage: 3.7 amp
• Resistance: 31 ohm
• Jacket Material: PVC
• Outside Diameter: 3 inches
• Conductor Material: Tin plated copper
• Temperature Rating: 10 degrees Celsius installation, 90 degrees Celsius ambient
• Insulation Material: TEFZEL
• Number of Conductors: 1
