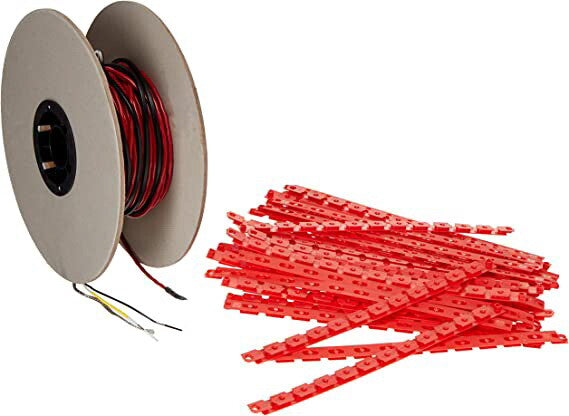

nVent Nuheat FG0605 Floor Heating Cable 120V 30 Square Foot

Product Description

The nVent NUHEAT FG0605 cable is an electric floor heating system designed for installation under tile, stone, and laminate/engineered wood floors. This cable allows for on-site flexibility for adjustments during installation and features redesigned cable guides along with a low-profile cold lead. A halfway marker is included on the heating cable to assist in layout planning, and it can be installed directly into the NUHEAT Membrane.

• Suitable for heating tile, stone, and laminate/engineered wood floors.
• Zero EMF cable design ensures safety and comfort.
• Halfway marker included for accurate layout planning.

Product Highlights

The nVent NUHEAT FG0605 offers reliable floor heating solutions tailored for various flooring types, promoting energy efficiency with its effective heating output.

Product Information

Standard Information

• Catalog Number: FG0605
• Brand: nVent NUHEAT

Technical Specifications

• Voltage: 120V
• Coverage Area: 30 Sq. Ft.
• Cable Length: 120 feet
• Weight: 5.5200 lbs
• Resistance: 40 Ohms
• Jacket Material: PVC
• Conductor Material: Copper
• Temperature Rating: 105 Degrees C
