nVent Nuheat FG0011 NuHeat F1509 60 x 36 Inch 110 Volt 176 W Mat

Product Description

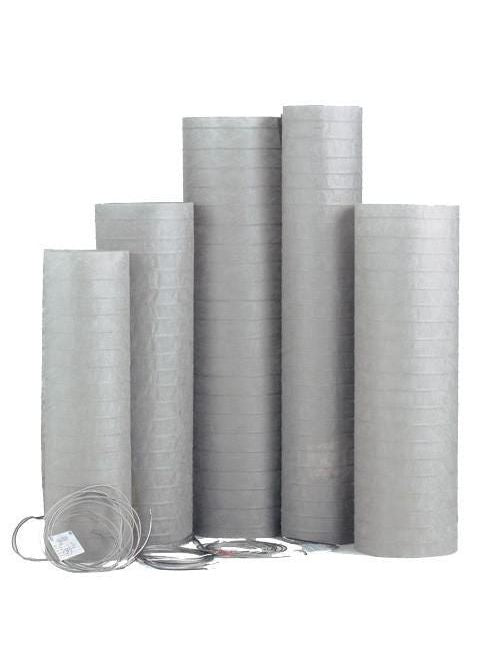

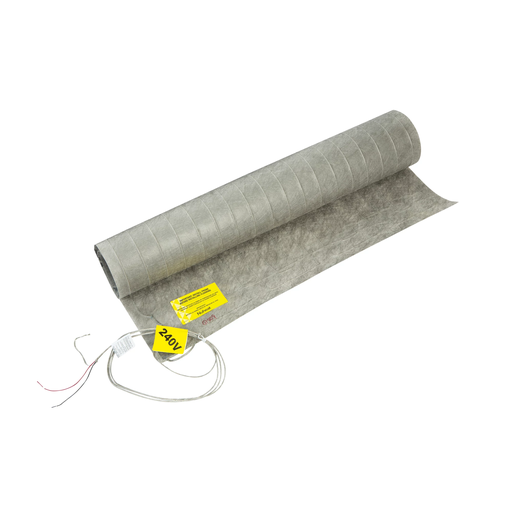

The nVent Nuheat FG0011 is a floor heating mat designed to be installed under various floor types including tile, marble, natural stone, and laminate. It offers a customizable solution available in over seventy standard sizes. This product is suitable for heating areas such as shower floors and benches, making it ideal for both renovation projects and new constructions.

• Custom sizes available for unique room shapes.
• Low operating cost and energy efficiency.
• Backed by a 25-year warranty for peace of mind.

Product Highlights

Easy installation is a key benefit, with the mat requiring minimal configuration. It operates at low wattage while providing effective heating. The mat’s thickness is only one-eighth of an inch, allowing for seamless integration into floors.

Product Information

Standard Information

• Brand: nVent Nuheat
• MPN: FG0011

Technical Specifications

• Type: Standard
• Width: 36 inches
• Length: 60 inches
• Voltage: 120 Volt
• Wattage: 180 Watt
• Amperage: 1.5 Amps
• Coverage: 15 ft
• Material: Fabric
• Cord Size: 18 AWG
• Thickness: 1/8 inch
• Bend Radius: 5/8 inch
• Cord Length: 10 ft
• Temperature Rating: 194 degrees F Maximum Exposure, 50 degrees F Minimum Installation
