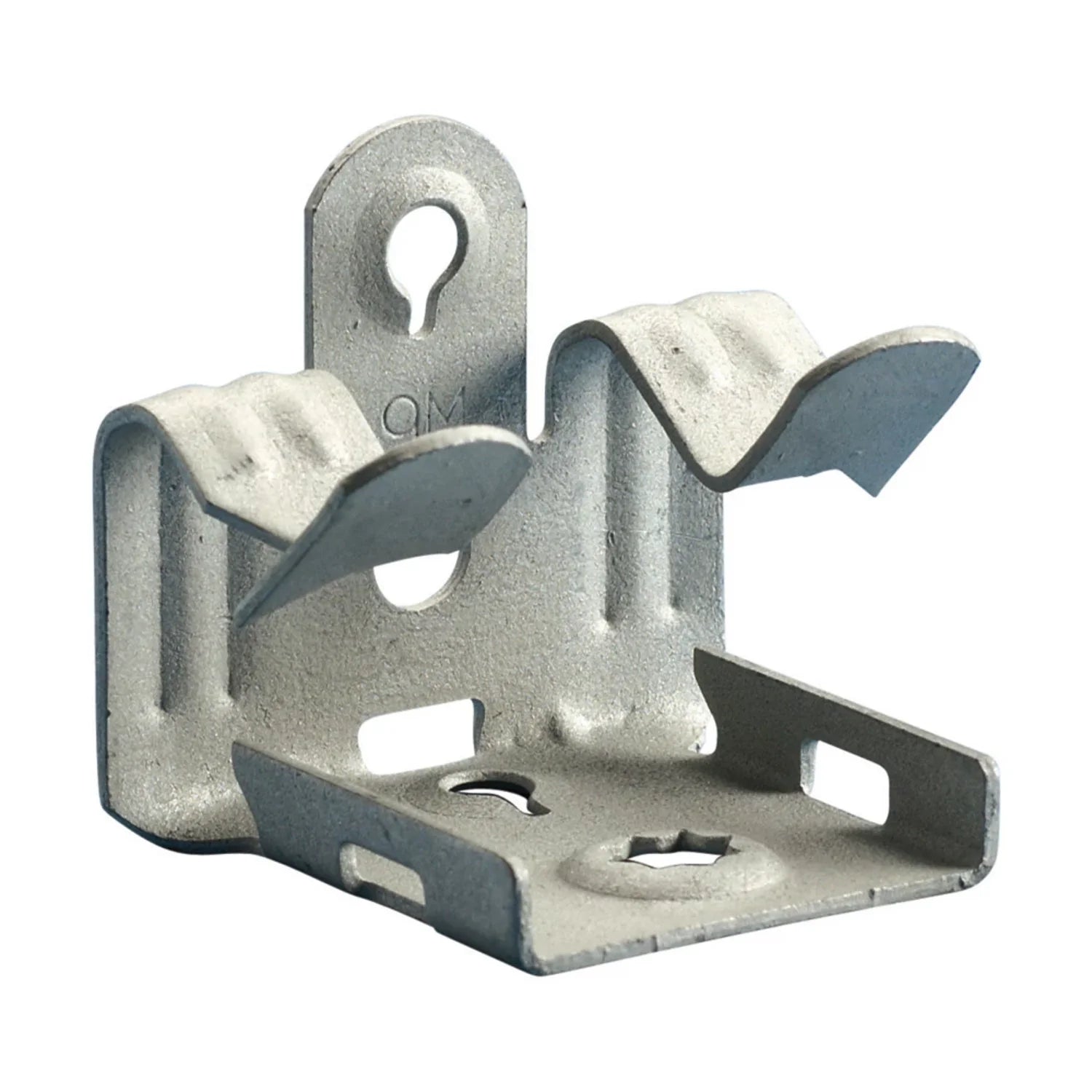

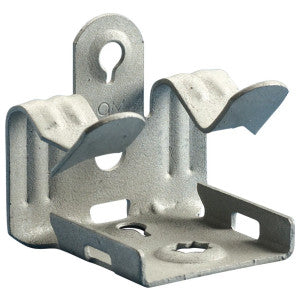

Nvent M912 Hammer-On Flange Clip, Bottom Mount, Spring Steel, 14–20 mm Flange

Product Description

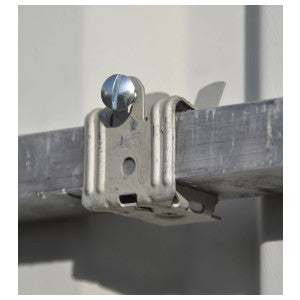

The NVENT M912 hammer-on flange clip is a spring steel, bottom mount clip designed for supporting boxes, fixtures, and other applications from beam flanges. It requires only a hammer for installation. Assorted attachment points are provided to reduce inventory.

• Can be used to support boxes, fixtures or other applications from beam flanges
• Assorted attachment points provided to reduce inventory
• Requires only a hammer to install

Product Highlights

Bottom-mount hammer-on flange clips are used to support pipe from beam flanges and require only a hammer to install.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: M912
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• Flange Thickness (FT): 14 - 20 mm
• Rod Size (RS): 6
• Static Load 1 (F1): 440N
• Static Load 2 (F2): 330N
• Static Load 3 (F3): 110N
• Use With: Boxes and Fixtures
• Rod Size: 1/4 in.
• Flange: 9/16 to 3/4 in.
