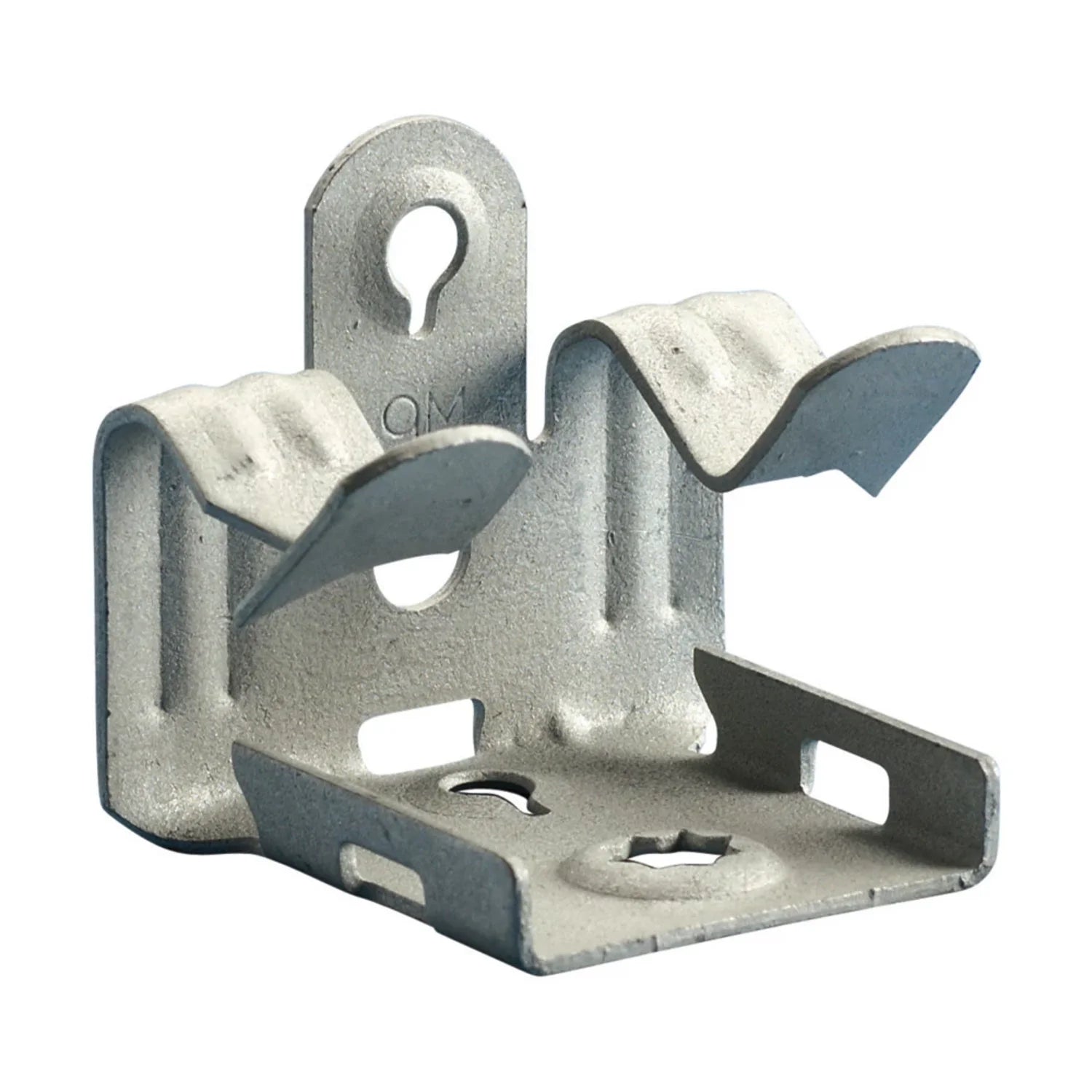

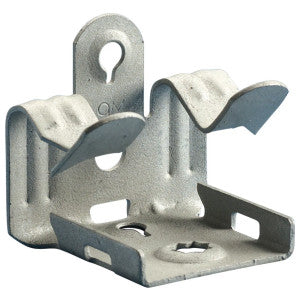

Nvent M58 Hammer-On Flange Clip, Bottom Mount, Spring Steel, 5/16 inches-1/2 inches Flange

Product Description

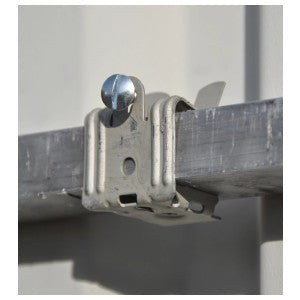

The NVENT CADDY M58 is a hammer-on flange clip designed for bottom mounting. It can be used to support boxes, fixtures, or other applications from beam flanges. It features assorted attachment points to reduce inventory and requires only a hammer to install.

• Can be used to support boxes, fixtures or other applications from beam flanges
• Assorted attachment points provided to reduce inventory
• Requires only a hammer to install

Product Highlights

The M58 hammer-on flange clip is made of spring steel with CADDY Armour finish. It supports 1/4" rod and 5/16"-1/2" flange.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: M58
• Country of Origin: US

Technical Specifications

• Material: Spring Steel
• Finish: Caddy Armor
• Flange Thickness (FT): 5/16" - 1/2"
• Rod Size (RS): 1/4"
• Static Load 1 (F1): 100lb
• Static Load 2 (F2): 25lb
• Static Load 3 (F3): 75lb
• UPC: 782856171003
• EAN: 0782856171003
• BABA Compliant: Yes
• Country of Origin: US
• Flange Thickness: 5/16 to 1/2 in
• Load Capacity: 25/75/100 lb
• Manufacturer: nVent
• Mounting Type: Side
• Series: H-PSM
• Suitable For Use With: Universal Clamp, Conduit Clip, Structural Beam/Purlin, Box and Fixture
• Type / Style: Hammer-On
• ECCN: EAR99
• UNSPSC: 31162905
• Use With: Boxes and Fixtures
• Product Type: CLAMP
• RoHS Compliant: NOT DECLARED
• Quality Standard: COMMERCIAL RELEASE
• UNSPSC Code: 31162900
