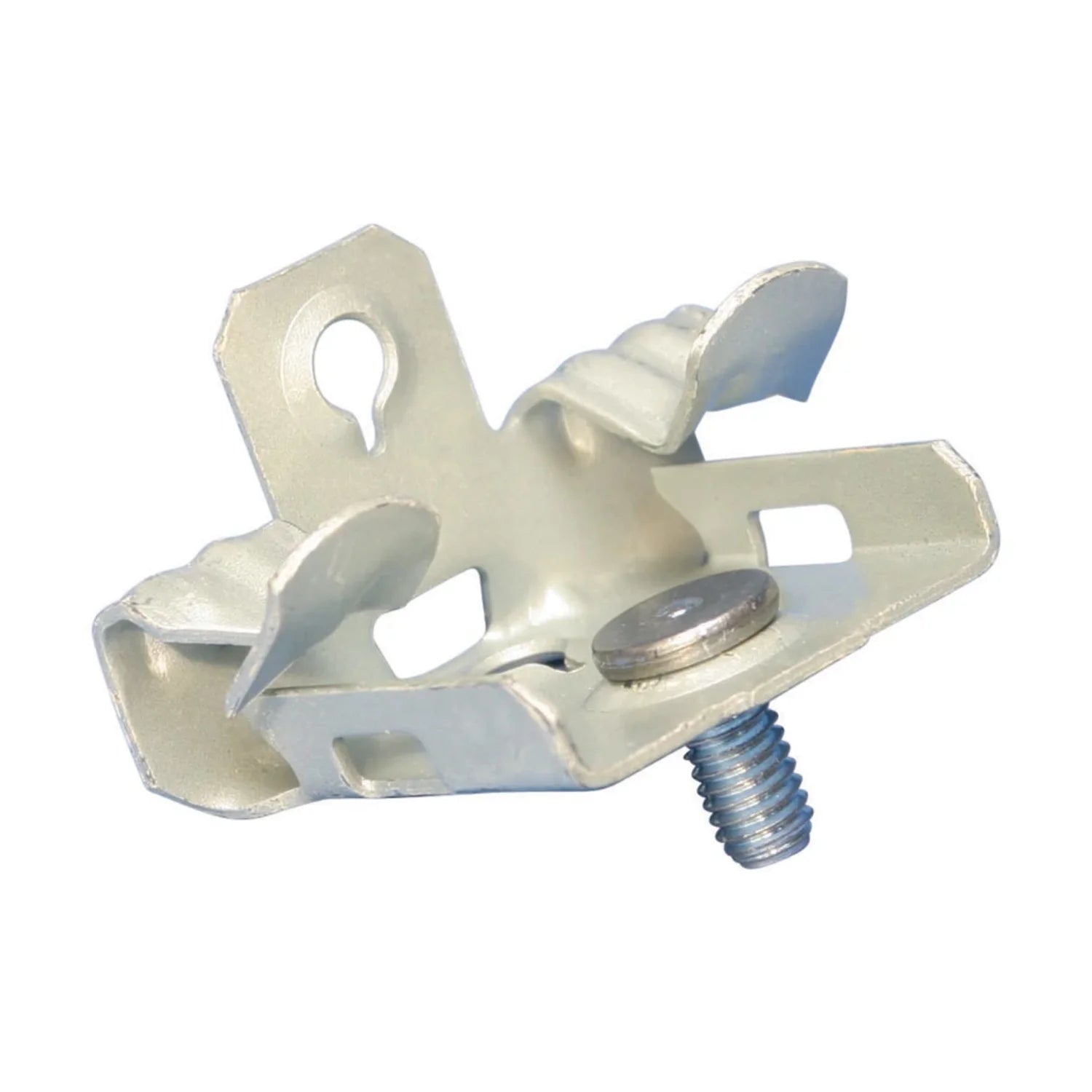

Nvent M24S CADDY Hammer-On Flange Clip, Bottom Mount with Stud, Spring Steel, 1/8 inches-1/4 inches Flange

Product Description

The NVENT CADDY M24S is a hammer-on flange clip designed to support boxes, fixtures, and other applications from beam flanges. It features a captive threaded stud to minimize the need for extra hardware. Assorted attachment points are provided to reduce inventory and requires only a hammer to install.

• Can be used to support boxes, fixtures or other applications from beam flanges
• Captive threaded stud minimizes the need for additional hardware
• Assorted attachment points provided to reduce inventory

Product Highlights

The NVENT CADDY M24S is easy to install and provides flexibility for various cable and conduit applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: M24S

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• Flange Thickness (FT): 1/8" - 1/4"
• Rod Size (RS): 1/4"
• Screw Diameter (Sc): 1/4"
• Screw Length (L): 3/8"
• Static Load 1 (F1): 100lb
• Static Load 2 (F2): 75lb
• Static Load 3 (F3): 25lb
• Load Capacity: 440 N
• Type: Hammer-On Flange Clip, Bottom Mount with Stud
• Series: nVent CADDY
• Flange Size: 1/8 - 1/4 in
• Mounting Type: Bottom Mount with Stud
• Applications: Acoustical, Ceiling and Partitioning, Datacom and Low-Voltage, Electrical, Fire Sprinkler, HVAC, Plumbing and Refrigeration
• Standard: CULus ®
• Brand: nVent Caddy
• Sub Brand: CADDY
