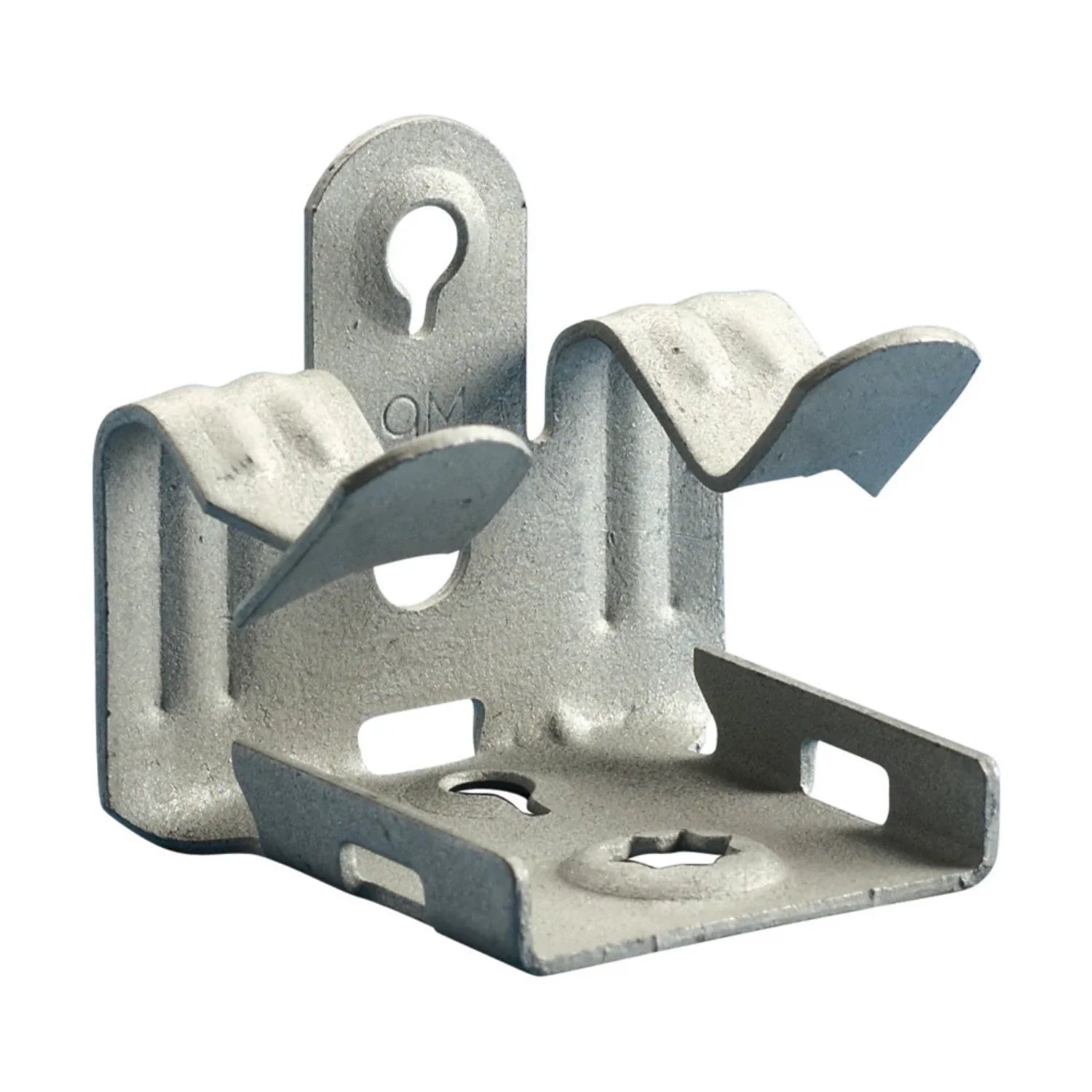

Nvent M24 Hammer-On Flange Clip 1/8-1/4 inches Flange

Product Description

The NVENT M24 Hammer-On Flange Clip is designed to support boxes, fixtures, and other applications from beam flanges. It requires only a hammer for installation. Assorted attachment points are provided to reduce inventory. It is BABA compliant and cULus Listed.

• Can be used to support boxes, fixtures or other applications from beam flanges
• Assorted attachment points provided to reduce inventory
• Requires only a hammer to install

Product Highlights

The NVENT M24 clip is easy to install with just a hammer and provides multiple attachment points.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: M24

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• Flange Thickness (FT): 1/8" - 1/4"
• Rod Size (RS): 1/4"
• Static Load 1 (F1): 100lb
• Static Load 2 (F2): 25lb
• Static Load 3 (F3): 75lb
• UPC: 782856161004
• EAN: 0782856161004
• Standard Packaging Quantity: 100
• Packing Quantity: 1
• BABA Compliant: BABA Compliant
• Trade Size: 1/8 to 1/4IN
• Application: To support boxes, fixtures or other applications from beam flanges
• Load Capacity: 100 lb
• Product Name: Hammer-On Flange Clip
• Rod Size: 0.25
• Special Features: CLIP,FLANGE,HAMMER ON 1/81/4 FLANGE
• Standard: BABA Compliant, cULus Listed
• Type: Hammer-On Flange Clips
• Specifications: 1/4 in Rod, Bottom Mount
• Flange Thickness: 1/8 to 1/4 in
• MPN: M24
• Brand: NVENT CADDY
• Compatible Brand: NVENT CADDY
• Model: M24
• Compatible Model: M24
