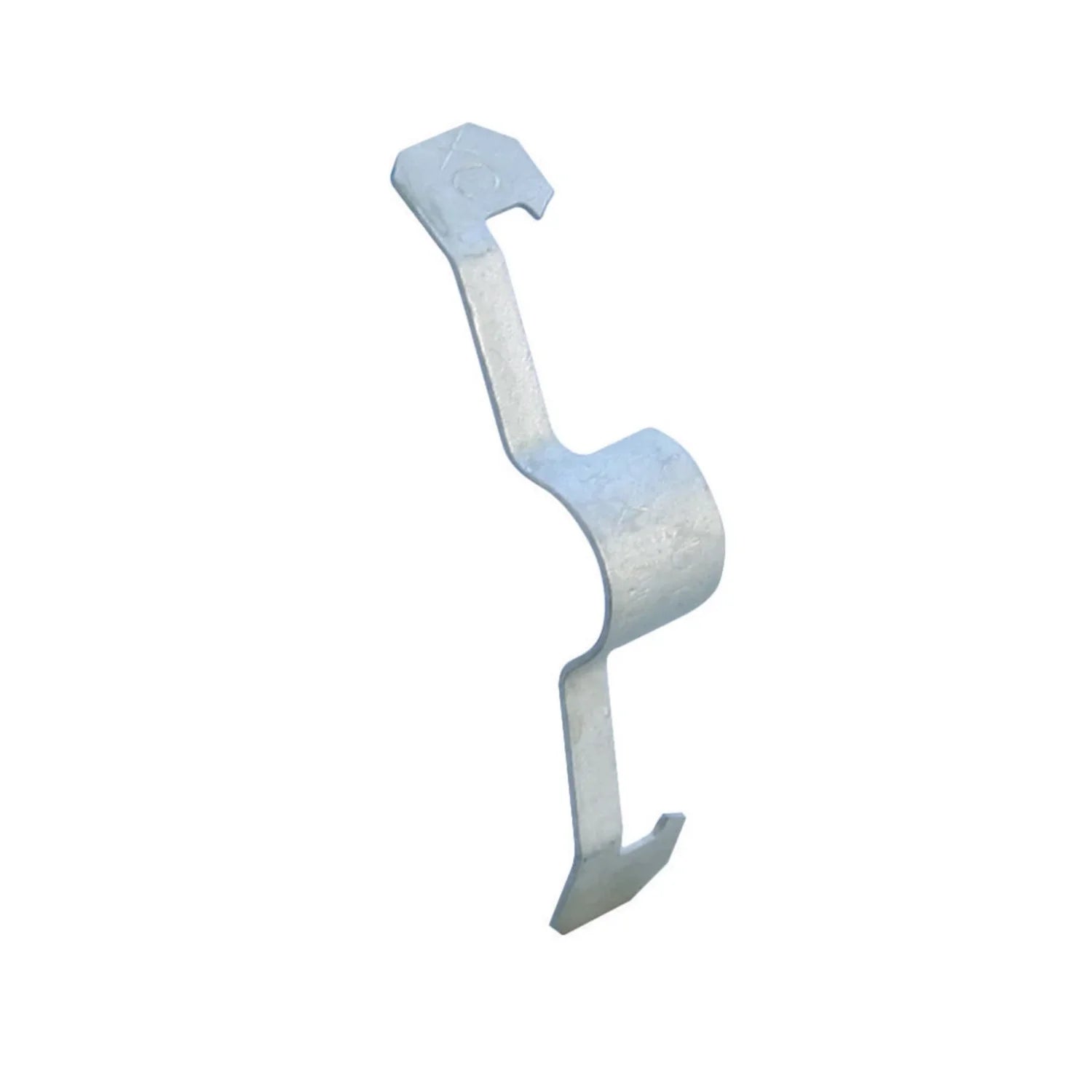

Nvent KX Cable/Conduit Clip, 14-2 to 12-3 MC/AC, 0.472 inches Max

Product Description

The NVENT KX is a cable/conduit clip that supports conduit to rod, wire, or flange. It can also be used for flexible metallic tubing, armored cable, portable cables, control tubes, and communications cable. It is available for EMT, rigid, ENT, IMT, MC/AC and aluminum conduit and requires no installation tools.

• Supports conduit to rod, wire or flange
• Can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable
• Available for EMT, rigid, ENT, IMT, MC/AC and aluminum conduit

Product Highlights

The NVENT KX cable/conduit clip provides a tool-free method to secure conduit and armored cable to threaded rod or wire.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: KX
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• MC/AC Cable Size: 14-2 to 12-3
• Outer Diameter (OD): 0.47" Max
• Cable Size: #12 Wire, #8, #9, #10 Wire, 14-2 (.433" - .475" OD), 14-3 (.453" - .500" OD), 12-2 (.467" - .510" OD), 12-3 (.489" - .535" OD)
• Applications: Datacom and Low-Voltage, Electrical
• Type: Cable/Conduit Clip
• Brand: nVent Caddy
• Sub Brand: CADDY
• Use With: MC/AC/BX Cable
• Wire Size: 14/2 to 12/3 AWG
• Outside Diameter: 0.472 in
• Flange Size: 3 to 5 mm THK
• Mounting Type: Surface
• Suitable For Use With: 14/2 to 12/3 AWG MC/AC Cable, EMT, Rigid, ENT, IMT and Aluminum Conduit
• Manufacturer Name: nVent
• Certifications: UL ANSI/UL 2239 cUL CAN/CSA C22.2 No. 18.4-04
