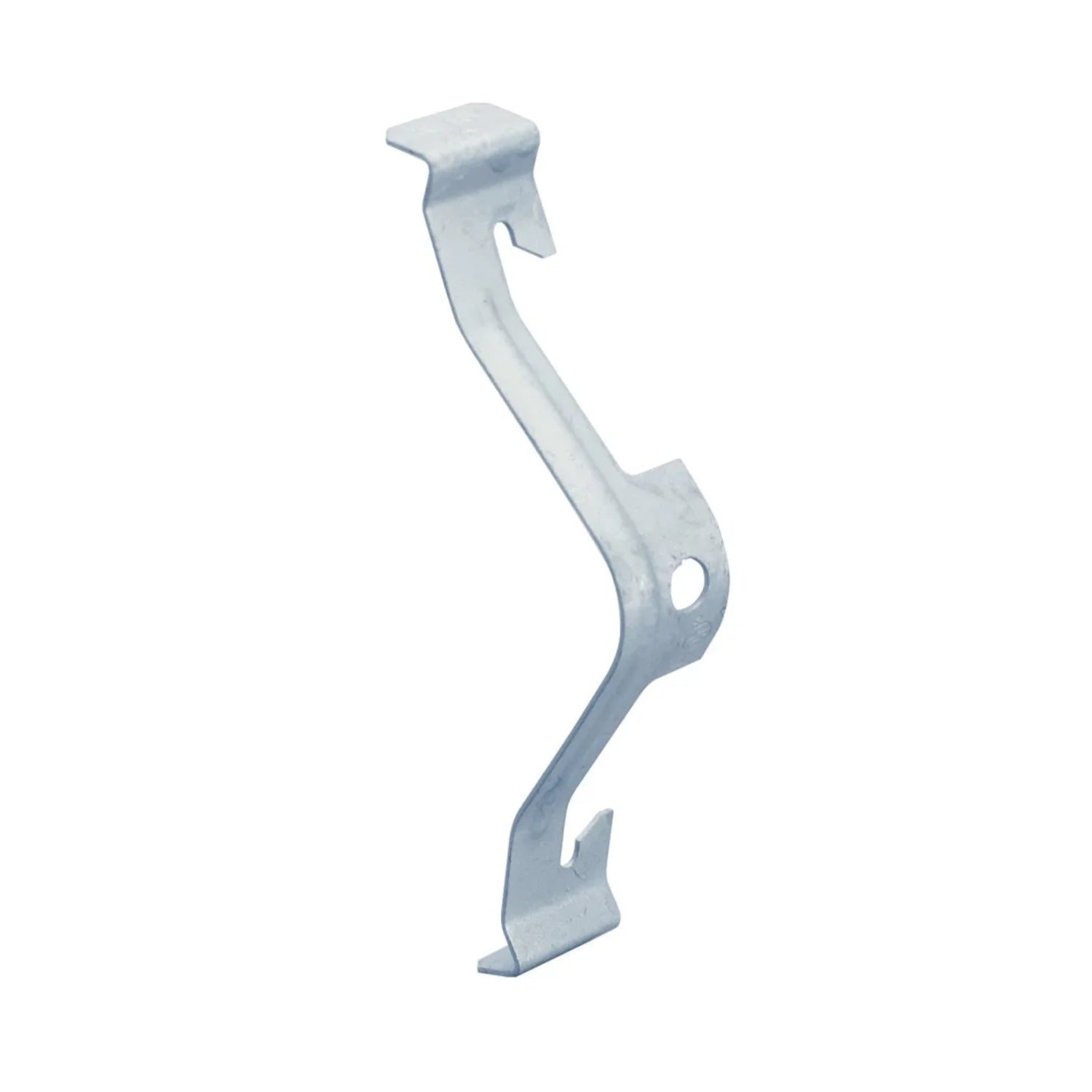

Nvent K16 Cable/Conduit Clip 3/4 inches, 1 inches EMT, 1/2 inches, 3/4 inches Rigid, 1.181 inches Max

Product Description

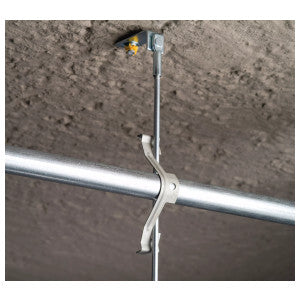

The NVENT K16 Cable/Conduit Clip supports conduit to rod, wire, or flange. It can also be used for flexible metallic tubing, armored cable, portable cables, control tubes, and communications cable. It is available for EMT, rigid, ENT, IMT, MC/AC, and aluminum conduit.

• Supports conduit to rod, wire or flange
• Can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable
• Available for EMT, rigid, ENT, IMT, MC/AC and aluminum conduit

Product Highlights

This clip requires no installation tools and supports a variety of conduit types.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: K16
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: nVent CADDY Armour
• EMT Conduit Size: 3/4";1"
• Rigid Conduit Size: 1/2";3/4"
• Outer Diameter (OD): 1.18" Max
• Static Load 1 (F1): 50lb
• Static Load 2 (F2): 100lb
• Static Load 3 (F3): 15lb
• Cable Size: #12 Wire
• Conduit Size: 1/2 in, 3/4 in, 1 in
• Load Capacity: 25/50/100 lb Static
• Outside Diameter: 1.181 in
• Suitable For Use With: EMT/Rigid Conduit
• Use With: EMT Conduits
• Wire Size: 8 AWG, 9 AWG
• Rod Size: 3/16 in, 1/4 in
• Flange Size: 1/8 to 1/2 in THK
• Manufacturer Part Number: K16
