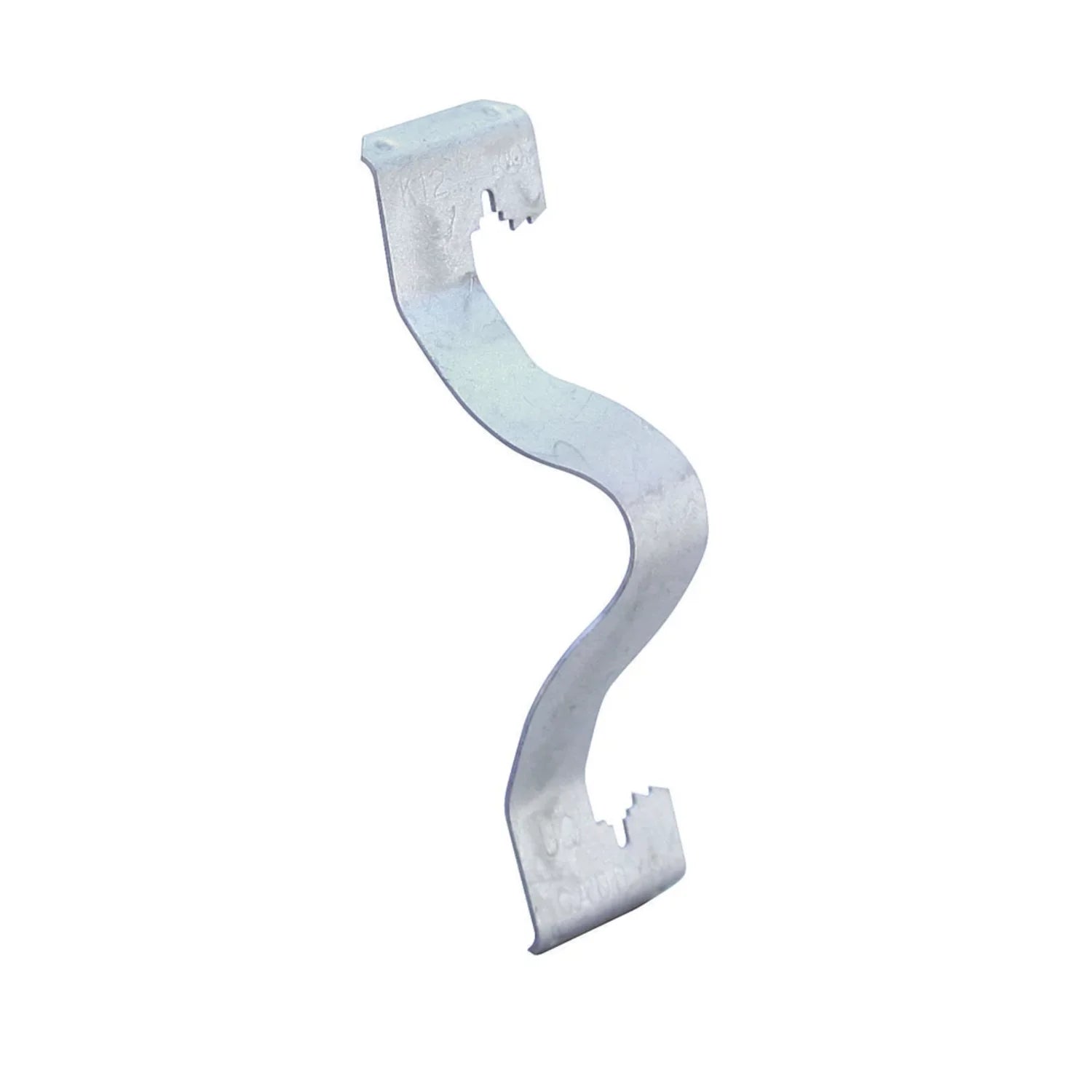

Nvent K12 Caddy Cable/Conduit Clip 1/2 inches, 3/4 inches EMT, 1/2 inches, 3/4 inches Rigid, 0.945 inches Max

Product Description

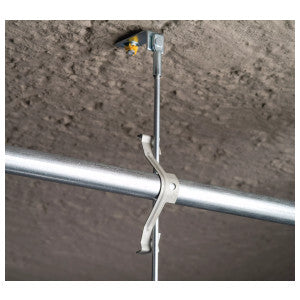

The NVENT Caddy K12 cable/conduit clip supports conduit to rod, wire, or flange. It can also be used for flexible metallic tubing, armored cable, portable cables, control tubes, and communications cable. It is available for EMT, rigid, ENT, IMT, MC/AC, and aluminum conduit, and requires no installation tools.

• Supports conduit to rod, wire or flange
• Can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable
• Available for EMT, rigid, ENT, IMT, MC/AC and aluminum conduit

Product Highlights

The NVENT Caddy K12 clip is a versatile solution for supporting various types of conduit and cable, offering easy installation without the need for special tools.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: K12
• Country of Origin: US - United States

Technical Specifications

• Material: Spring Steel
• Finish: CADDY ARMOUR
• EMT Conduit Size: 1/2", 3/4", 1"
• Rigid Conduit Size: 1/2", 3/4"
• Outer Diameter (OD): 0.945" Max
• Certifications: cULus
• Static Load 1 (F1): 50lb
• Static Load 2 (F2): 100lb
• Static Load 3 (F3): 15lb
• Cable Size: #12 Wire
• #8, #9, #10 Wire: KX
• Part Number: K12
• Use With: EMT Conduits
• Load Capacity: 15/50/100 lb
• Wire Size: 8 AWG, 9 AWG, 10 AWG, 12 AWG
• Outside Diameter: 0.945 in
• Conduit Size: 1/2 in, 3/4 in
• Rod Size: 3/16 in, 1/4 in
• Flange Size: 1/8 to 1/2 in THK
• Suitable For Use With: EMT, Rigid, ENT, IMT and Aluminum Conduit and MC/AC Cable
• Standards: Build America Buy America Compliant
