Nvent Hoffman WS483616SS Ws483616ss Hof 48x36x16 in

Product Description

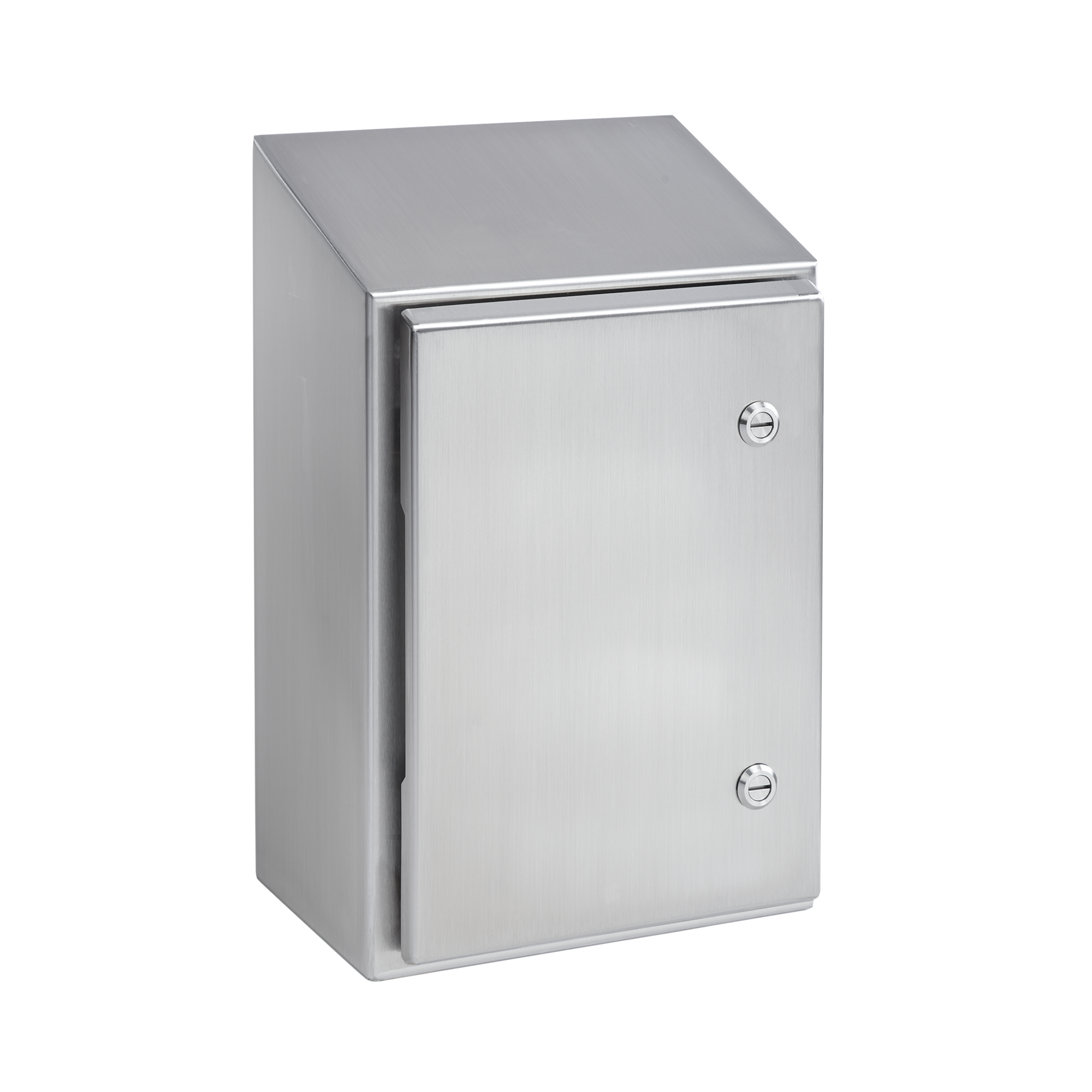

The NVENT HOFFMAN WS483616SS WaterShed Wallmount enclosure is specifically designed for sanitary washdown production environments, especially in food and beverage manufacturing. This Type 4X enclosure features a sloped top, sloped door edges and bullet-style hinges to facilitate washdown runoff. It measures 48.00x36.00x16.00 in.

• Constructed from 14 ga Type 304 stainless steel with a brushed finish
• Features continuously welded and ground smooth seams
• Offers a 20-degree sloped top to facilitate runoff

Product Highlights

The NVENT HOFFMAN WS483616SS enclosure is ideal for hygienic and corrosive environments requiring NEMA 4X protection.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: WS483616SS
• Country of Origin: MX

Technical Specifications

• Depth: 16 in
• Width: 36 in
• Finish: Brushed #4
• Height: 48 in
• Material: Stainless Steel 304
• IP Rating: IP66
• NEMA Rating: 4X Watertight, corrosion-resistant
• Latch Quantity: 5
• Product Family: WaterShed
• Thickness: 2 mm
• Thickness (Imperial): 14 ga
• Brand: nVent Hoffman
• Type: Single Door, Five Lock
• Sub Brand: Watershed
• Applications: Hygienic Environments; Corrosive Environments; Controls and Drives
• Mounting Type: Wall
• Series: WS1
• Cover Type: Bullet Hinged/Lift-Off
• Lock: Quarter Turn Latch
• Material Specification: 14 Gauge
• Enclosure: NEMA 4/4X/12, IP66
• ROHS Compliant: True
• Number of Latches: 5
• Panel Type: A48P36SS6
• Standards: UL 508A Listed, Type 4, 4X, 12, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, File No. E61997, NSF 169, NEMA/EEMAC Type 4, 4X, 12, IEC 60529, RoHS Compliant
