Nvent Hoffman Ljbk J-Bolt Kit, Steel

Product Description

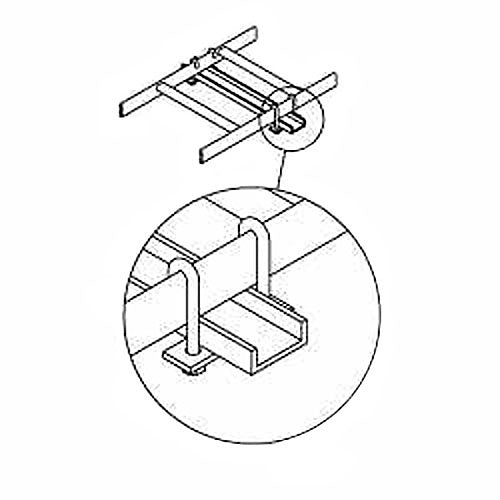

The NVENT HOFFMAN LJBK J-Bolt Kit connects ladder rack to the top of a cabinet or to auxiliary support channel. Each kit includes two J-bolts and makes one support connection and includes mounting hardware. It is designed for networking, storage, and data center applications.

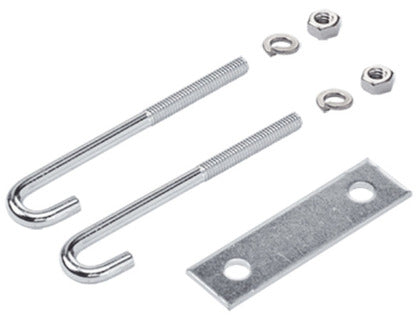

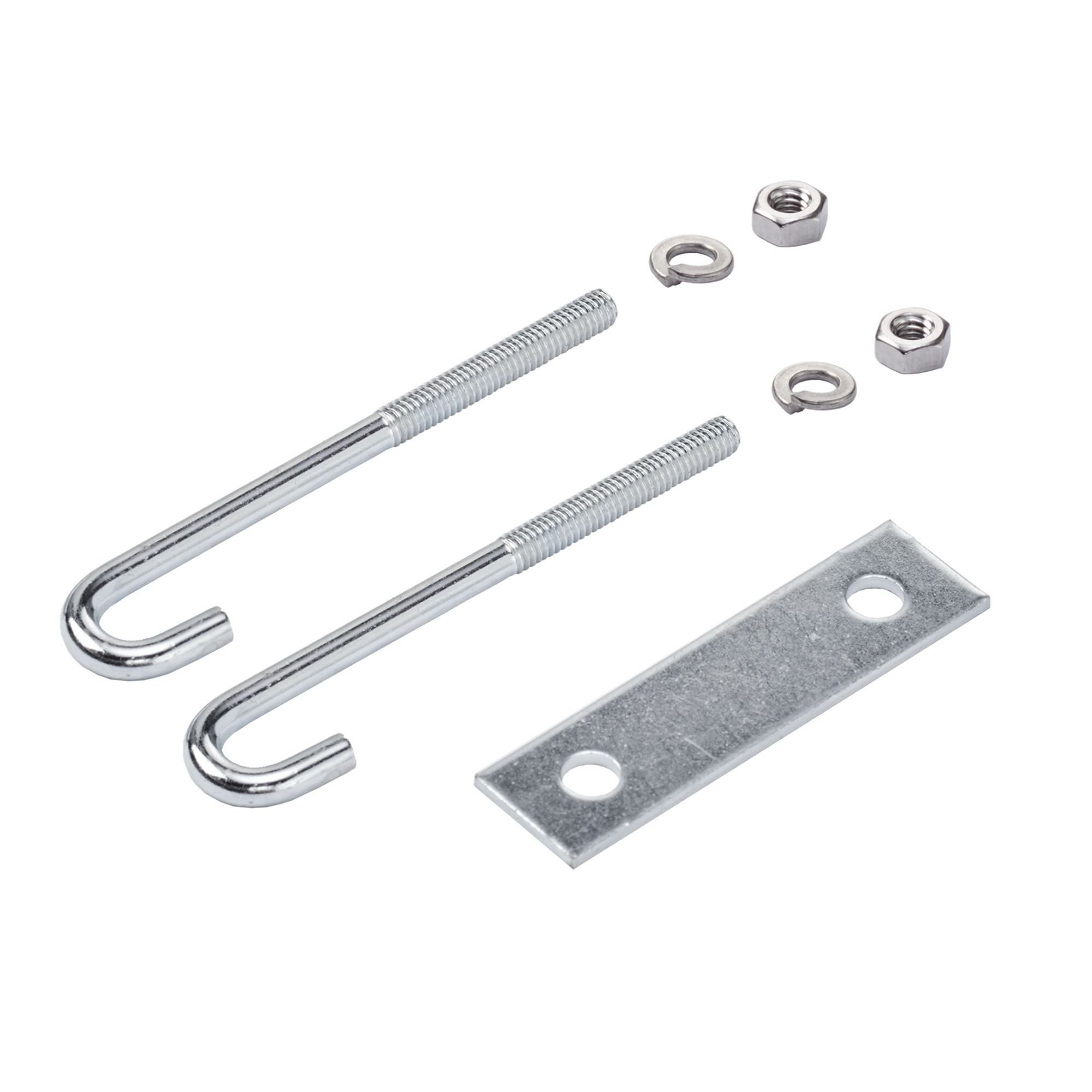

• Each kit includes two J-bolts and makes one support connection
• The kit also includes mounting hardware
• Kit components are plated steel

Product Highlights

Connects ladder rack to top of cabinet or to auxiliary support channel. Each kit includes two J-bolts and mounting hardware.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: LJBK
• Country of Origin: US

Technical Specifications

• Material: Mild Steel
• Brand Name: nVent Hoffman
• Product Type: J-Bolt
• TAA Compliant: no
• Manufacturer Part Number: LJBK
• Type: J-Bolt Kit
• Finish: Zinc Plated
• Applications: Networking, Storage and Data Center
• Suitable For Use With: Ladder Rack Systems
• Series: DCR
• Includes: Mounting Hardware, (2) 5/16 Inch J-Bolt, (2) 5/16 Inch Nut, (2) 5/16 Inch Washer, (2) 5/16 Inch Lock Washer, (1) Plate
• Approval: UL (Canada and US)
• Size: 3.5 Inch L
• Application: Networking, Storage and Data Center
• Catalog Number: LJBK
• Country of Origin: US
• Harmonization Tariff Schedule Code: 7308909590
• Height: 0.2500 in
• Item Group: DCR
• Length: 5.0000 in
• Width: 7.2500 in
• Manufacturer: HOFFMAN ENCLOSURES
• Weight: 0.3 lb
• Made in USA: Yes
• UPC: 783510100810
• GTIN: 00783510100810
• Bulletin Number: DCR
