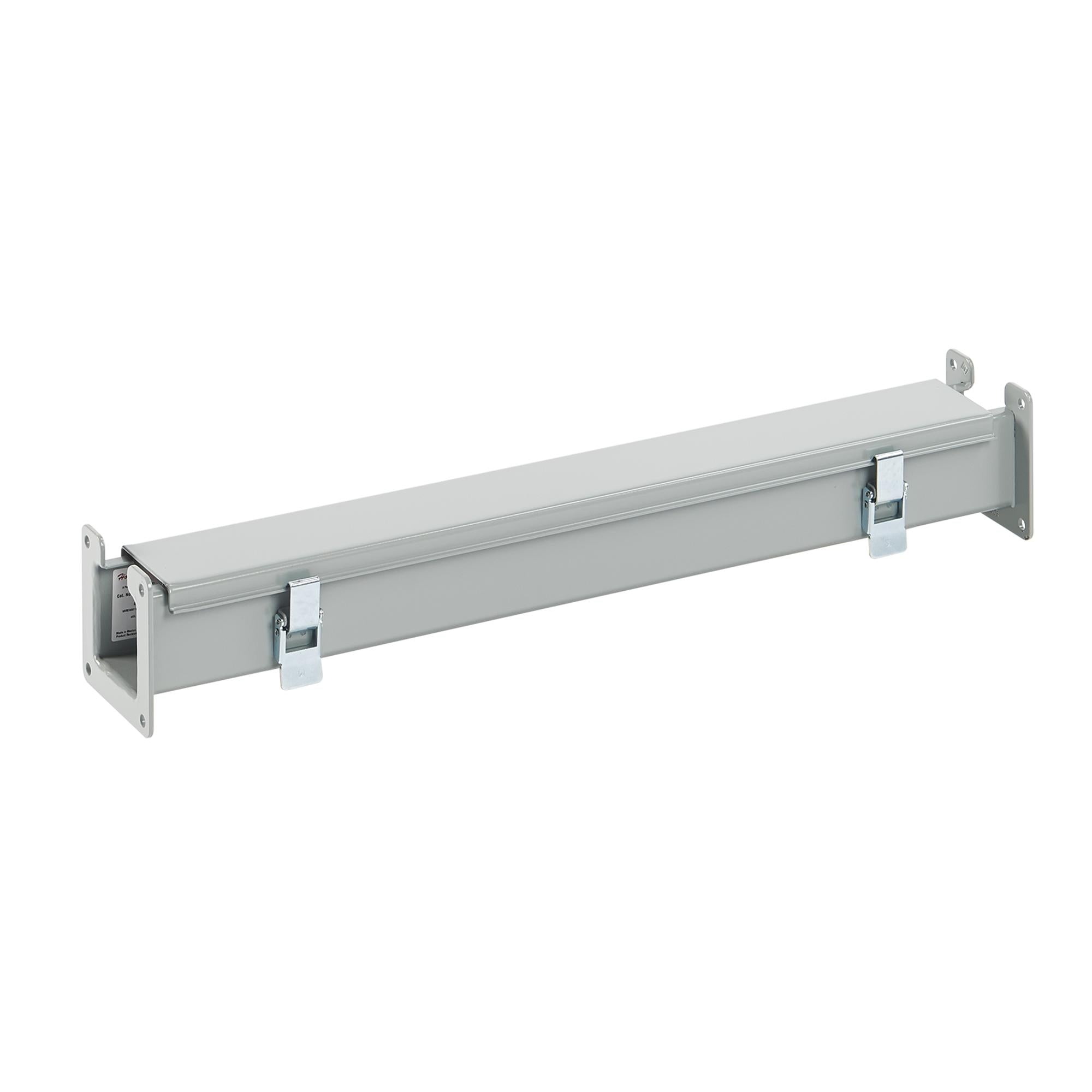

Nvent Hoffman F66L24 Straight Section Lay-in Hinged Cover Type 12, 6.00x6.00x24.00

Product Description

The NVENT HOFFMAN F66L24 straight section lay-in hinged cover is a type 12 wireway, measuring 6.00x6.00x24.00. Primarily used in industrial applications, this wireway protects wiring against oil and contaminants. The gasketed wireway features quick-release latches for easy access and an opening for laying wires and cables without pulling.

• Protects wiring against exposure to oil and other contaminants
• Features quick-release latches for easy access
• Allows wires and cables to be laid in along the entire run without pulling

Product Highlights

NVENT HOFFMAN F66L24 is ideal for industrial environments, ensuring protection and easy access to wiring.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: F66L24
• Country of Origin: Mexico

Technical Specifications

• Color: Gray
• Width: 6 in
• Finish: Galvanized
• Height: 6 in
• Wireway: Lay-In NEMA Type 12 Wireway
• Material: Mild Steel
• IP Rating: IP54
• Color Code: ANSI 61
• NEMA Rating: 12 Indoor, dust-resistant
• Type Number: Type 12
• Protection Rating: NEMA Type 12
• Sealing Plate Type: Flat
• Thickness: 14 ga
• Sealing Plate Quantity: 1
• Type: Straight Section
• Length: 24 in
• Applications: Power Distribution
• Gauge: 14 ga
• Cover Type: Hinged Cover with Quick-Release Latches
• Cover Locking Style: Latch
• Enclosure: NEMA 12, IP54
• Approval: UL 870, CSA
• Applicable Standard: IEC 60529
• Flange Material: 10 Gauge Steel
• ROHS Compliant: True
• UNSPSC: 39131710
