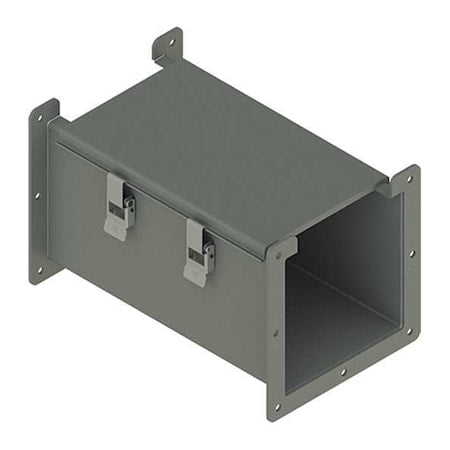

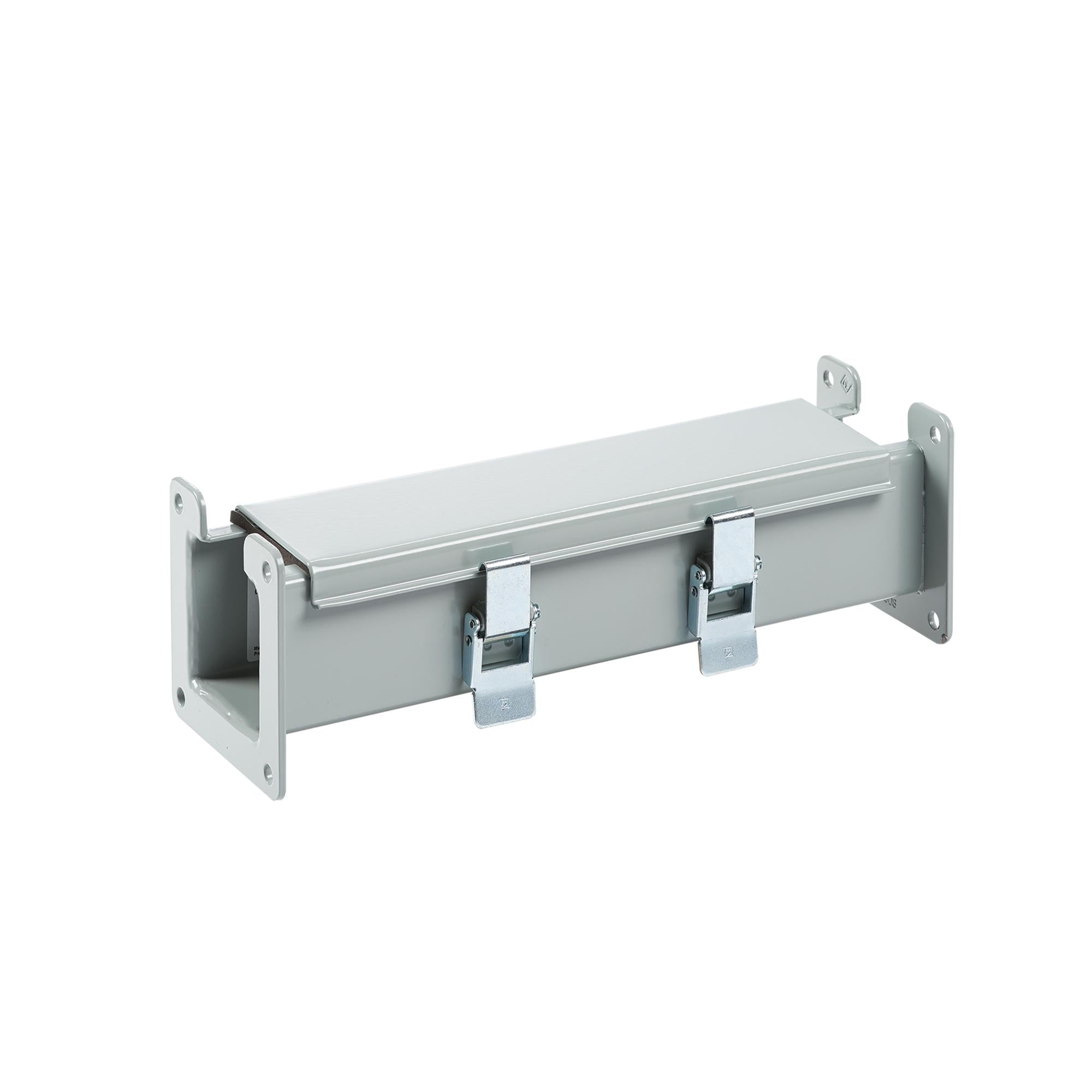

Nvent Hoffman F66L12 Straight Section Lay-in Hinged Cover Type 12, 6.00x6.00x12.00

Product Description

The NVENT HOFFMAN F66L12 straight section lay-in hinged cover is a type 12 wireway with dimensions of 6.00x6.00x12.00. Primarily used in industrial applications, this wireway protects wiring against exposure to oil and other contaminants. It features quick-release latches for easy access and an opening for laying in wires and cables without pulling.

• Protects wiring against exposure to oil and other contaminants.
• Features quick-release latches for easy access.
• Allows wires and cables to be laid in along the entire run without pulling.

Product Highlights

This NEMA Type 12 wireway is ideal for power distribution, featuring a hinged cover with quick-release latches for easy access.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: F66L12
• Country of Origin: Mexico

Technical Specifications

• Application: Power Distribution
• Color: Gray
• Width: 6 in
• Finish: Galvanized
• Height: 6 in
• Wireway: Lay-In NEMA Type 12 Wireway
• Material: Mild Steel
• IP Rating: IP54
• Color Code: ANSI 61
• NEMA Rating: 12 Indoor, dust-resistant
• Type Number: Type 12
• Depth (Imperial): 12 in
• Protection Rating: NEMA Type 12
• Sealing Plate Type: Flat
• Thickness: 1.9 mm
• Gauge: 14 ga
• Type: Straight Section
• Brand: nVent Hoffman
• Length: 12 in
• Applications: Power Distribution
• Cover Type: Butt Hinged, Latched
• Knockouts: No
• Enclosure: NEMA 12, IP54
• Approval: UL 870, CSA
• Applicable Standard: IEC 60529
• Flange Material: 10 Gauge Steel
• ROHS Compliant: True
• Material Gauge: 1.897 mm
• ECCN: EAR99
• Color Family: Gray
