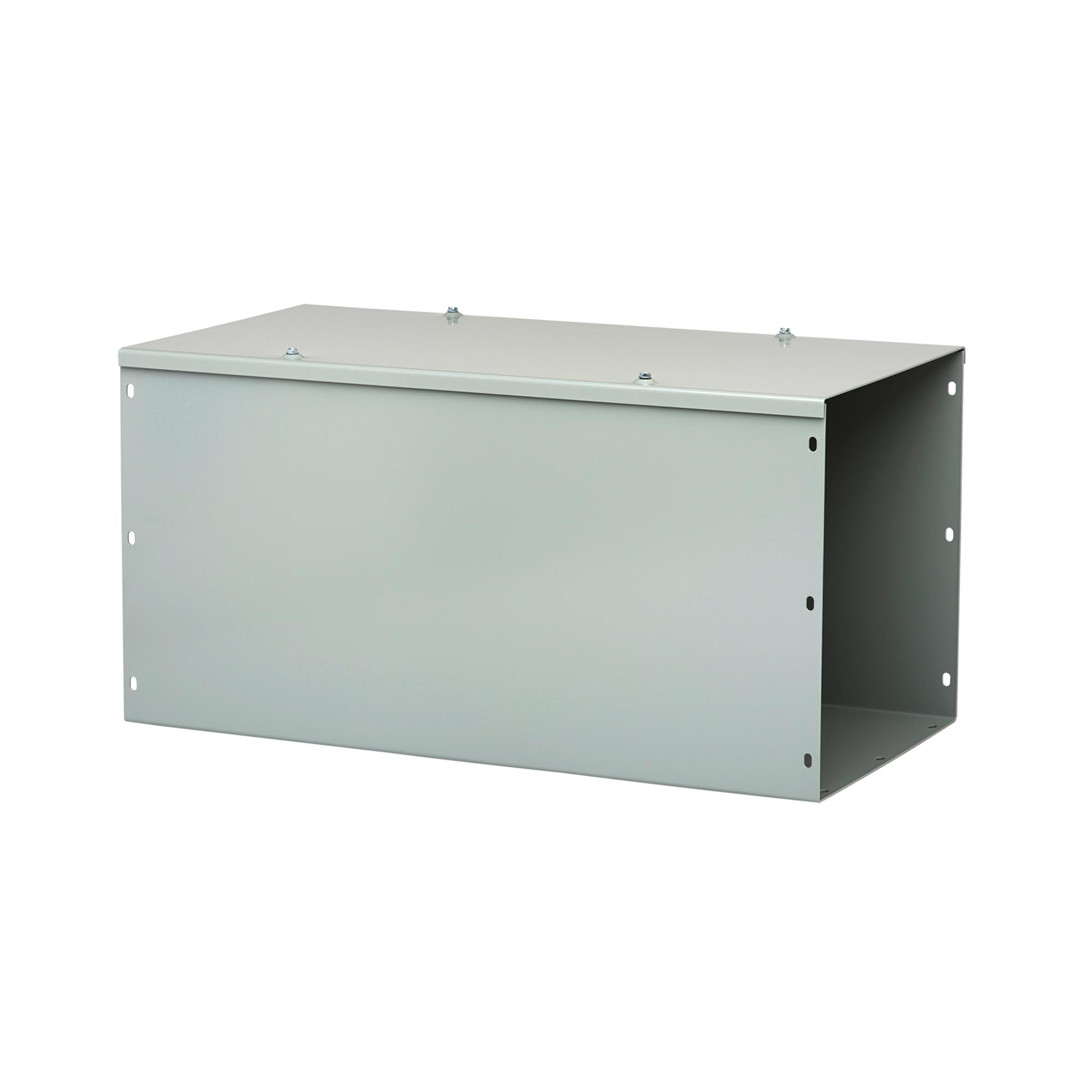

Nvent Hoffman F66G96 Straight Section Lay-in Hinged-Cover Type 1 No Kos, 6x6x96

Product Description

The NVENT HOFFMAN F66G96 straight section is a lay-in hinged-cover Type 1 enclosure designed for wire and cable management. These sections are open on one side, allowing wires and cables to be laid in, preventing insulation damage. It measures 6x6x96 inches and is constructed of mild steel with a powder-coated finish.

• Used for enclosing wire and cable in wireway runs.
• Open design allows wires and cables to be laid in easily.
• Prevents damage to insulation.

Product Highlights

The F66G96 straight section provides a protective enclosure for wire and cable, simplifying installation and maintenance.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: F66G96
• Country of Origin: Mexico

Technical Specifications

• Width: 6 in
• Finish: Powder Coated
• Height: 6 in
• Wireway: Lay-In NEMA Type 1 Hinged-Cover Wireway
• Material: Mild Steel
• IP Rating: IP30
• Knockouts: No
• Color Code: ANSI 61
• NEMA Rating: 1 Indoor, electrical protection
• Type Number: Type 1
• Protection Rating: NEMA Type 1
• Thickness (Imperial): 16 ga
• Type: Straight Section
• Brand: nVent Hoffman
• Length: 96 Inch
• Sub Brand: Hoffman
• Applications: Power Distribution
• Manufacturer: nVent
• Item Type: Straight Section
• Series: F40
• Cover Type: Combination Hinged, Screw
• Enclosure: NEMA 1, IP30
• Approval: UL 870, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• Number of Knockouts: 0
• Cover Style: Hinge
• Bulletin Number: F40
• Color: Gray
