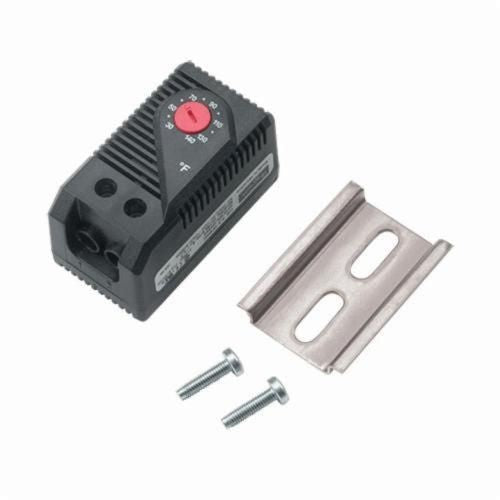

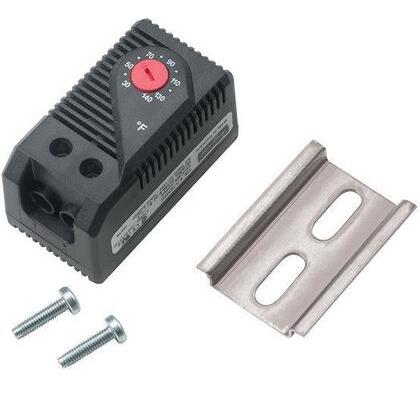

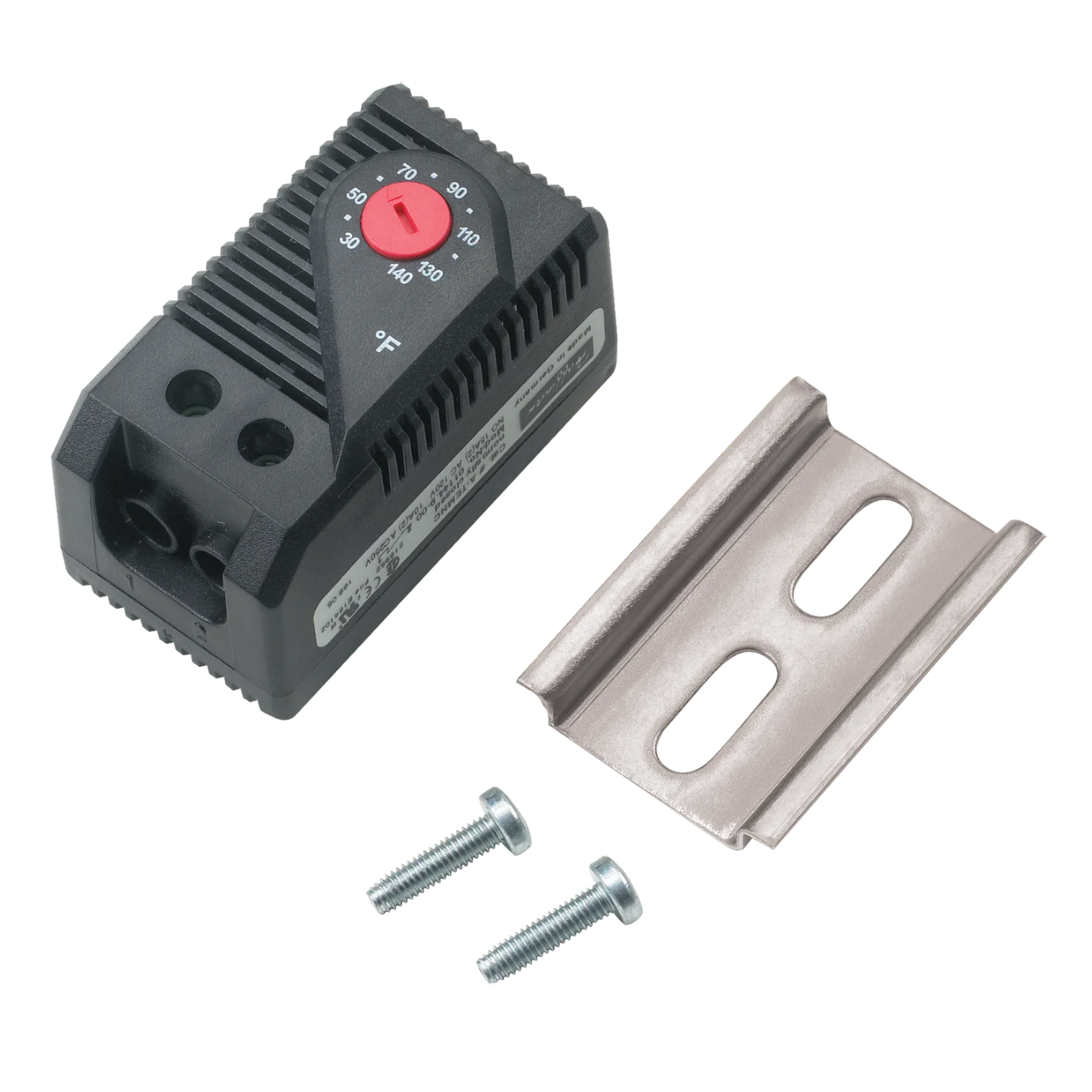

Nvent Hoffman ATEMNO Thermostat / NO contacts

Product Description

The NVENT HOFFMAN ATEMNO temperature control switch features normally open (NO) quick-acting contacts. It is rated for 15A resistive and 2A inductive at 120VAC, and 10A resistive and 2A inductive at 250VAC. These thermostats extend fan life by managing operation time and improving electrical component efficiency by limiting environmental exposure.

• Bimetal temperature sensor
• Plastic housing
• Connections consist of press fit terminals for AWG 14 (.04 square inches)

Product Highlights

This temperature control switch is designed to regulate and monitor air temperature within enclosures, enhancing the lifespan and efficiency of electrical components.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: ATEMNO
• Country of Origin: Germany

Technical Specifications

• Type: Cooling Accessories
• Brand: nVent Hoffman
• Depth: 1.55 Inch
• Width: 1.31 in
• Height: 1.9 Inch
• Length: 2.3 Inch
• Voltage: 120 VAC, 150 VDC
• Amperage: 15 Amp
• Material: Plastic
• Sub Brand: Hoffman
• Applications: Controls and Drives; Power Distribution
• Catalog Number: ATEMNO
• Manufacturer: nVent
• Country of Origin: Germany
• Made in USA: No
• Finish: Matte
• Item Type: Cooling Accessories
• Size: 2.37 x 1.31 x 1.55 in
• Cross Reference Products: SKT011419NO
• Voltage Rating: 120/250 VAC (Resistive)
• Current Rating: 15 Ampere (Resistive)/2 Ampere (Inductive) at 120 VAC, 10 Ampere (Resistive)/2 Ampere (Inductive) at 250 VAC
• Wattage: 30 W (DC)
• Contact Configuration: NO, Quick Acting
• Resistive Current Rating: 10 Ampere at 250 VAC, 15 Ampere at 120 VAC
• Mounting: 35 MM W x 7.5 MM H DIN Rail, Panel
• Approval: UL (Canada and US), CSA, CE
• Control Application: Fan
• Enclosure Type: IP30
• Suitable For Use With: Fan Control
• Series: D85
• Specifications: 20 mA Max Load
• Dimensions: 2.37 in H x 1.13 in W x 1.55 in D
• UNSPSC: 39121300
• Vendor SKU: ATEMNO
• Standard & Approvals: cURus E164102 Listed, CSA 215952 Certified, CE Marked, EU Certified, RoHS Compliant
• Article Number: 71170
• EAN: 8713574255302
• Control Type: Enclosure Temperature Control
• Volts Max: 250VAC 24VDC
• Amps Resistive: 15A
• Set Point Range: 30-140deg F
• Contacts: 1-NO
• Housing: Plastic
