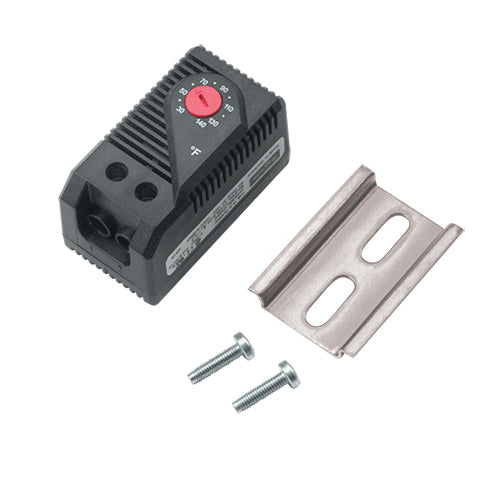

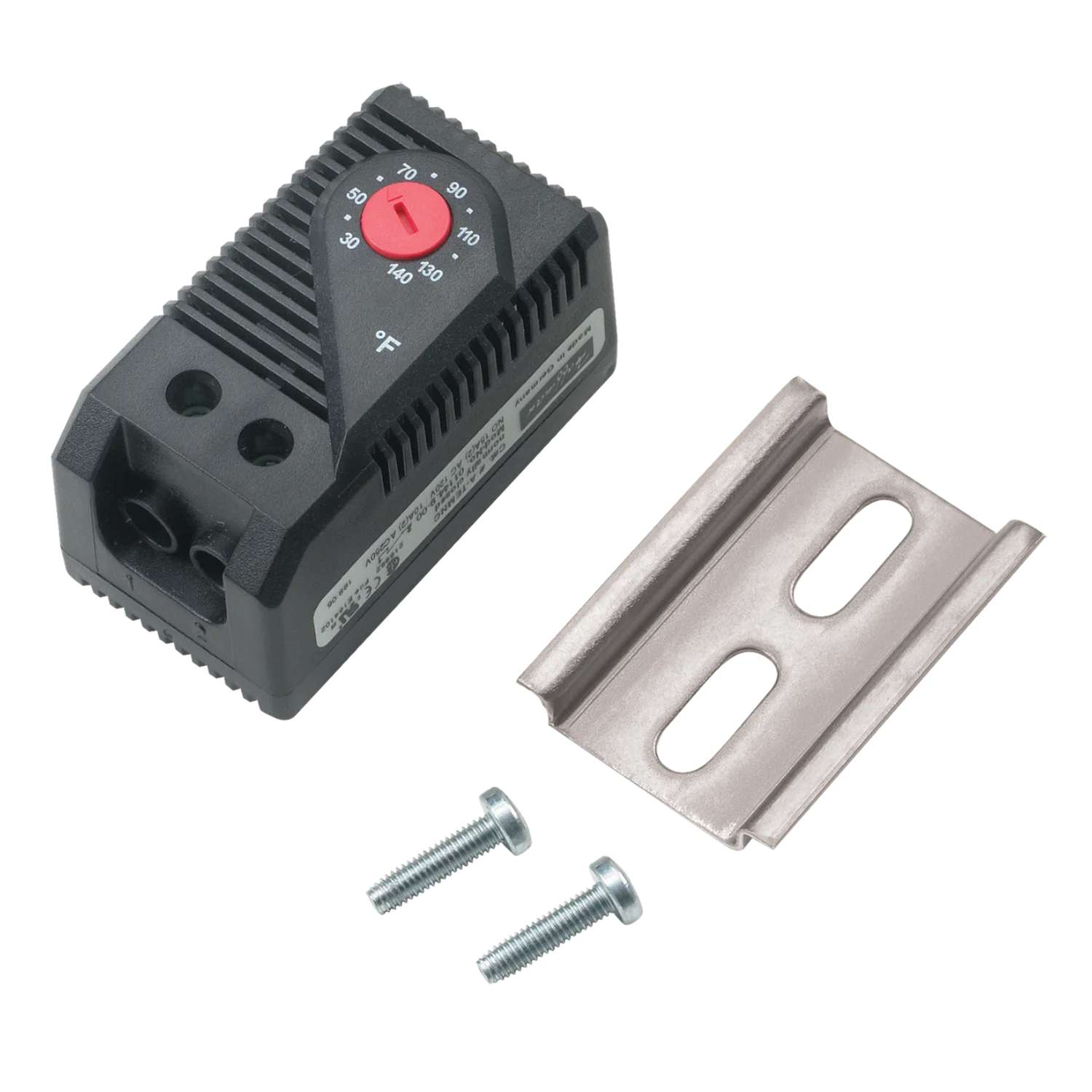

Nvent Hoffman ATEMNC Temperature Control Switch for Heaters 2.37x1.31x1.55

Product Description

The NVENT HOFFMAN ATEMNC temperature control switch is designed for heaters, with dimensions of 2.37x1.31x1.55 inches. These easy-to-install thermostats regulate and monitor air temperature in enclosures that contain heat-emitting equipment. They prolong heater and fan life by controlling operation time and increase electrical component working efficiency.

• Regulates and monitors air temperature
• Prolongs heater and fan life
• Increases electrical component working efficiency

Product Highlights

This temperature control switch is ideal for maintaining optimal temperature in enclosures with heat-emitting equipment.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: ATEMNC
• Country of Origin: Germany

Technical Specifications

• Color: Black
• Finish: Smooth Matte
• Material: Plastic
• Application: Controls and Drives; Power Distribution
• Catalog Number: ATEMNC
• Manufacturer: nVent
• Brand: nVent HOFFMAN
• Made in USA: No
• Item Type: Cooling Accessories
• Enclosure Type: IP30
• Series: D85
• Voltage Rating: 120/150 VAC/VDC
• Contact Configuration: NC
• Mounting Type: DIN Rail
• Current Rating: 15 Ampere (Resistive)/2 Ampere (Inductive) at 120 VAC, 10 Ampere (Resistive)/2 Ampere (Inductive) at 250 VAC
• Wattage: 30 W (DC)
• Resistive Current Rating: 10 Ampere at 250 VAC, 15 Ampere at 120 VAC
• Mounting: 35 MM W x 7.5 MM H DIN Rail, Panel
• Approval: UL (Canada and US), CSA, CE
• Control Application: Heater
• Amperage: 15 Amp
• Voltage: 120 VAC, 150 VDC
• Sub Brand: Hoffman
• Control Type: Enclosure Temperature Control
• Volts Max: 250VAC 24VDC
• Amps Resistive: 15A
• Set Point Range: 30-140deg F
• Contacts: 1-NC
• Housing: Plastic
