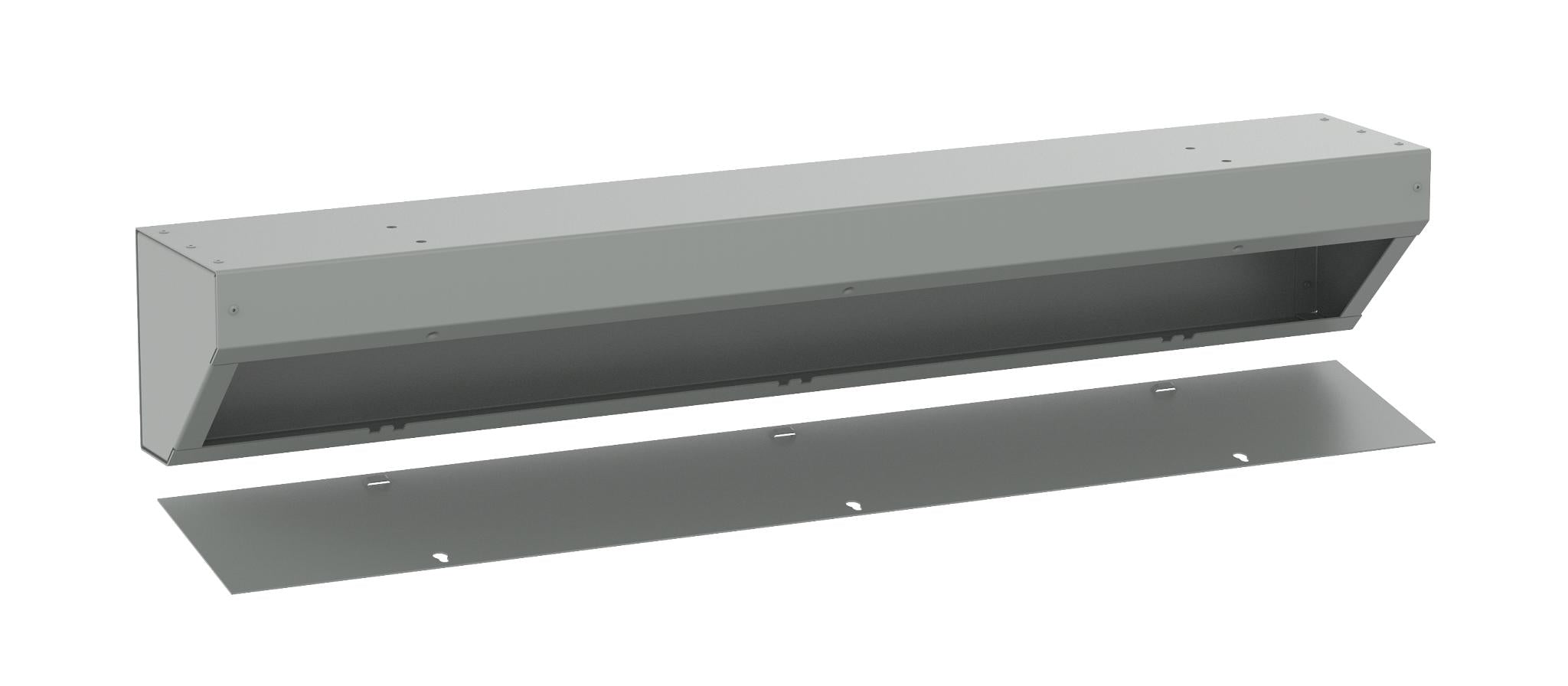

Nvent Hoffman AT8872 Angled Trough, NEMA Type 1, 8x 8x 72

Product Description

The NVENT HOFFMAN AT8872 angled trough, NEMA Type 1, eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner. It is suitable for wire distribution, making it a time and cost saving solution.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The NVENT HOFFMAN angled trough saves installation time and offers flexible wire distribution with its unique design and easy mounting.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT8872
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 72 Inch
• Width: 8 in
• Finish: Powder Coated
• Height: 8 Inch
• Length: 72 Inch
• Material: Steel
• Thickness: 1.9 mm
• Used With: 2 in Conduit
• Cover Type: 6-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Color Coding: ANSI 61
• Enclosure Type: IP30
• Enclosure Rating: IP30
• Number of Screws: 6
• Catalog Number: AT8872
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Maximum Conduit Size: 2 Inch
• Includes: (6) Cover Screw
• Applicable Standard: IEC 60529
• Gauge: 14 ga
• Article Number: 35602
• Max Conduit Size: 2in
• Cover Screw Quantity: 6
• Bulletin Number: F40AT
• Specification Met: Nema
• Approximate Depth: 8 in
• Approximate Height: 8 in
• Approximate Width: 72 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT8872
• UNSPSC: 39131714
• ECCN: EAR99
• Size: HxD: 8 x 8 in.
• Knockouts: (6) Sides
