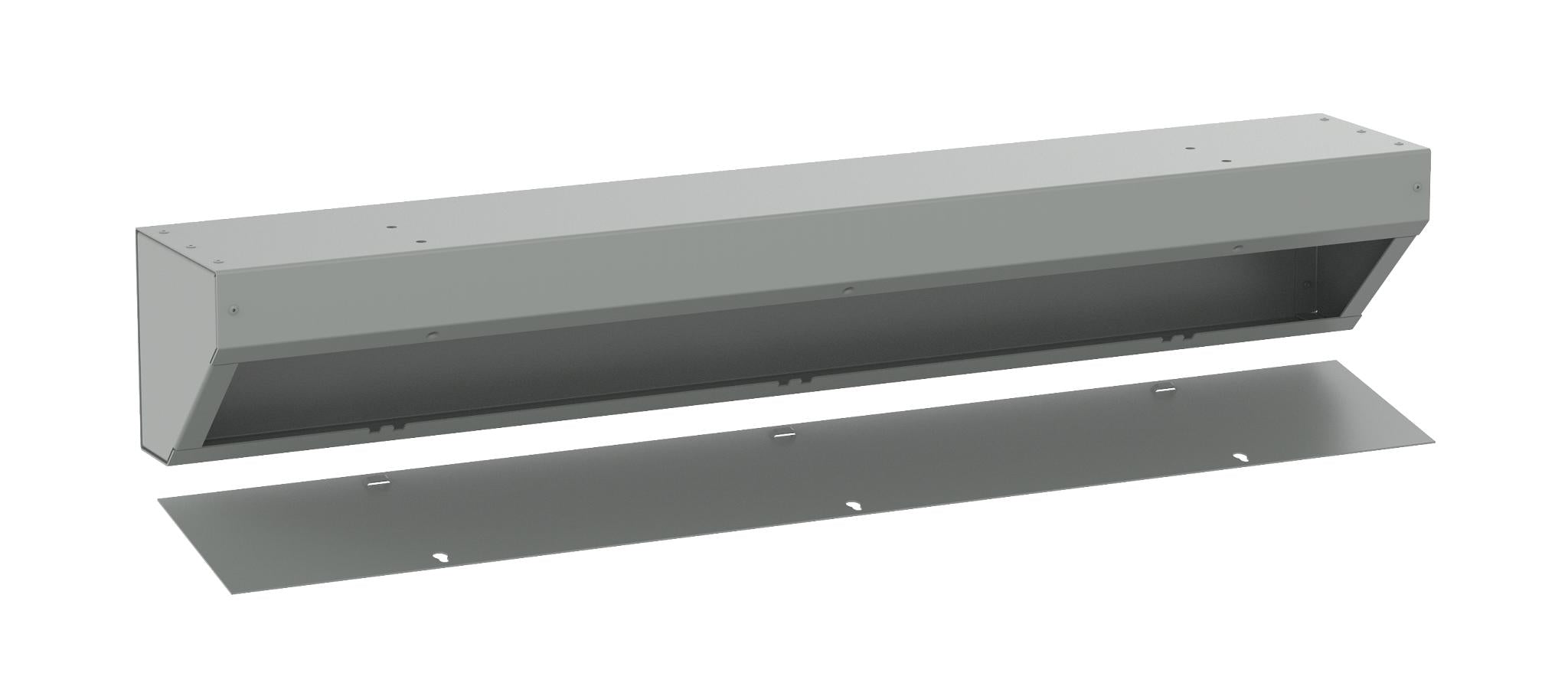

Nvent Hoffman AT8848 Angled Trough, NEMA Type 1, 8x 8x 48

Product Description

The NVENT HOFFMAN AT8848 angled trough, Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner. It is suitable for wire distribution and power distribution applications.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The angled trough is shipped completely assembled and is easy to mount via holes on the back of the enclosure. It is NEMA Type 1 rated.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT8848
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent HOFFMAN
• Color: ANSI 61 Gray
• Depth: 48 Inch
• Width: 8 in
• Finish: Polyester Powder Paint
• Height: 8 Inch
• Length: 48 Inch
• Material: Steel
• Thickness: 1.9 mm
• Used With: 2 in Conduit
• Cover Type: 4-Screw
• Number of Screws: 4
• Catalog Number: AT8848
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• UPC: 783510355975
• GTIN: 00783510355975
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: Angled Trough/Bulletin F40AT Series
• Item: Wiring Trough
• Enclosure: NEMA 1, IP30
• Approval: UL 870, cUL, CSA C22.2
• RoHS/REACH Compliant: True
• Maximum Conduit Size: 2 Inch
• Applicable Standard: IEC 60529, EEMAC Type 1
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT8848
• Gauge: 14 ga
• NEMA Enclosure Type: 1
• Article Number: 35597
• Max Conduit Size: 2in
• Cover Screw Quantity: 4
• Bulletin Number: F40AT
• Vendor SKU: AT8848
• UNSPSC: 39131714
• IP/NEMA Rating: NEMA 1
