Nvent Hoffman AT8836 Angled Trough, NEMA Type 1, 8x 8x 36

Product Description

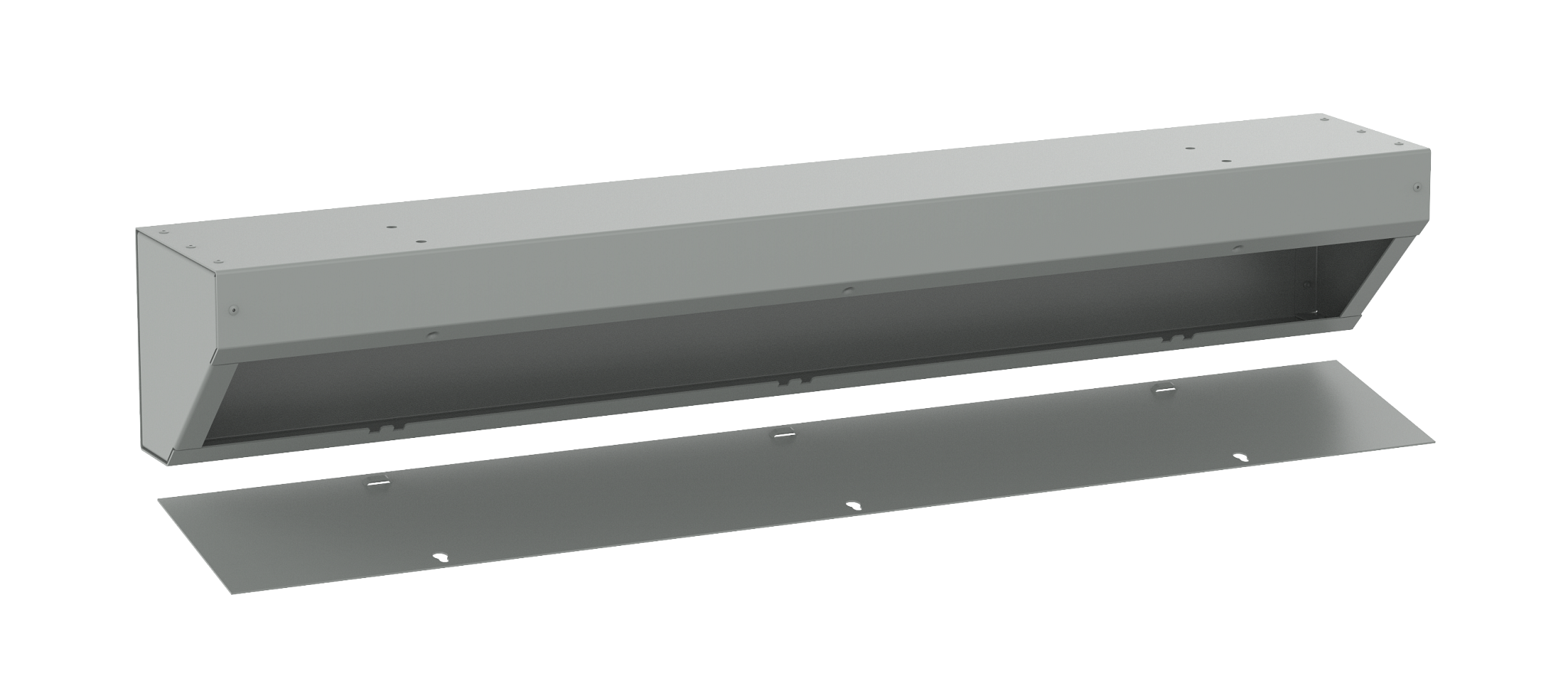

The NVENT HOFFMAN AT8836 angled trough, NEMA Type 1, eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner. It is suitable for wire distribution applications.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The angled trough saves time and costs, offering flexible wire distribution and easy mounting.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT8836
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 36 Inch
• Width: 8 in
• Finish: Polyester Powder Paint
• Height: 8 Inch
• Length: 36 Inch
• Material: Steel
• Thickness: 14ga
• Used With: 2 in Conduit
• Cover Type: 3-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Number of Screws: 3
• Catalog Number: AT8836
• Manufacturer: nVent
• Country of Origin: Mexico
• Application: Power Distribution
• UPC: 783510355968
• GTIN: 00783510355968
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Enclosure: NEMA 1, IP30
• Approval: UL 870, cUL, CSA C22.2
• RoHS/REACH Compliant: True
• Maximum Conduit Size: 2 Inch
• Applicable Standard: IEC 60529, EEMAC Type 1
• Gauge: 14 ga
• NEMA Enclosure Type: 1
• Protection Rating: NEMA Type 1; IP30
• Color Code: ANSI 61
• Max Conduit Size: 2 in
• Cover Screw Quantity: 3
• Bulletin Number: F40AT
• Approximate Depth: 36 in
• Approximate Height: 8 in
• Approximate Width: 8 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT8836
• Standards: ARRA, Buy American Act Compliant, cUL Listed, CSA C22.2 No. 26, EU Certified, IEC 60529, UL 870
