Nvent Hoffman AT8824 Angled Trough, NEMA Type 1, 8x8x24

Product Description

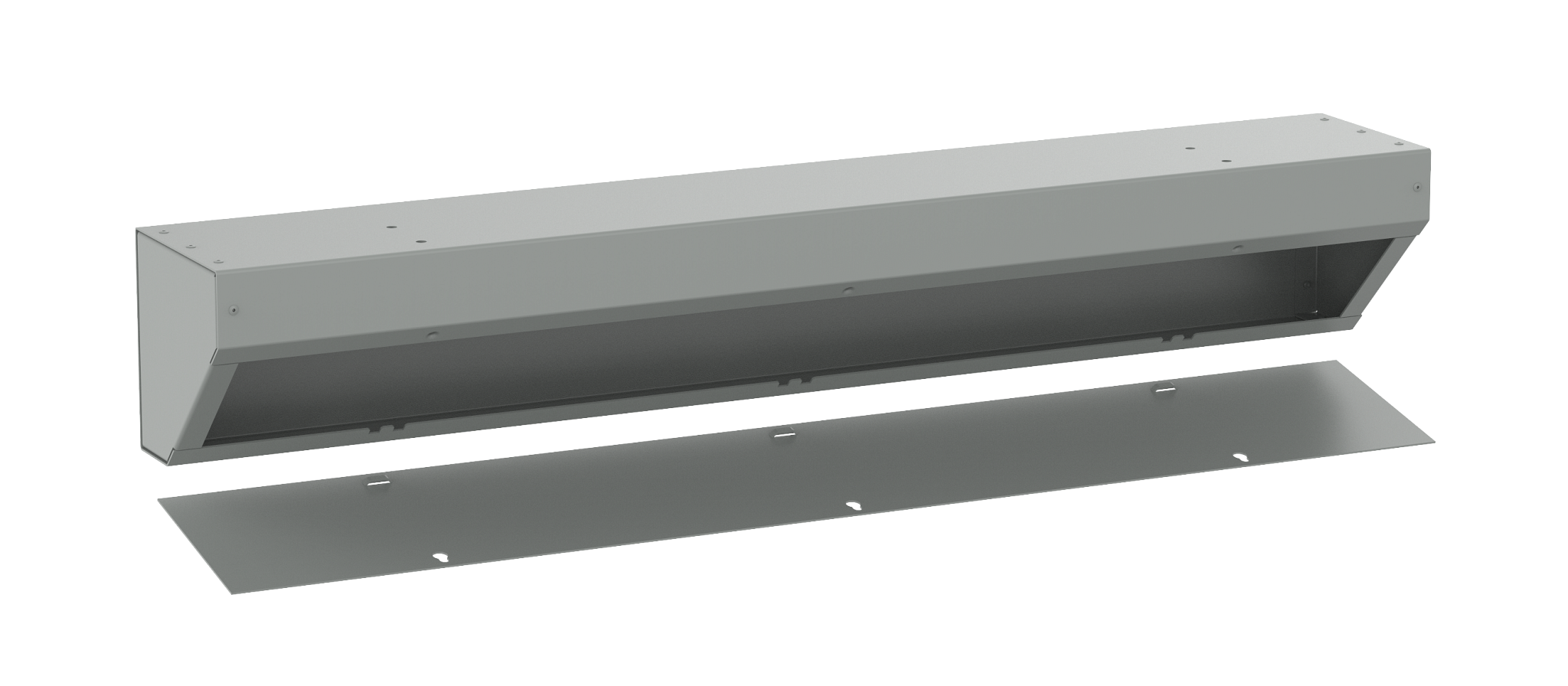

The NVENT HOFFMAN AT8824 angled trough, Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner. It measures 8x8x24 inches and is made of steel.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The NVENT HOFFMAN angled trough provides a time and cost-saving solution for contractors, offering easy mounting and requiring less wall space.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT8824
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 24 Inch
• Width: 8 in
• Finish: Powder Coated
• Height: 8 Inch
• Length: 24 Inch
• Material: Steel
• Thickness: 1.9 mm
• Used With: 2 in Conduit
• Cover Type: 2-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Color Coding: ANSI 61
• Number of Screws: 2
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• NEMA Rating: NEMA 1
• Series: F40AT
• Item: Wiring Trough
• Enclosure: NEMA 1, IP30
• Approval: UL 870, cUL, CSA C22.2
• RoHS/REACH Compliant: True
• Maximum Conduit Size: 2 Inch
• Applicable Standard: IEC 60529, EEMAC Type 1
• Approximate Depth: 24 in
• Approximate Height: 8 in
• Approximate Width: 8 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT8824
• Color: Gray
• Bulletin Number: F40AT
• Gauge: 14 ga
• ECCN: EAR99
• Standards: ARRA, Buy American Act Compliant, cUL Listed, CSA C22.2 No. 26, EU Certified, IEC 60529, UL 870
• Max Conduit Size: 2 in
• Max Conduit Size [Metric]: 51 mm
• Thickness [Metric]: 1.9 mm
• Height [Metric]: 22.8600 cm
• Length [Metric]: 63.5000 cm
• Width [Metric]: 22.8600 cm
• Item Group: F40AT
