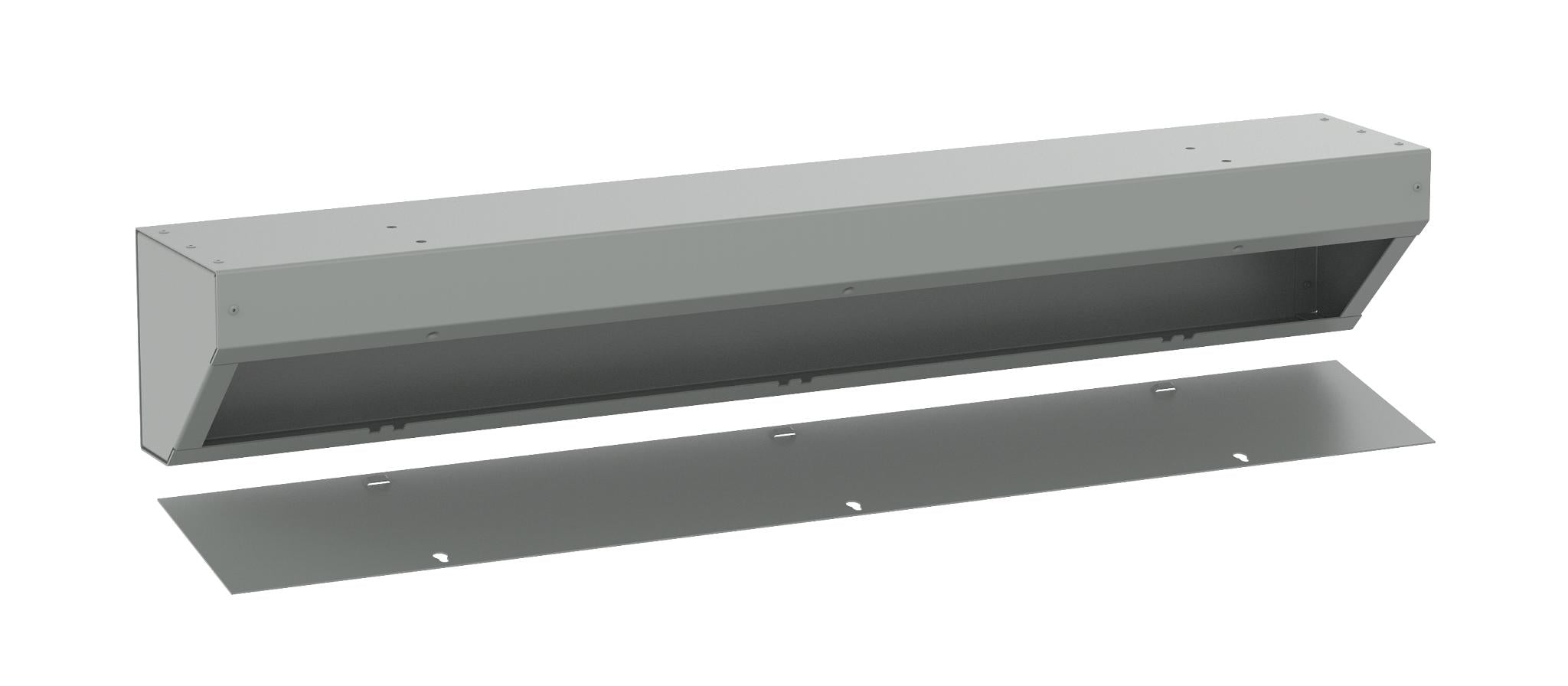

Nvent Hoffman AT6648 Angled Trough, NEMA Type 1, 6x6x48

Product Description

The NVENT HOFFMAN AT6648 angled trough, NEMA Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner.

• Flexible install allows conduit runs through six sides of enclosure, including the front.
• Cleaner appearance requiring less real estate on the wall.
• Uniquely designed cover is removable and easy to assemble with half the number of screws.

Product Highlights

This angled trough provides a time and cost-saving solution for wire distribution with its flexible installation and easy assembly.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT6648
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Color: ANSI 61 Gray
• Depth: 48 Inch
• Width: 6 in
• Finish: Powder Coated
• Height: 6 Inch
• Length: 48 Inch
• Material: Steel
• Thickness: 16ga
• Used With: 1-1/4 in Conduit
• Cover Type: 4-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Color Coding: ANSI 61
• Number of Screws: 4
• Catalog Number: AT6648
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: For applications above, below or to the side of electrical panels in electrical rooms, above modular ceiling
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Enclosure: NEMA 1
• Approval: UL 870, CUL, CSA C22.2
• Wire Size: 16 AWG
• Maximum Conduit Size: 1.25 Inch
• Max Conduit Size: 1.25in
• Cover Screw Quantity: 4
• Bulletin Number: F40AT
• ECCN: EAR99
• IP/NEMA Rating: NEMA 1
• Approximate Depth: 6 in
• Approximate Height: 6 in
• Approximate Width: 48 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT6648
• Standard & Approvals: ARRA, Buy American Act Compliant, cUL Listed, CSA C22.2 No. 26, EU Certified, IEC 60529, UL 870
• Harmonization Tariff Schedule Code: 7326908688
• UNSPSC: 39131714
