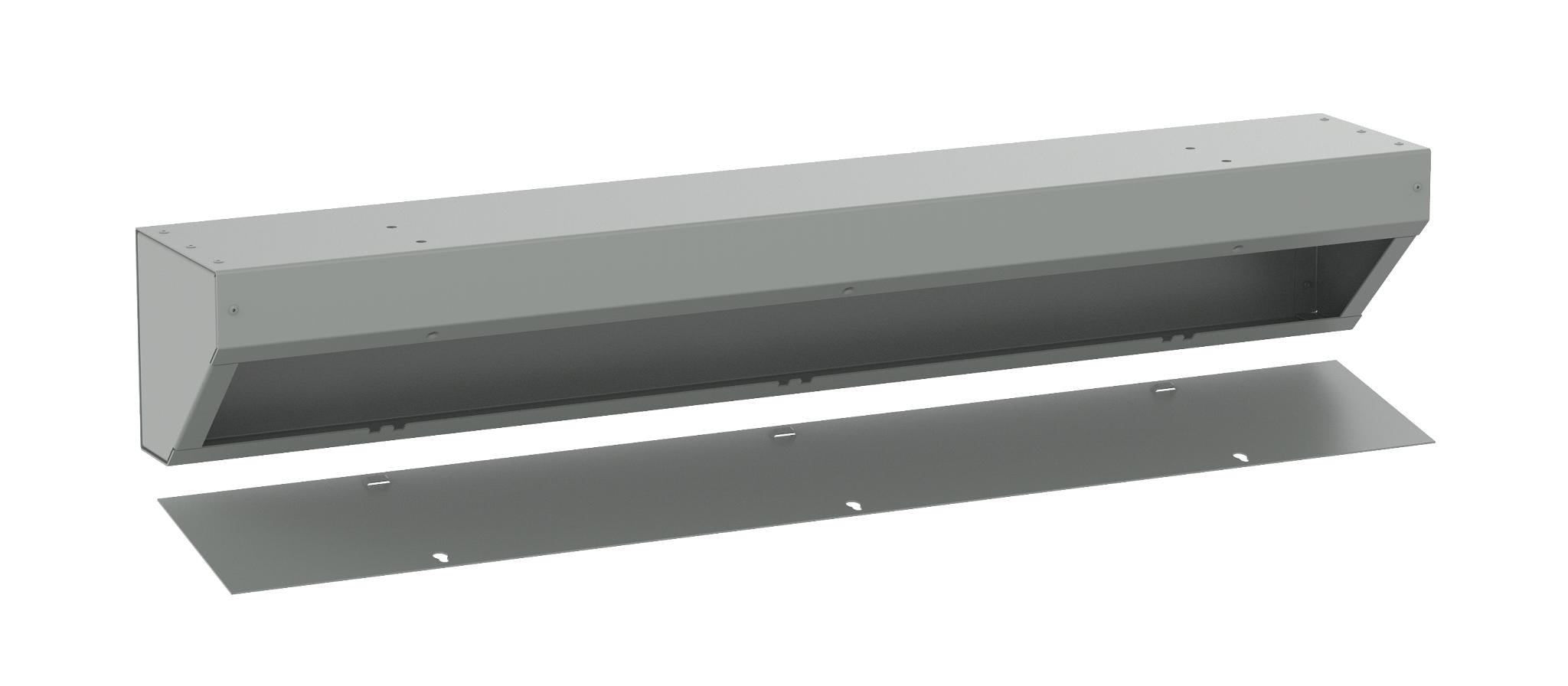

Nvent Hoffman AT6636 Angled Trough, NEMA Type 1, 6x 6x 36

Product Description

The NVENT HOFFMAN AT6636 angled trough, NEMA Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

The angled trough provides a time and cost saving solution for contractors, offering flexibility for wire distribution.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT6636
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Color: ANSI 61 Gray
• Depth: 36 Inch
• Width: 6 in
• Finish: Powder Coated
• Height: 6 Inch
• Length: 36 Inch
• Material: Steel
• Thickness: 1.52 mm
• Used With: 1-1/4 in Conduit
• Cover Type: 3-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Color Coding: ANSI 61
• Number of Screws: 3
• Manufacturer: nVent
• Country of Origin: Mexico
• Made in USA: No
• Application: Power Distribution
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Enclosure: NEMA 1
• Approval: UL 870, CUL, CSA C22.2
• Maximum Conduit Size: 1.25 Inch
• Article Number: 35588
• Cover Screw Quantity: 3
• Protection Rating: NEMA Type 1; IP30
• External Height - Metric: 152mm
• External Width - Metric: 152mm
• Length - Metric: 914.4mm
• External Height - Imperial: 6"
• External Width - Imperial: 6"
• Length - Imperial: 3ft
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• Bulletin Number: F40AT
