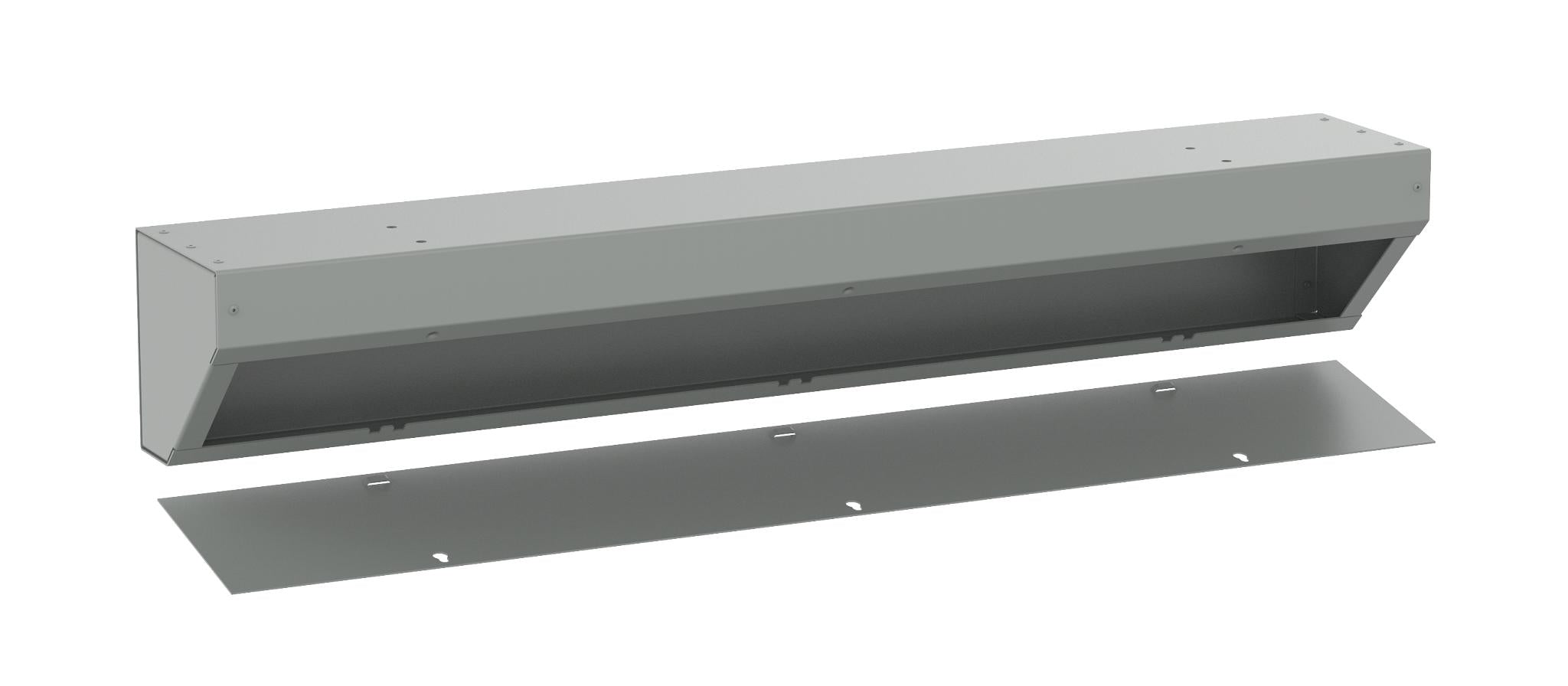

Nvent Hoffman AT6618 Angled Trough, NEMA Type 1, 6x6x18

Product Description

The NVENT HOFFMAN AT6618 angled trough, Type 1, cuts total installation time by 80%. It eliminates the need for costly 90-degree conduit bends and offers flexibility for wire distribution, making it a time and cost saving solution. The unique design allows conduit runs through the front of the enclosure and can be mounted in any corner.

• Flexible install allows conduit runs through six sides of enclosure, including the front
• Cleaner appearance requiring less real estate on the wall
• Uniquely designed cover is removable and easy to assemble with half the number of screws

Product Highlights

This angled trough provides a time and cost-saving solution for contractors, offering flexibility for wire distribution and easy mounting.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: AT6618
• Country of Origin: Mexico

Technical Specifications

• Type: Angled
• Brand: nVent Hoffman
• Depth: 18 Inch
• Width: 6 in
• Finish: Powder Coated
• Height: 6 Inch
• Length: 18 Inch
• Material: Steel
• Thickness: 1.52 mm
• Used With: 1-1/4 in Conduit
• Cover Type: 2-Screw
• Applications: For Wire Distribution, Making it a Time and Cost Saving Solution for Contractors
• Color Coding: ANSI 61
• Enclosure Type: IP30
• Enclosure Rating: IP30
• Number of Screws: 2
• Catalog Number: AT6618
• Manufacturer: nVent
• Application: Power Distribution
• Item Type: Trough
• NEMA Rating: NEMA 1
• Series: F40AT
• Item: Wiring Trough
• Maximum Conduit Size: 1.25 Inch
• Includes: (2) Cover Screw
• Applicable Standard: IEC 60529
• Approximate Depth: 18 in
• Approximate Height: 6 in
• Approximate Width: 6 in
• Configuration: With Knock-Outs
• Manufacturer Part Number: AT6618
• Bulletin Number: F40AT
• Knockouts: (6) Sides
