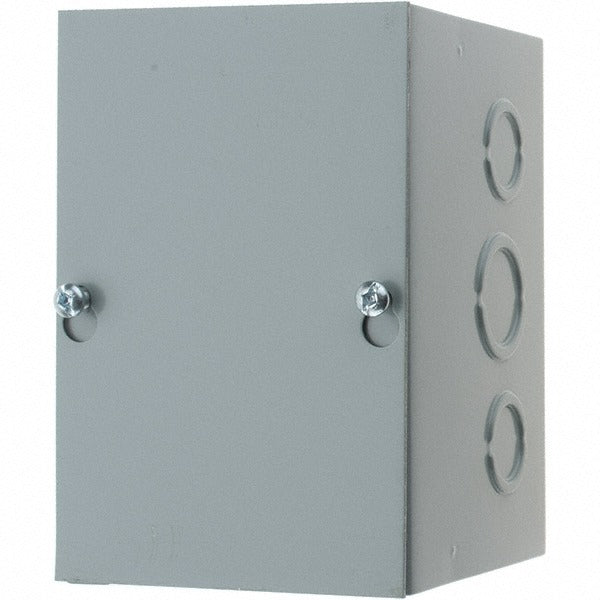

Nvent Hoffman ASE6X4X4 Junction Box Steel Nema 1

Product Description

The NVENT HOFFMAN ASE6X4X4 is a NEMA 1 steel junction box enclosure designed for indoor electrical installations. Measuring 6 inches high, 4 inches wide, and 4 inches deep, it provides a secure housing for wire splices, terminal blocks, and electrical connections in light-duty applications. The enclosure is fabricated from 12, 14, or 16 gauge steel and finished with a gray polyester powder coat for durability. The screw flat cover is secured with two plated steel cover screws. Keyhole screw slots, knockouts, and mounting holes are included, making field installation straightforward for licensed electricians and maintenance technicians.

This enclosure is suited for residential and light commercial electrical applications where a NEMA 1 indoor-rated enclosure is required. Typical installations include junction protection in electrical rooms, mechanical spaces, and above-ceiling utility areas where exposure to moisture, dust, or corrosive environments is not a concern. The included knockouts accommodate standard conduit fittings, and the mounting holes allow direct fastening to walls, panels, or structural members.

Key Features

• NEMA 1 rating for general-purpose indoor use
• Steel construction with gray polyester powder coat finish
• Screw flat cover with two included plated steel cover screws
• Pre-punched knockouts and mounting holes for fast field installation
• Keyhole screw slots for easy panel mounting
• UL Listed (File E27525) and cUL Listed to CSA C22.2 No. 40

Compatibility

Designed as an OEM-style NEMA 1 indoor junction box for general electrical enclosure applications where a 6 x 4 x 4 inch steel box is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before opening or wiring the enclosure. Use appropriate conduit connectors at knockouts to maintain the enclosure integrity. This enclosure is rated for indoor use only and must not be installed in wet, damp, or corrosive environments.
