Nvent Hoffman Ase18x18x4 Screw-Cover Pull Box 18 inches x 18 inches x 4 inches

Product Description

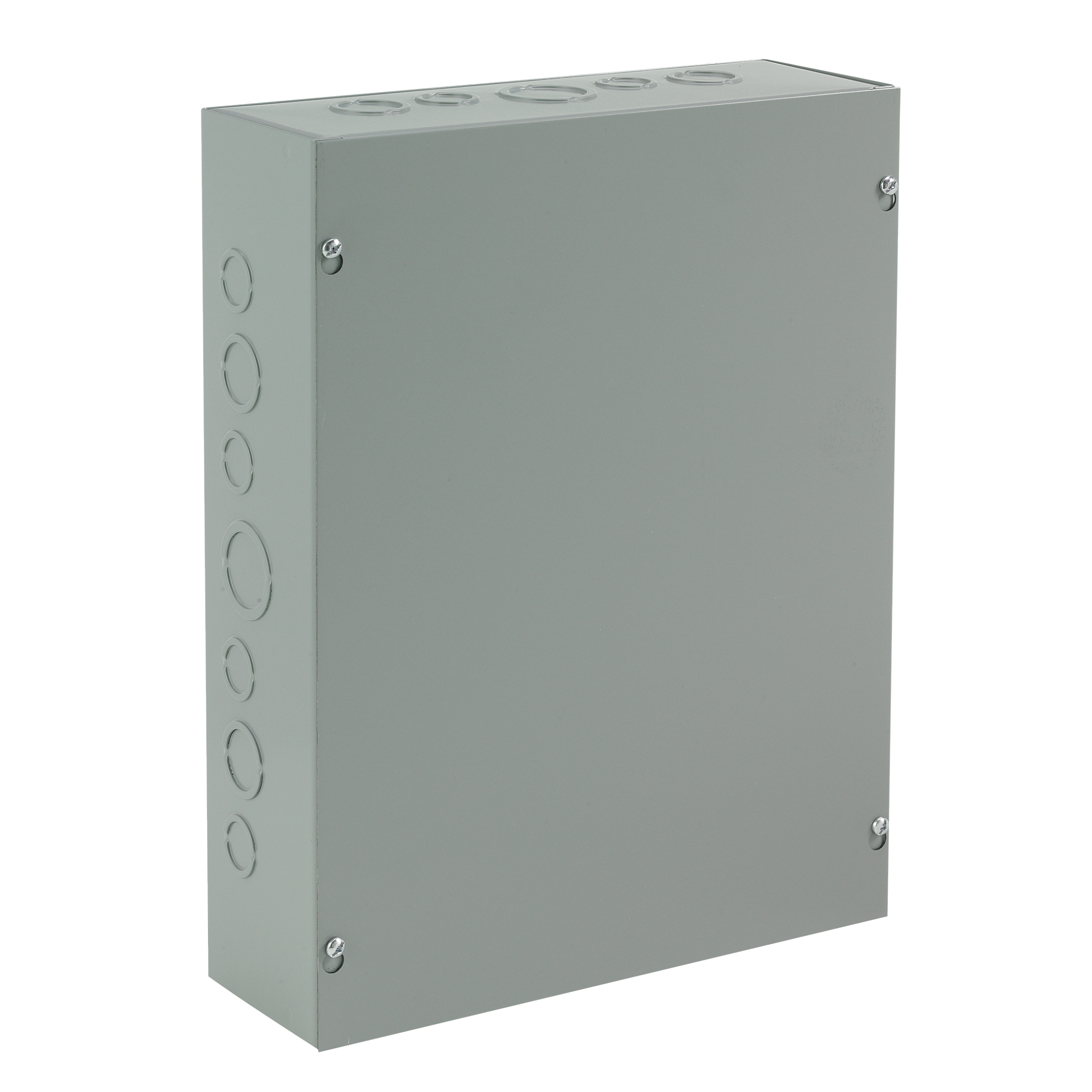

The NVENT HOFFMAN ASE18X18X4 is a screw-cover pull box designed for use in commercial and general industrial applications that require a junction or pull box. This Type 1 enclosure is made of steel with a gray, powder-coated finish and is available with knockouts. It measures 18 x 18 x 4 inches.

• Features unique keyhole screw slots in the cover.
• Available with or without knockouts.
• Flat, removable covers fastened with plated steel screws.

Product Highlights

This NVENT HOFFMAN pull box provides a robust solution for junction and pull box requirements in commercial and industrial settings.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: ASE18X18X4
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ASE18X18X4
• Size: 18.00x18.00x4.00 in
• Brand: nVent Hoffman
• Color: Gray
• Depth: 4 in
• Gauge: 16, 14 or 12
• Style: Painted
• Width: 18 in
• Finish: Powder Coated
• Height: 18 in
• Material: Steel
• Sub Brand: Hoffman
• Cover Type: Flat, Screw-On
• Product UPC: 78351046890
• Applications: Use in Commercial and General Industrial Applications that Require a Junction or Pull Box
• Color Coding: ANSI 61
• Body Thickness: 1.52 mm
• Manufacturer: nVent
• Country of Origin: Mexico
• Application: Power Distribution
• Knockouts: Yes
• Mild Steel: Yes
• UPC: 783510468903
• GTIN: 00783510468903
• Item Type: Pull and Junction Boxes
• Cable Entry Size: (16) 3/4 to 1 in Knockout, (16) 1/2 to 3/4 in Knockout, (4) 1 to 1-1/4 in Knockout Bottom/Sides/Top
• Mounting Type: Flush
• Series: A90P1
• NEMA Rating: 1 Indoor, electrical protection
• Material Specification: 16/14/12 Gauge
• Enclosure: NEMA 1, IP30
• Knockout Location: (18) Sides, (18) Ends
• Number of Knockouts: 36
• Knockout Size: (8) (1/2 to 3/4 Inch), (8) (3/4 to 1 Inch), (2) (1 to 1-1/4 Inch), Concentric Knockout Sides, (8) (1/2 to 3/4 Inch), (8) (3/4 to 1 Inch), (2) (1 to 1-1/4 Inch) Concentric Knockout Ends
• Approval: UL 50/50E, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• Number of Cover Screws: 4
• Article Number: 46890
• Height (H): 18in
• Width (W): 18in
• Depth (D): 4in
• Door Thickness: 16ga
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Knockout Pattern Along A Sides: A-B-C-D-E-F-G-H-I
• Knockout Pattern Along B Sides: A-B-C-D-E-F-G-H-I
• Standards: CSA Certified, cUL, IEC, UL Listed
• Metal Gauge: 12/14/16 ga
• Enclosure Cover Type: Screw On
• Enclosure NEMA Rating: 1
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 18 in
• Enclosure Cover Features: Screw Latch
• Knockouts / No Knockouts: Knockouts
• Item - Electrical Enclosure: Enclosure
• Cover Mounting: Screw Cover
