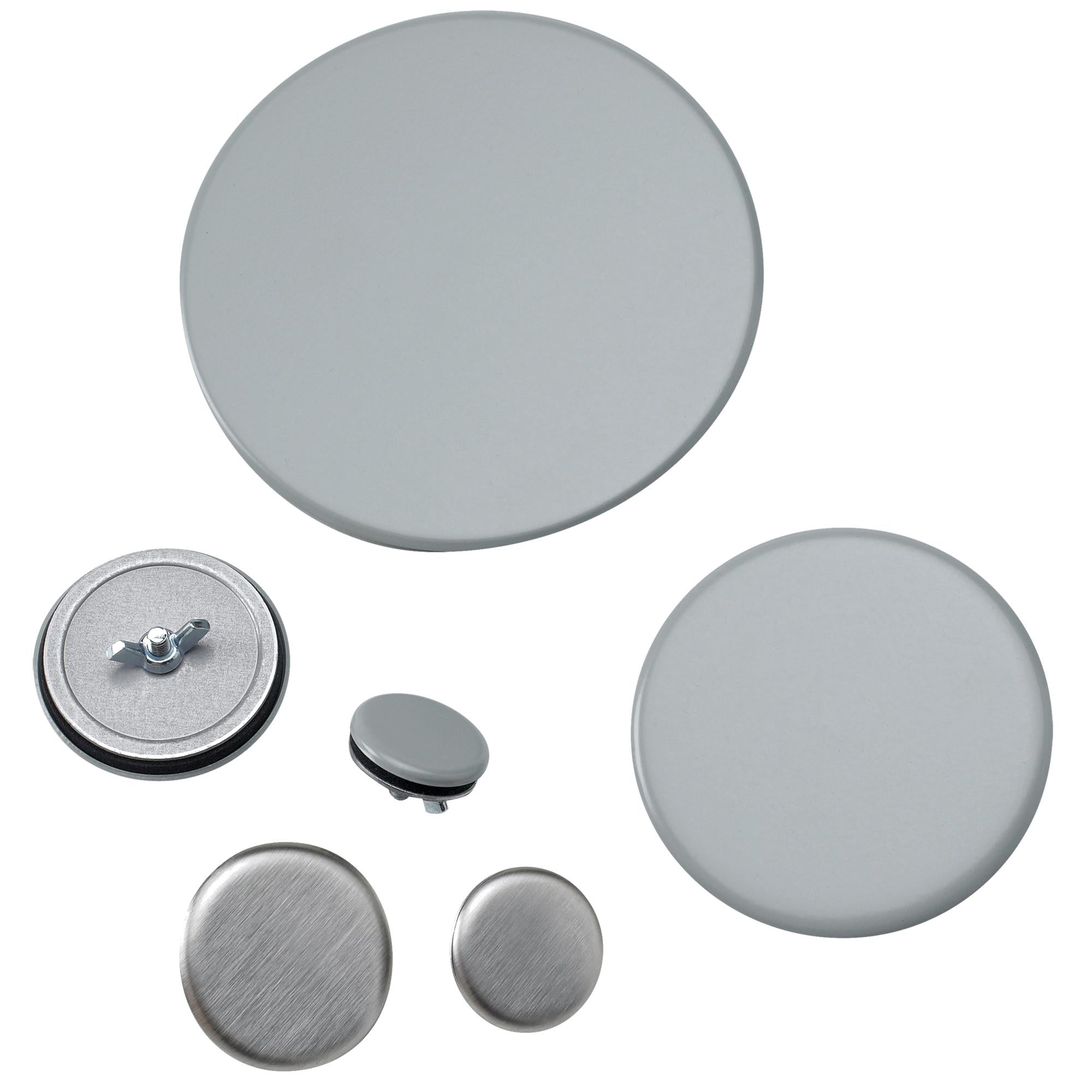

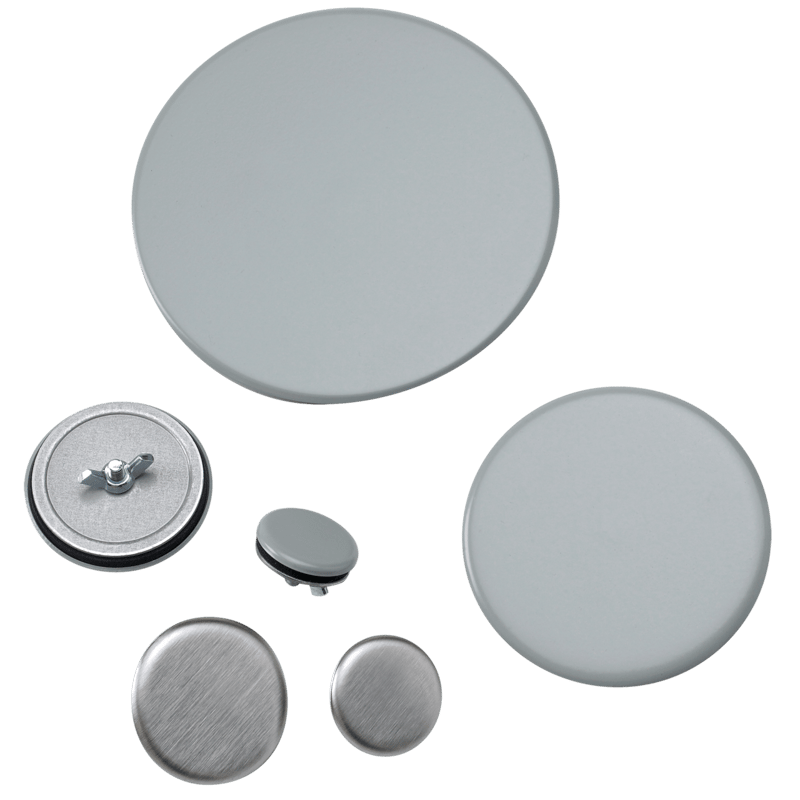

nVent HOFFMAN AS200 Enclosure Hole Seal, 2 in Conduit, 2-1/2 in Hole

Product Description

The nVent HOFFMAN AS200 is a practical solution for sealing extra pushbutton holes, conduit openings, and knockout openings. This hole seal ensures protection against dust, dirt, oil, and water. It maintains the enclosure's Type ratings 3R, 4, and 12 when correctly installed.

• Suitable for any size or shape hole from .19-in. to 2.5-in. diameter.
• Compatible with enclosure walls up to .31-inch thick.
• Made from mild steel with a gray powder-coated finish.

Product Highlights

The AS200 is designed for use in various applications, including power distribution and control systems. It's ideal for environments requiring a secure seal against contaminants.

Product Information

Standard Information

• Catalog Number: AS200
• Manufacturer: nVent

Technical Specifications

• Material: Mild Steel
• Color: Gray
• Dimensions: 3 inches diameter
• Hole Size: 2.5 inches diameter
• Conduit Size: 2 inches
• Weight: 0.3 lbs
• Application: Power distribution, controls, and drives
• Country of Origin: Mexico
