Nvent Hoffman A8R64 8 inches x 6 inches x 4 inches Enclosure, Type-3R w/ Screw Cover, Steel

Product Description

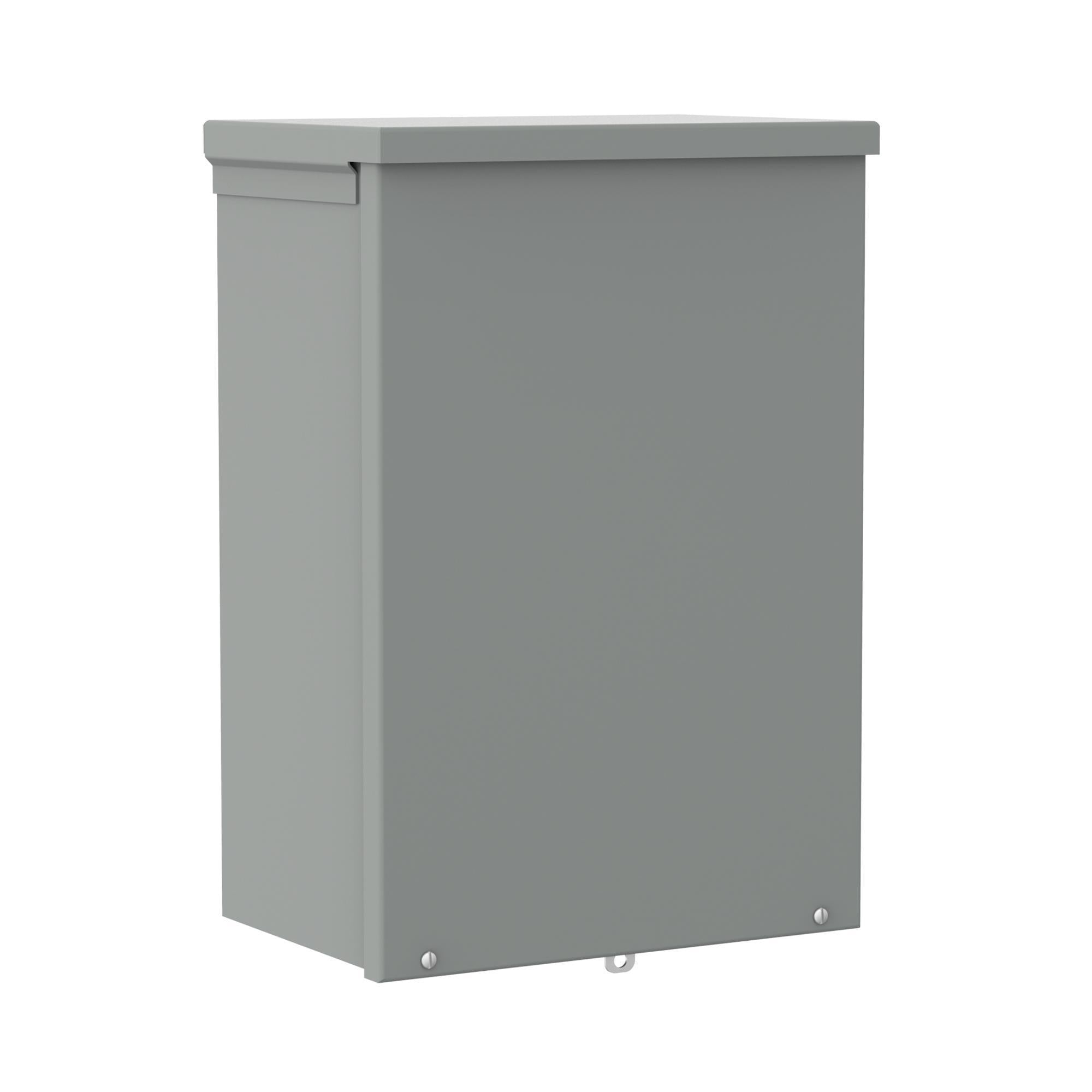

The NVENT HOFFMAN A8R64 Drip-Shield Screw-Cover, Type 3R enclosure is used as a wiring or junction box to protect controls in outdoor applications requiring protection from rain, sleet, snow, or dripping water. It features knockouts for cable entry and embossed mounting holes for wall mounting. The enclosure is made of galvanized steel with a gray finish.

• Drip shield top and seam-free sides, front, and back protect from the elements.
• Slip-on removable cover fastened with plated steel screws along bottom edge.
• Knockouts in bottom of 16 and 14 gauge enclosures.

Product Highlights

The NVENT HOFFMAN A8R64 enclosure provides a secure housing for electrical components in demanding environments. Its robust construction and protective features ensure reliable performance in outdoor settings.

Product Information

Standard Information

• Brand: NVENT HOFFMAN
• Manufacturer Part Number: A8R64
• Country of Origin: Mexico

Technical Specifications

• Type: Screw-Cover,Type 3R
• Brand: nVent Hoffman
• Depth: 4 Inch
• Width: 6 in
• Finish: Galvanized, Polyester Powder Painted
• Height: 4.3 Inch
• Length: 8.2 Inch
• Material: Steel
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Enclosure: 3R
• Sub Brand: Hoffman
• Applications: Power Distribution
• Color Coding: ANSI 61
• Body Thickness: 1.52 mm
• Knockouts: Yes
• Cable Entry Size: (1) 3/4 to 1 in, (2) 1/2 to 3/4 in Knockout Bottom
• Lock: Padlock
• Mounting Type: Wall
• Series: A90S3
• Cover Type: Screw
• NEMA Rating: NEMA 3R/IP32
• Material Specification: 16/14/12 Gauge
• Number of Knockouts: 3
• Knockout Size: (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Bottom
• Service Type: Outdoor
• Approval: UL 50/50E, CUL, CSA C22.2
• Applicable Standard: IEC 60529
• ROHS Compliant: True
• IP Rating: 32
• Metal Gauge: 12/14/16 ga
• Enclosure Cover Type: Screw On
• Solid / Clear Cover: Solid
• Closure Method: Screws
• Enclosure Cover Features: Screw Latch
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 6 in
• Knockouts / No Knockouts: Knockouts
• Item - Electrical Enclosure: Enclosure
• Knockout Location: (3) Bottom
• Color Code: ANSI 61
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: B-C-D
• Mounting: 1.06in
• Body Style: A
• Bulletin Number: A90S3
• Cover Mounting: Screw Cover
• ECCN: EAR99
• UNSPSC: 39121303
